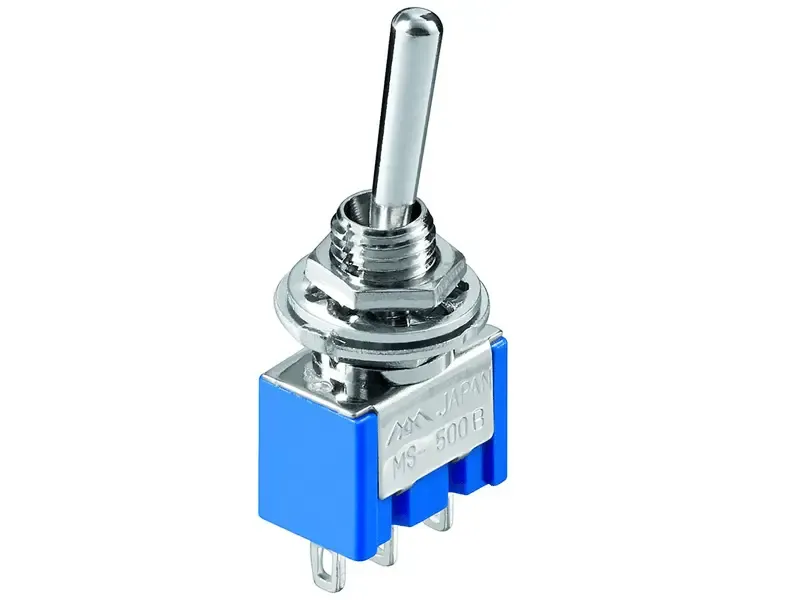

Miyama-Toggle Switch MS-500B SP Momentary ON-(ON)

Product No.:
my-ms500b
In stock. Delivery time depends on the destination country* In stock. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.006 kg per piece
2,95 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
EU legal guarantee notice
Description
  • Type: Toggle Switch
  • Version: SPSD Momentary, ON-(ON)
  • Assembly Ø: 6.2 mm
  • Rating: 3 A / 250VAC, 6 A / 125VAC
  • Termination Style: solder-lugs
  • Size: 13 x 7,8 x 10,4 mm
Manufacturer
Herstellerinformationen | Manufacturer Information
Miyama Electronics
145-0064, 4-7-1 Kami-ikedai
Ohta-ku, Tokyo
Japan, https://miyama-electric.com

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de
