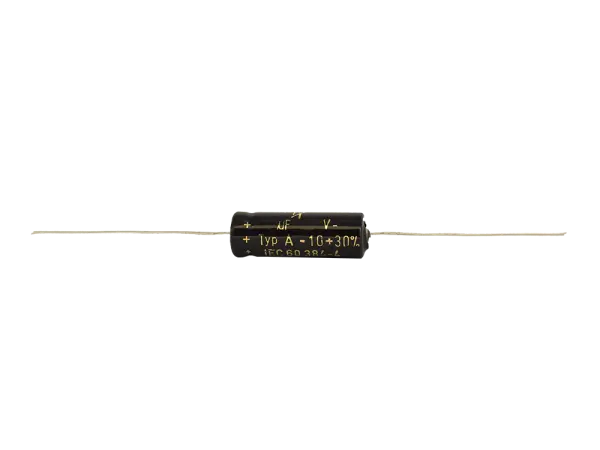

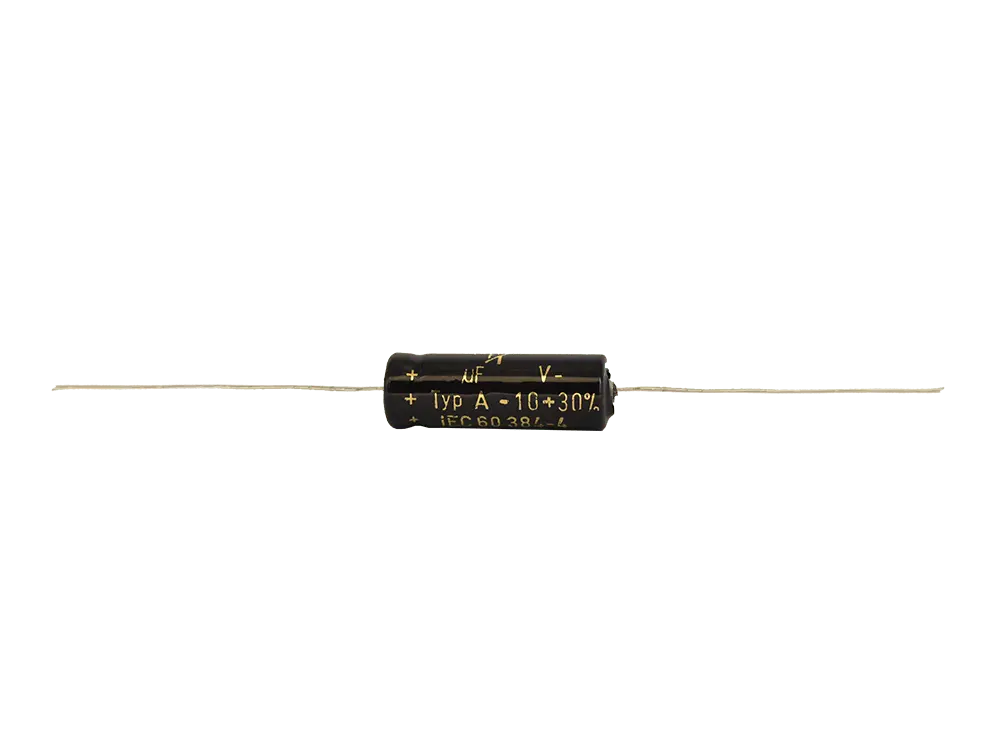

F+T 22 µF @ 450 Volt, axial

Rectifier
An indirectly heated diode intended for rectification of commercial-frequency alternating current. It has a 140 mA maximum output and filament voltage of 5 V and a filament current of 2 A +/- 0.2 A.

Files:

• Datasheet

Optocoupler. Vibrato LDR for Fender Amps.

• Optical side indicated by the dot

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

• Type: Electrolytic can capacitor
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 12,5 mm x 21 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 220 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 16,5 mm x 26 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 100 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 10 mm x 12 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 8 mm x 11 mm
• Termination Style: radial
• Grid: 3,5

Images are for reference only. See Product Specifications

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

• Type: Electrolytic can capacitor
• Capacitance: 4700 µF
• Voltage Rating: 16 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 16 mm x 32 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 1000 µF
• Voltage Rating: 25 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 19 mm
• Termination Style: radial
• Grid: 5

Images are for reference only. See Product Specifications

• Type: Film trimmers
•   horizontal, 240°
• Power Rating: 0,1 W linear
• Voltage Rating: max. 200 VDC
• Ø: 10,3 mm

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS
