Main page » Components » Cables + Wires » Guitar/Bass Wires » Sommer Cable SC-THE SPIRIT XXL, black transparent - 10 Meter

Sommer Cable SC-THE SPIRIT XXL, black transparent - 10 Meter

Mobile Preview: Sommer Cable SC-THE SPIRIT XXL, black transparent - 10 Meter

Sommer Cable SC-THE SPIRIT XXL, black transparent - 10 Meter

Product No.:: so300-0071-10
: In stock. Delivery time depends on the destination country*
Stock:: 2 Pack
RoHs:: conform
Weight:: 0.6 kg per Pack

27,40 €
2,74 € per m

incl. VAT excl. Shipping costs

Pack:

Quantity

Bookmark

Ask Question

Description

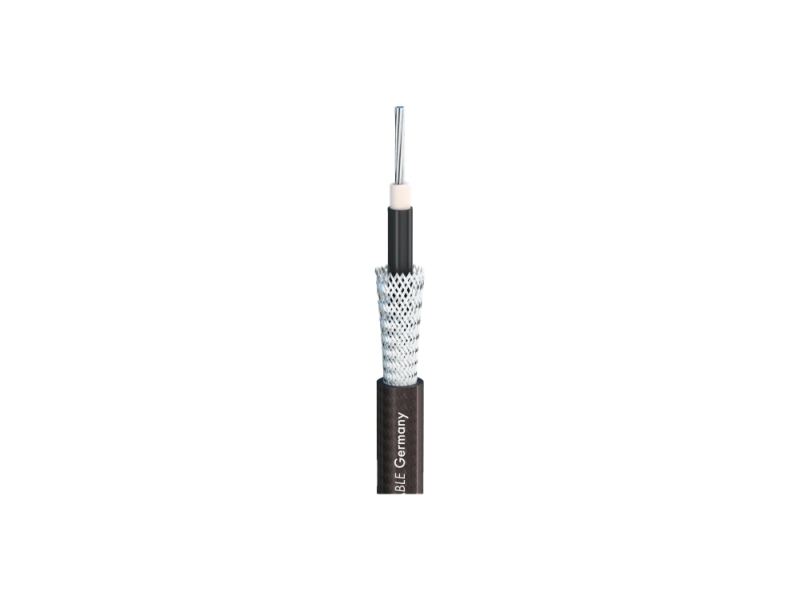

SOMMER CABLE SC-THE SPIRIT XXL - 10 Meter

This high end guitar cable is one of the most successful products of the past years and enjoys cult status with guitarists and bassists alike. Because of the excellent price-performance ratio, German and international trade press elected the SC-SPIRIT XXL test champion several times in a row.
The cable is robust and yet flexible, while its smoke-coloured jacket gives it a high recall value.
The shielding is ideal: The braiding is 95 % opaque and provides optical protection of 100 %, for even more safety.
A special lacquering makes the complex foamed polyethylene insulation very endurable and helps protect the excellent transmission properties for years to come.
The wire diameter of 0.75 mm² limits the loss typical for long distance guitar cables. There is hardly a guitar cable at a length of 10 m that sounds as good as the SC-SPIRIT XXL.
The customers consider the sound of the SC-SPIRIT XXL to be crystal-clear, clean and very neutral. It reproduces the impulsiveness of bass attacks exquisitely.
Caution: The black carbon shield between the braided shielding and the insulation is highly conductive. It must be removed before soldering to avoid short circuiting!

THE APPLICATION:

Enormously powerful and clear sound image for bass, guitar and keyboard
Double shielding due to the combination of copper braided shield and conductive carbon shielding
Transmission free of losses due to low capacity and large wire diameter
Very flexible and easy to wind due to the use of fine individual stranding
Durability and robustness due to a special high quality PVC-mixture for the jacket
High quality guitar and bass cable for studio and stage
Unbalanced cable for keyboards, samplers, mixing boards, etc.
Connection of stereo video recorder and DAT-recorder

TECHNICAL DATA:

Construction LI2Y(LS)CY 1x0,75mm²
Jacket, diameter PVC 6,8 mm
AWG 18
Inner conductors 1 x 0,75 mm²
Copper strand per conductor 42 x 0,15 mm
Conductor insulation Foam/skin-PE 3,1 mm
Shielding copper spiral tin-plated + semiconductor
Shielding factor 100 %
Temperature range min. -30 °C
Temperature range max. 70 °C
Fire load per m 0,26 kWh
Weight per 1 m 52 g
Color black transparent

ELECTRICAL DATA:

Capac. cond./shield. per 1 m 86 pF
Cond. resistance per 1 km 25 Ohm
Insulation resist. per 1 km > 50 MOhm

Unit: Price per 1 meter

Manufacturer

Herstellerinformationen | Manufacturer Information
SOMMER CABLE GmbH
Humboldtstraße 32 – 36
75334 Straubenhardt
Germany
http://sommercable.com
