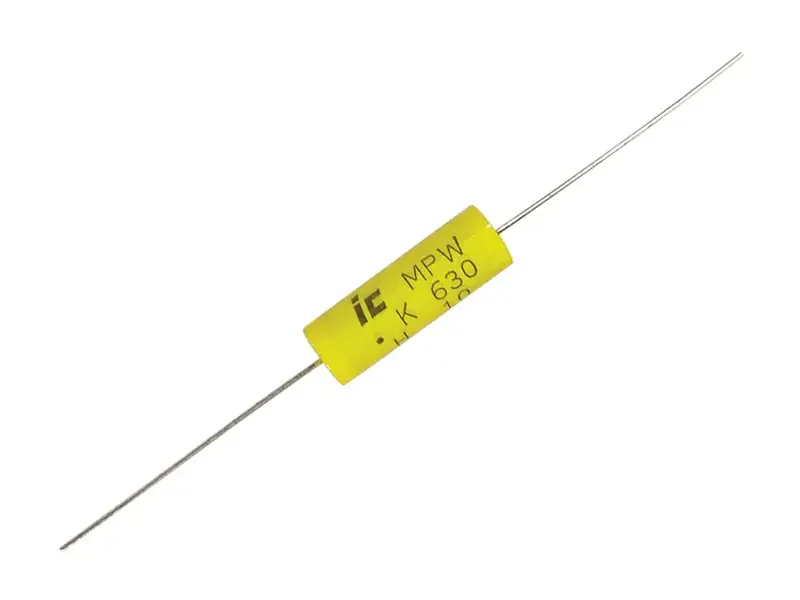

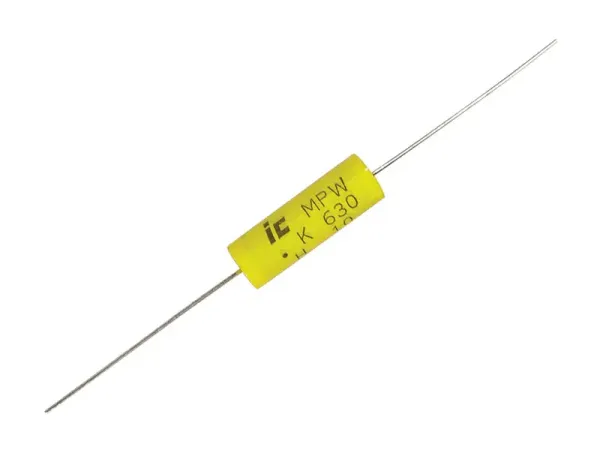

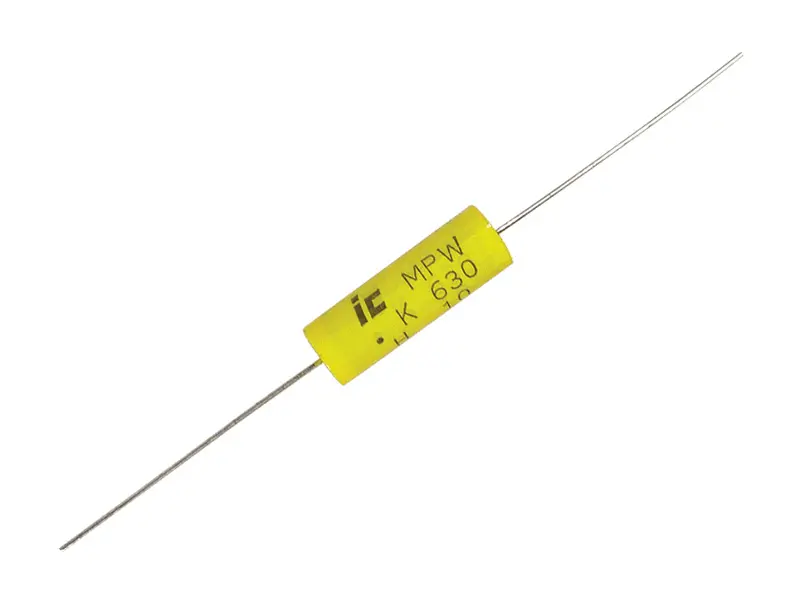

Polypropylene Capacitor, axial, 630V, 0.1uF

1N5370B,

Zener diode,

5.0 W,

56 V,

CB417

ORANGE DROP®, PS Series

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 10 mm x 21 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 33 µF
• Voltage Rating: 250 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 12,5 mm x 20 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

ORANGE DROP®, PS Series

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet

Screw set for loudspeaker mounting

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

ORANGE DROP®, PS Series

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

ORANGE DROP®, PS Series

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
