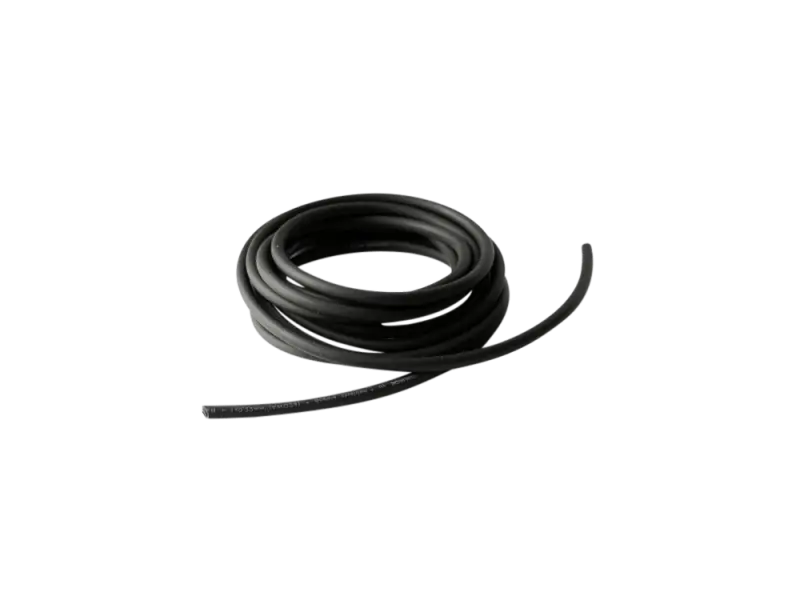

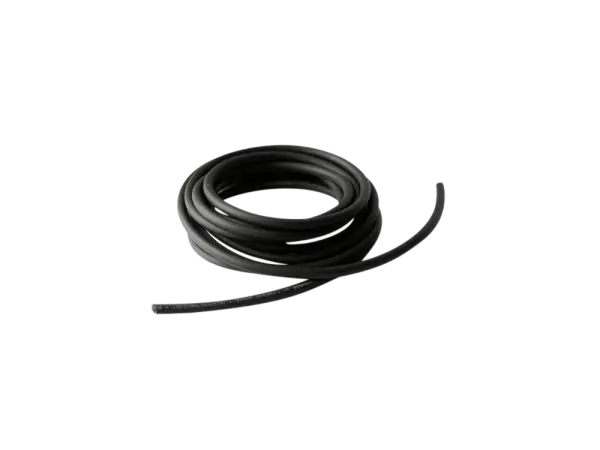

Sommer Cable SC-Spirit High-End, black - 10 Meter

Mobile Preview: Sommer Cable SC-Spirit High-End, black - 10 Meter

SOLD OUT

Sommer Cable SC-Spirit High-End, black - 10 Meter

Product No.:: so300-0051-10
: Temporarily out of stock. Please see hint for delivery time notice
Stock:: 0 Pack
RoHs:: conform
Hint:: Available again ca. 01.01.2026
Weight:: 0.06 kg per Pack

This product ist not available.

22,90 €
2,29 € per m

incl. VAT excl. Shipping costs

Pack:

Quantity

Bookmark

Ask Question

Description

SOMMER CABLE - SC-SPIRIT - 5 Meter

Like a lasso... the guitar players throw the cables around.
That's why especially this cable has to have a very demanding and unique inner life.

Most musicians invest a lot of money in low cost cables, until they finally realise that the cables they just bought are barely good enough for shortwave radio reception or that it even ruins the entire sound image of a very expensive instrument. We have distanced ourselves from cheap products and offer a top quality cable at a fair price.
SC-SPIRIT has a thick insulation between wires and shiedling. This improves the capacitive values and ensures loss-free high rendition, even with longer cables. To avoid crackling and hum interference we use a special conductive carbon shield and copper braided shield. When soldering make sure that the carbon shield and the inner conductor do not touch.
Your audience will be surprised at the sound of this cable!

THE ADVANTAGES:

Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm² or 0.75 mm²
Triple shielding due to the combination of double copper spiral shielding and conductive carbon shielding
Loss free transmission due to the low capacity
Very flexible and easy to wind due to the use of fine individual stranding
Durability and robustness due to a special high quality PVC-mixture for the jacket
Strain relief and good protection against bending due to the thick PVC-jacket

THE APPLICATION:

High quality guitar cable for studio and stage
Unbalanced cable for keyboards, samplers, mixing boards, etc.
Connection of stereo video recorder and DAT-recorder

TECHNICAL DATA:

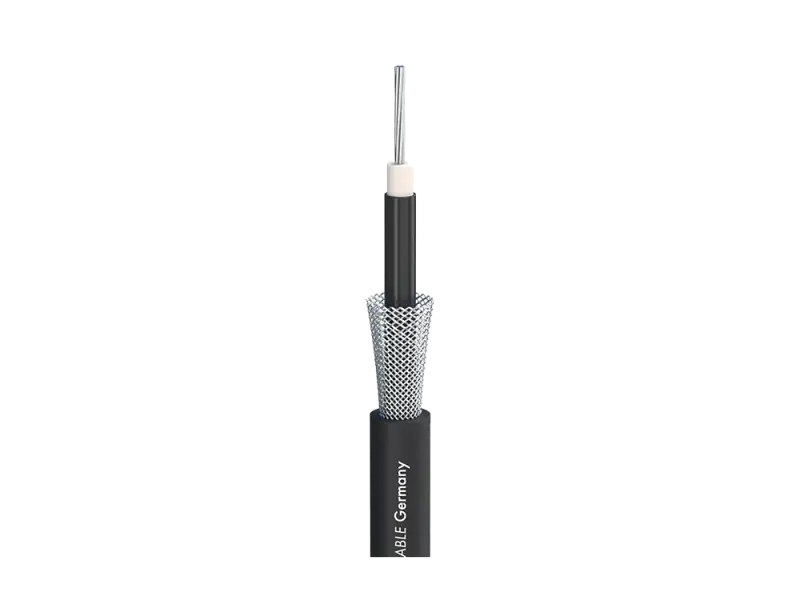

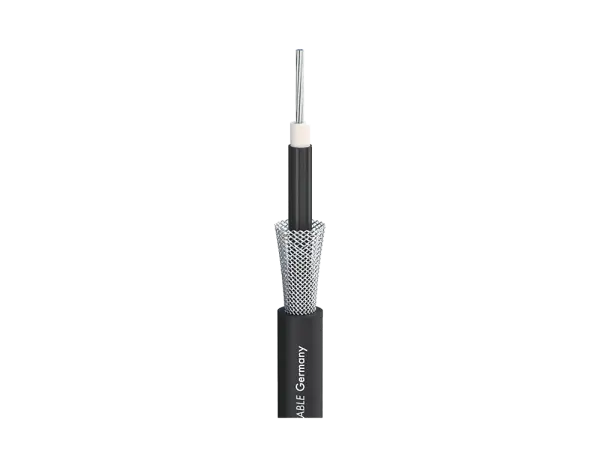

Construction LI2Y(LS)CY1x0,50mm²
Jacket, diameter PVC 7,0 mm
AWG 21
Inner conductors 1 x 0,50 mm²
Copper strand per conductor 28 x 0,15 mm
Conductor insulation PE 2,4 mm
Shielding copper braiding tin-plated + semiconductor
Shielding factor 100 %
Temperature range min. -30 °C
Temperature range max. 70 °C
Fire load per m 0,26 kWh
Weight per 1 m 66 g
Color black

ELECTRICAL DATA:

Capac. cond./shield. per 1 m 78 pF
Cond. resistance per 1 km 38,2 Ohm
Insulation resist. per 1 km > 1 GOhm

Manufacturer

Herstellerinformationen | Manufacturer Information
SOMMER CABLE GmbH
Humboldtstraße 32 – 36
75334 Straubenhardt
Germany
http://sommercable.com
