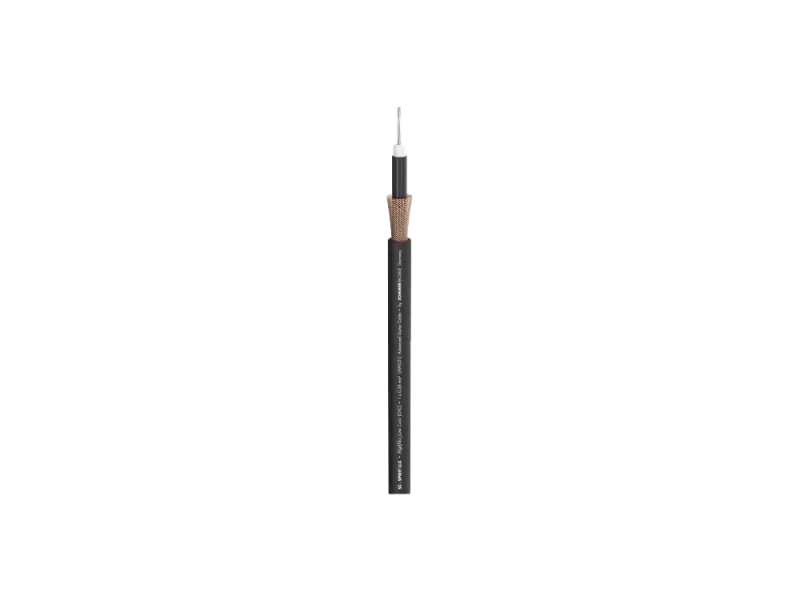

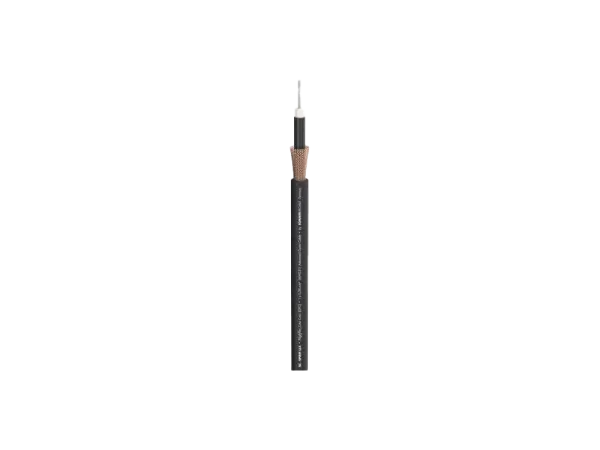

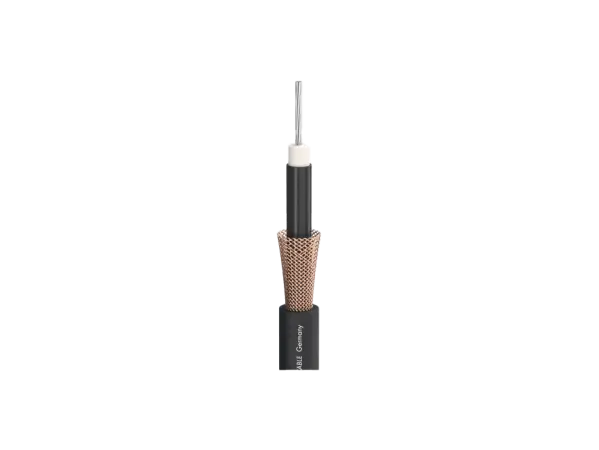

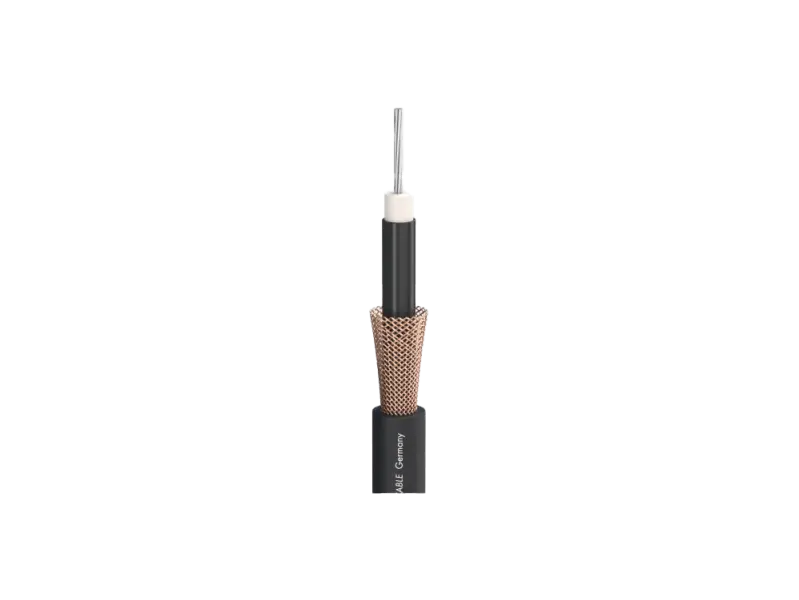

Sommer Cable - SC-SPIRIT LLX LOW LOSS, Instrumenten cable - 10 Meter

SC-SPIRIT BLACK ZILK

Self-respecting musicians...
rock with one of the most interesting guitar cables ever made. This soft, highly flexible guitar cable
with its very attractive finish stands out by outward and inner values. It is sheathed by a thick 7.2 mm jacket
in a velvety, semi-transparent BLACK ZILK jacket, which glides on the the floor as lightly as a feather.
We use concentrically stranded litz wires of oxygen.free class Nò Cile copper (OFC 99.9999%) and a GAS-
INJECTED PE insulation which ensures a low-loss, neutral transmission.

The stranding angle of the shielding screen has been chosen with care so that hardly any friction points
will ocour at the overlying sleeve protection of the connector, giving the cable an extra long life.

With DIY configuring please bear in mind that the black carbon screen(on the white insulation) is conductive
and must therefore be removed to avoid any earthing contact with the inner conductor.

PRODUCT ADVANTAGES:

• Semi-transparent soft jacket design ensures a high number of bending cycles
• Gorgeous velvet look with soft touch feeling
• Dual shielding by flat helical Cu mesh and carbon semiconductor
• High bending cycles
• Zero-twist winding

APPLICATION:

• High-end guitar cable for pure transmission even over longer distances
• perfect for the unbalanced studio cabling

TECHNICAL DATA:

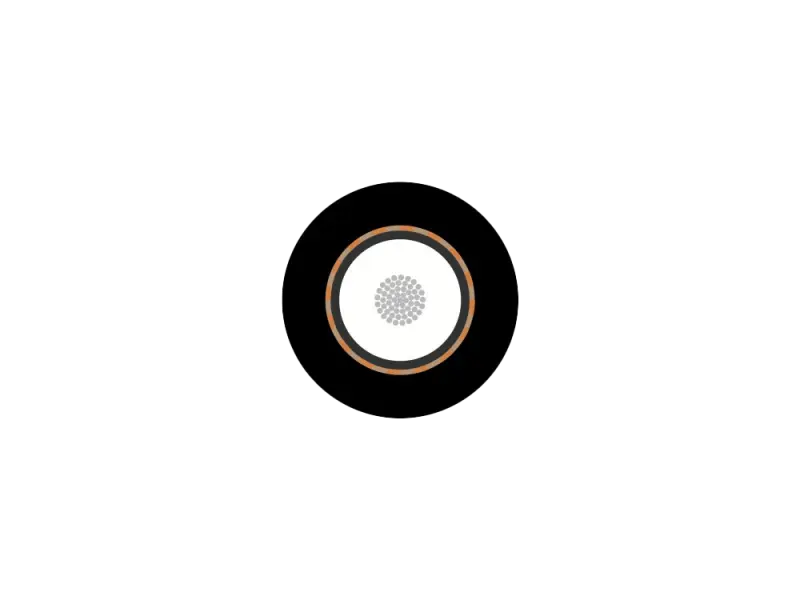

• Construction LI2Y(LS)DY 1x0,25mm²
• Jacket, diameter PVC 7,2 mm
• AWG 24
• Inner conductors 1 x 0,25 mm²
• Copper strand per conductor 32 x 0,10 mm
• Conductor insulation Foam/skin-PE
• Shielding helical Cu screen + semiconuctor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 64 g

ELECTRICAL DATA:

• Capac. cond./shield. per 1 m 80 pF
• Cond. resistance per 1 km 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

 Unit: Price per 1 meter

This high end guitar cable is one of the most successful products of the past years and enjoys cult status with guitarists and bassists alike. Because of the excellent price-performance ratio, German and international trade press elected the SC-SPIRIT XXL test champion several times in a row.
The cable is robust and yet flexible, while its smoke-coloured jacket gives it a high recall value.
The shielding is ideal: The braiding is 95 % opaque and provides optical protection of 100 %, for even more safety.
A special lacquering makes the complex foamed polyethylene insulation very endurable and helps protect the excellent transmission properties for years to come.
The wire diameter of 0.75 mm² limits the loss typical for long distance guitar cables. There is hardly a guitar cable at a length of 10 m that sounds as good as the SC-SPIRIT XXL.
The customers consider the sound of the SC-SPIRIT XXL to be crystal-clear, clean and very neutral. It reproduces the impulsiveness of bass attacks exquisitely.
Caution: The black carbon shield between the braided shielding and the insulation is highly conductive. It must be removed before soldering to avoid short circuiting!

THE APPLICATION:

• Enormously powerful and clear sound image for bass, guitar and keyboard
• Double shielding due to the combination of copper braided shield and conductive carbon shielding
• Transmission free of losses due to low capacity and large wire diameter
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC-mixture for the jacket
• High quality guitar and bass cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

TECHNICAL DATA:

• Construction LI2Y(LS)CY 1x0,75mm²
• Jacket, diameter PVC 6,8 mm
• AWG 18
• Inner conductors 1 x 0,75 mm²
• Copper strand per conductor 42 x 0,15 mm
• Conductor insulation Foam/skin-PE 3,1 mm
• Shielding copper spiral tin-plated + semiconductor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 52 g
• Color black transparent

ELECTRICAL DATA:

• Capac. cond./shield. per 1 m 86 pF
• Cond. resistance per 1 km 25 Ohm
• Insulation resist. per 1 km > 50 MOhm

 Unit: Price per 1 meter

Like a lasso... the guitar players throw the cables around.
That's why especially this cable has to have a very demanding and unique inner life.

Most musicians invest a lot of money in low cost cables, until they finally realise that the cables they just bought are barely good enough for shortwave radio reception or that it even ruins the entire sound image of a very expensive instrument. We have distanced ourselves from cheap products and offer a top quality cable at a fair price.
SC-SPIRIT has a thick insulation between wires and shiedling. This improves the capacitive values and ensures loss-free high rendition, even with longer cables. To avoid crackling and hum interference we use a special conductive carbon shield and copper braided shield. When soldering make sure that the carbon shield and the inner conductor do not touch.
Your audience will be surprised at the sound of this cable!

THE ADVANTAGES:

• Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm² or 0.75 mm²
• Triple shielding due to the combination of double copper spiral shielding and conductive carbon shielding
• Loss free transmission due to the low capacity
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC-mixture for the jacket
• Strain relief and good protection against bending due to the thick PVC-jacket

THE APPLICATION:

• High quality guitar cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

TECHNICAL DATA:

• Construction LI2Y(LS)CY1x0,50mm²
• Jacket, diameter PVC 7,0 mm
• AWG 21
• Inner conductors 1 x 0,50 mm²
• Copper strand per conductor 28 x 0,15 mm
• Conductor insulation PE 2,4 mm
• Shielding copper braiding tin-plated + semiconductor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 66 g
• Color black

ELECTRICAL DATA:

• Capac. cond./shield. per 1 m 78 pF
• Cond. resistance per 1 km 38,2 Ohm
• Insulation resist. per 1 km > 1 GOhm

• RCA Phono plug, gold plated
• High Quality
• 1 x red and 1 x black, one pair

Octal Socket Belton VT8

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Superflat 6.3 mm jack plug, massive pin with gold-plated tip, solder version, black metal housing, 90° angled, moisture-repellent insulation, cable Ø 4.0 - 6.4 mm, with clamping strain relief, ideal for space-saving cabling of effects pedal boards.

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: angled
• Connection type: solder connections
• Housing: metal, extra flat
• Color: silver
• Cable pickup: max 7 mm
• Manufacturer: HiCon

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: straight
• Connection type: solder connections
• Housing: metal
• Color: black
• Special feature: pin gold-plated
• Cable pickup: max 7 mm
• Manufacturer: HiCon
