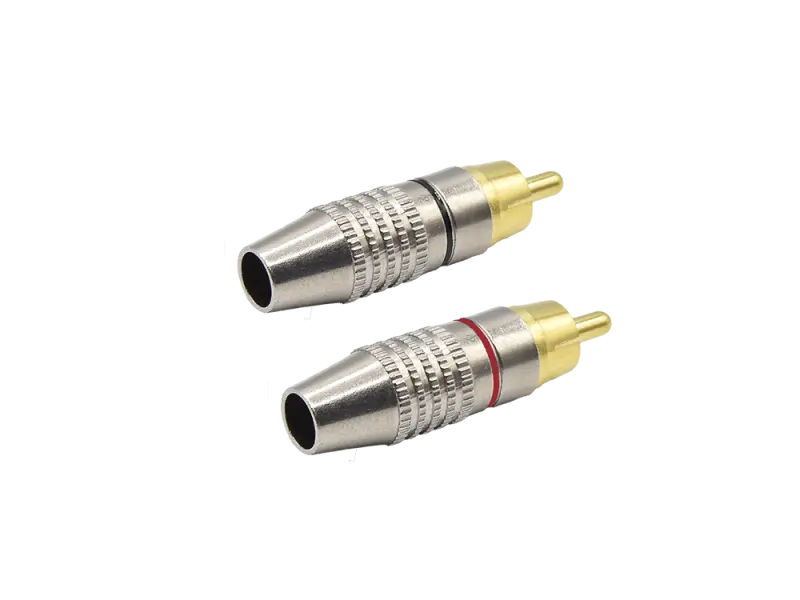

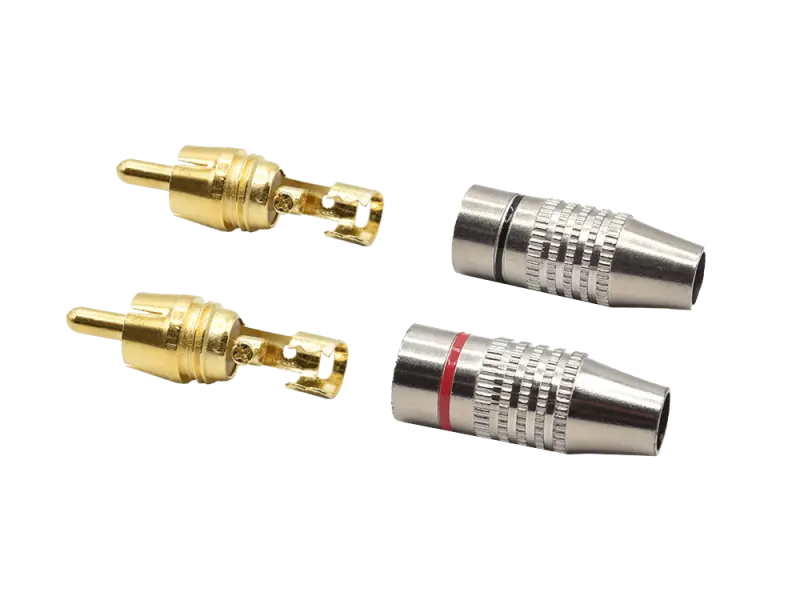

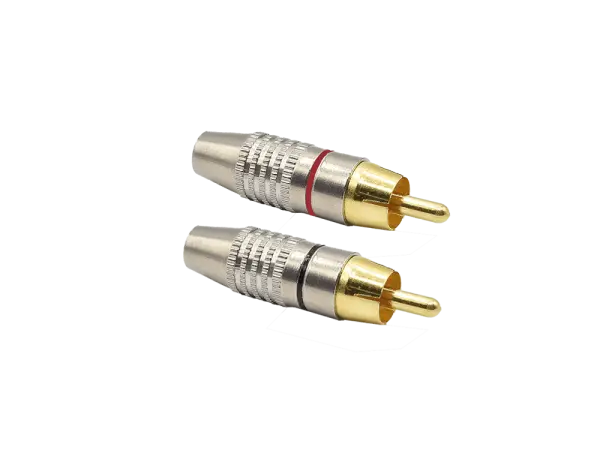

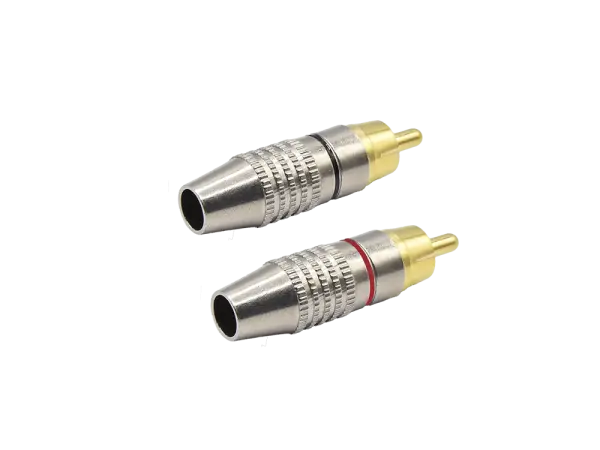

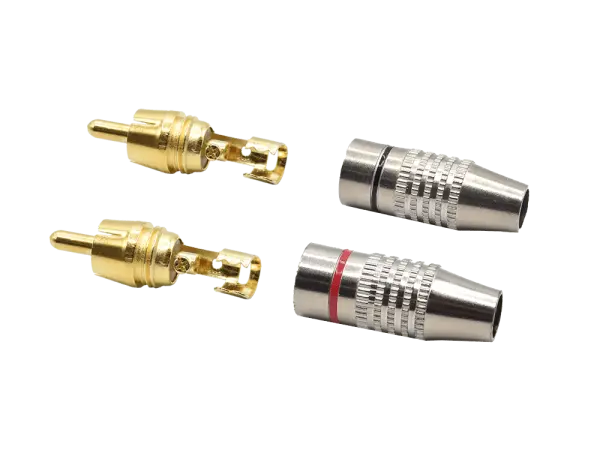

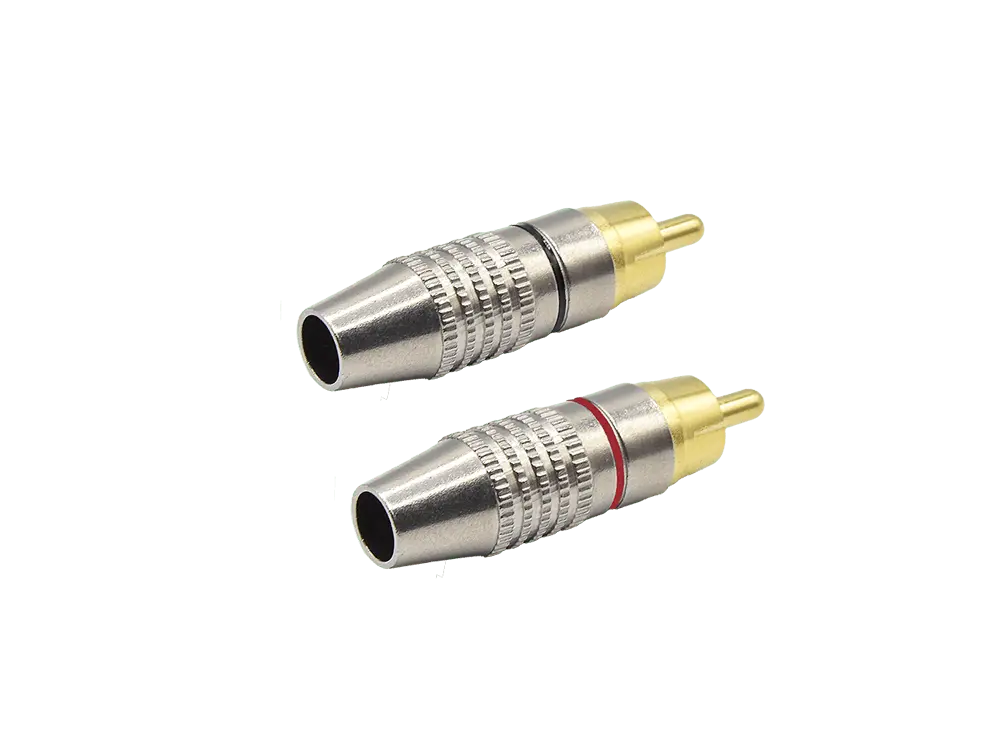

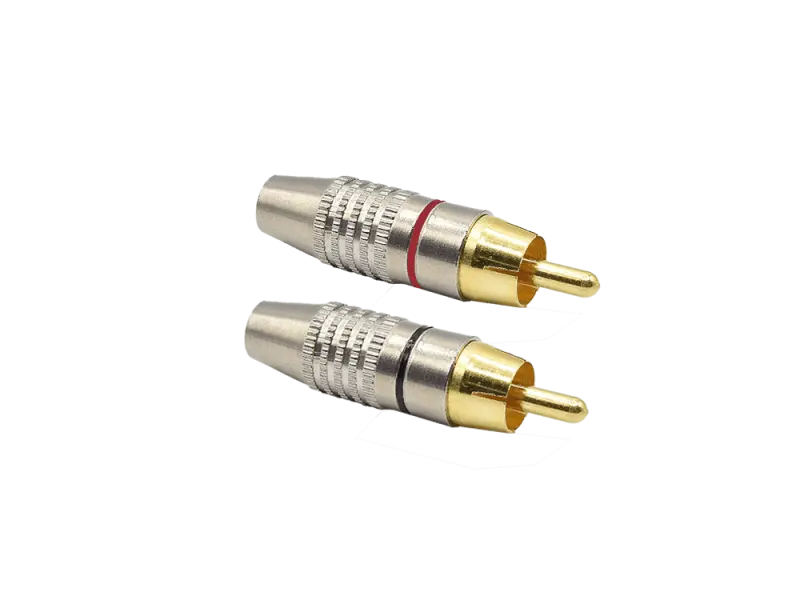

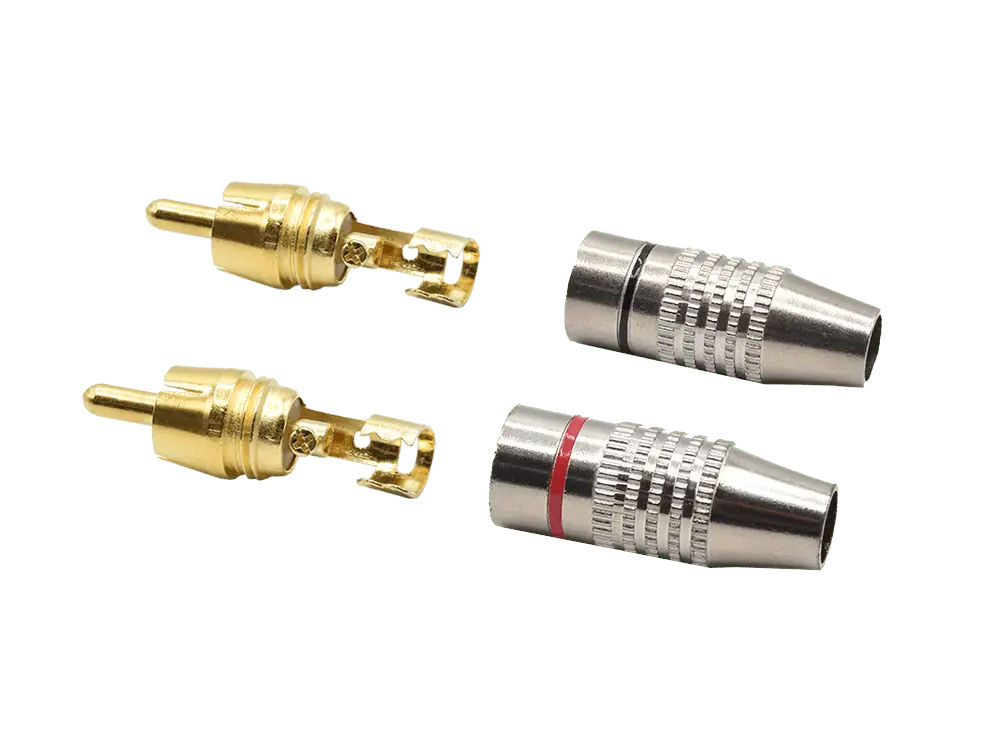

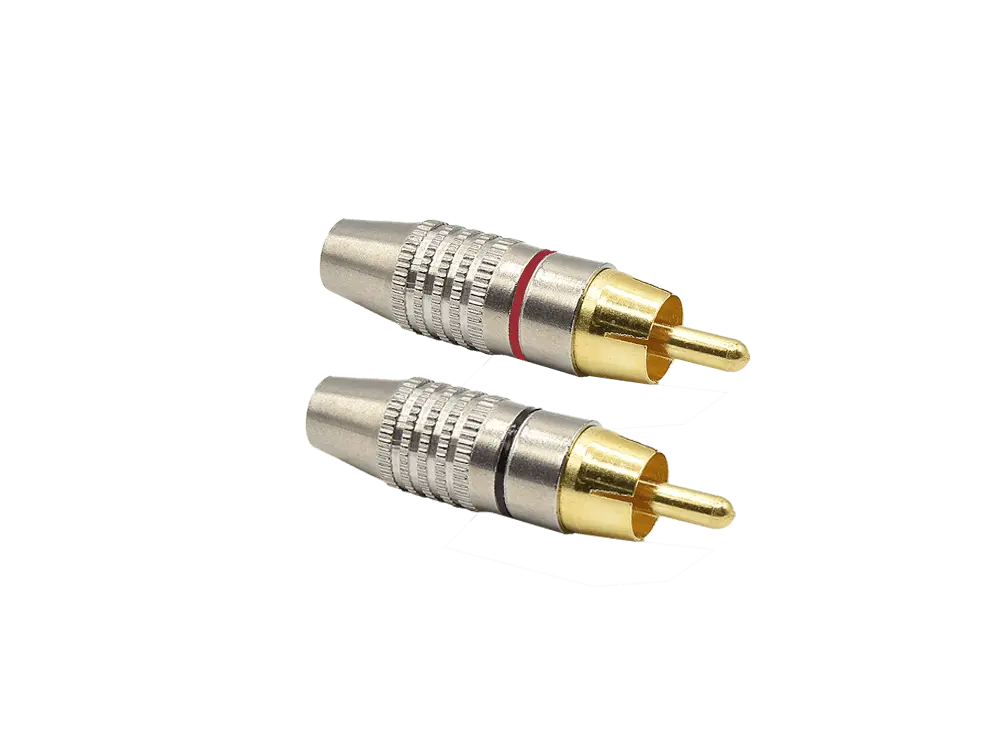

RCA phono plug High Quality, red + black, pair

4 Tubes matched as quad
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 8,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 6,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Output Transformer 125A29A / 022889 Push-Pull
• for Dual Showman, Twin Reverb
• Pri: 2000 Ohm / CT
• Sec: 4,8,16 Ohm
• Power: 100 Watt

Files:

• Datasheet

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size
