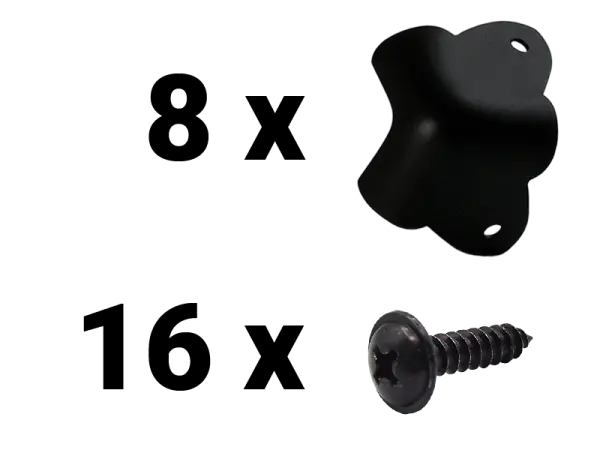

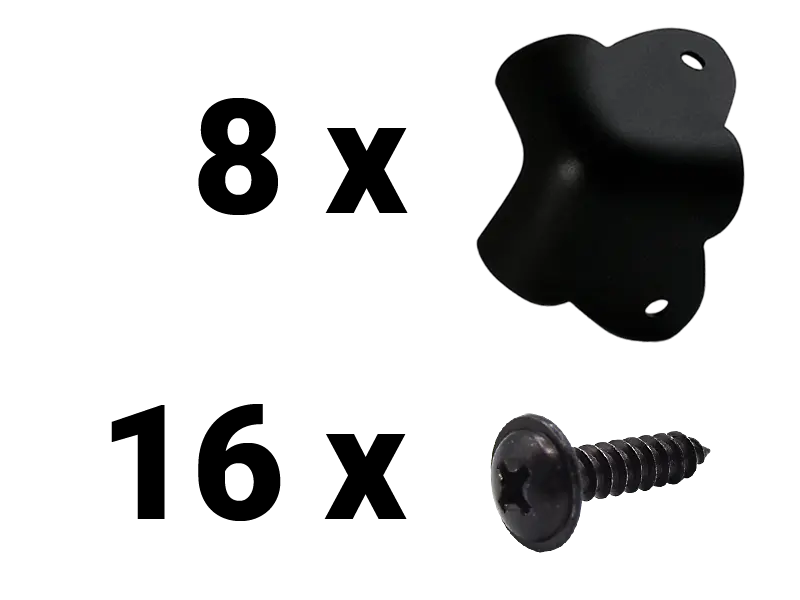

Set Corners w/ cutaway 2 leg, black incl. Screws

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 510 x 420 x 240 mm
• 1 x 12"
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.  7,5 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 590 x 400 x 300 mm
• 1 x 12"
• Material:
  • Body: 15 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca. 9,8 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 660 x 570 x 280 mm
• Speaker cutout: d=360 mm
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.12,3 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

Empty Smallhead-style amplifier housing with open back for self covering, painting or staining.
The headshell is raw and comes without any other hardware. The dimensions are the same as the normal TTC SmallHead.
Made of 15 mm FinePly plywood, corner radius 12 mm.

Specifications

• Size: 660 x 230 x 210 mm (Outside)
• Chassis-Cutout: 410 x 55 mm
• Weight: ca. 6 kg
• Wood: 15 mm Birch Plywood

[content:3210136]

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size:

• Width: 350 mm
• Height: 335 mm
• Depth: 225 mm
• Speaker cutout: 8"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

Empty amplifier housing for TT-Chassis #030
The headshell is made of 18 mm Pine Plywood and can be painted or tolexed by the customers to their own ideas. The front and back panel and the holders are not assembled but included. They can get assembled if needed (woodglue is included).
Hardware, such as corners, handles or feet are NOT included.

Note: the side brackets inside are NOT needed when using chassis 036 - model 2020.

Specifications

• Size: 510 x 240 x 240 mm (Outside)
• Hardware: Screws are included.
• Weight: ca. 4 kg
• Wood: 18 mm Pine Plywood
• Dovetail joints
• Made in Germany

[content:3210136]

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size based on the very popular 112AM Lemberg:

• Width: 500 mm
• Height: 410 mm
• Depth: 240 mm
• Speaker cutout: 12"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

Spezification

• Size:
  • Outside(B x H x T): 510 x 240 x 240 mm
  • Innside:(B x H x T): 474 x 204 x 240 mm
• fits Chassis: #052 (siehe list bellow)
• Hardware: none
• Weight: ca. 4 kg
• Wood:
  • Body: 18 mm Pine Plywood
  • Front/Backpanels: Body: 15 mm Pine Plywood
• Surface: untreated

Files:

• Drawing

[content:3210136]

Strap Handle black, small

• Handle Plastic covered with steel inner core
• Metal Endcaps w/ Plastic Cover

High Quality Speaker Cabs for the DIY

Specifications

• Size: Custom Size
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth:  -
• Hardware: customer preference
• Back: Open-Back or Closed-Back
• Speaker: None

Min / Max dimensions 1xBr, 1xBrGo, 1xAM, 1xLem
Meaning: A = width, B = height, C = depth


Note: This cabinet can also be ordered in a vertical / standing version. Example: if the cabinet should be 750 mm high and 660 mm wide, then enter the width of 660 mm for parameter A and the height of 750 mm for parameter B.

Please note:
The customer is responsible for the size. The minimum and maximum values for length, width and height are production-related specifications and have no significance with regard to the sonic behavior of the box.

There is no such thing as an ideal size or volume for a speaker cabinet. The sound is always a combination of various factors such as the volume, the speaker used, the construction and the amplifier, the guitar and the room.

[content:3210142]
[content:3210137]
[content:3210136]

And here's how:
To calculate the headshell size, first determine the dimensions of the amplifier chassis using the data sheet (PDF file below). Based on this data, the headshell size is calculated according to the data sheet. The calculation can also be done using the Excel spreadsheet below.
To order the headshell, the calculated data must be entered into the appropriate data fields on this page, along with the other configuration parameters, and submitted.

And please note:
The customer is responsible for the correctness of the data.

The standard configuration of all headshells and combos of the Lemberg-Series is without tolex, hardware and other accessories. It is left to the customer to treat the surface of the headshell or combo. Cover it with tolex or varnish it - whatever you want, it is up to you.

Specifications

• Size: customer preference
• Construction: Dovetail joints, all edges rounded
• Tolex: -
• Grillcloth: -
• Hardware (Corners, Handle, Feet): customer preference
• Weight: ca.  8 kg
• Wood: 18 mm Pine Plywood
• Remark: Surface slighly sanded, untreated

Files:

• 3D Drawing (PDF)
• Datasheet (PDF)
• Calculation (XLS)

 [content:3210136]


Tube-Town Black & White, Hiwatt-Style

• Hiwatt-Style, same manufacturer
• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced.

General Specifications

• Nominal diameter: 10", 254mm
• Power rating: 45W Nominal
• Impedance: 8Ω
• Sensitivity: 96dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 14oz
• Frequency range: 95-5500Hz
• Resonance frequency, Fs: 98Hz
• DC resistance, Re: 6.4Ω

Mounting Information

• Cut-out diameter: 9.0", 229mm
• Diameter: 10.0", 254mm
• Magnet structure diameter: 4.9", 124mm
• Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
• Mounting slot PCD: 9.6", 245mm
• Number of mounting slots: 8
• Overall depth: 4.0", 102mm
• Unit weight: 3.5lb, 1.6kg

Width ca. 120 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

Push In 50 mm / 2" Castor w. Metal Socket
Carry Weight per wheel: 20 kg / 44lb

• Rubber foot with steel insert
• Size: d = 25 mm, h = 11 mm
• Pack of 4
• Screws included

Steel Bar Handle Medium, Recessed

• Material: Steel, black powder coated
• Size: 220 x 162
• Cutout: 170 x 112 mm

• Mono Terminal with parallel output for a second cab
• Speaker Crimps for Speaker Connection
