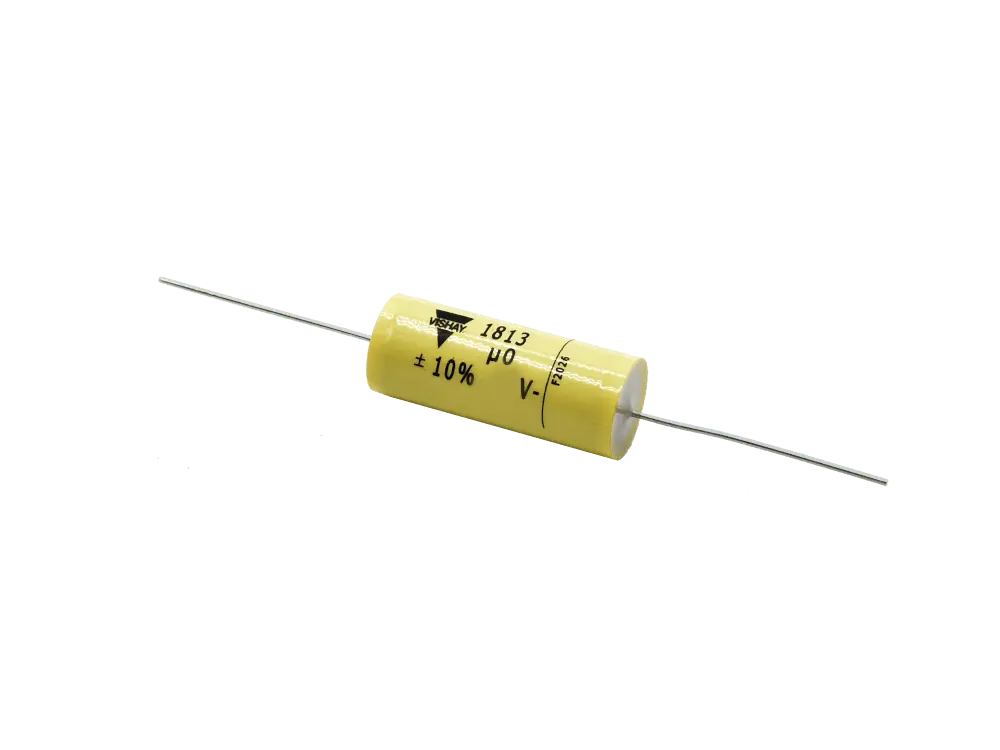

Roederstein MKT 1813 0,047µF / 630 V DC

Description

Type: Metalized Polyester Film Capacitors (PET)
Voltage Rating: 630 VDC / 220 VAC
Tolerance: +/- 10%
Operating Temperature Range: - 55°C / + 100 °C
Termination Style: axial

Documents

Vishay Roederstein MKT 1813 Series Datenblatt (148.31 KB)

Manufacturer

Herstellerinformationen | Manufacturer Information
Vishay Elektronik GmbH GB Röderstein
Hofmark-Aich-Str. 36
84030 Landshut
Germany
https://www.vishay.com/en/company/brands/roederstein/
