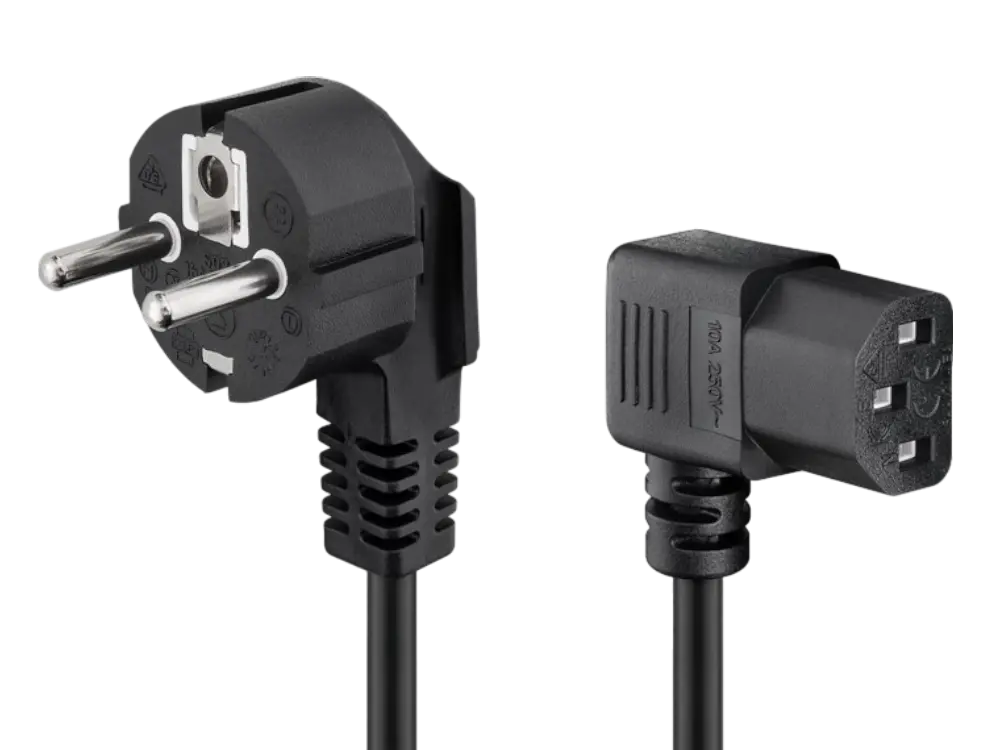

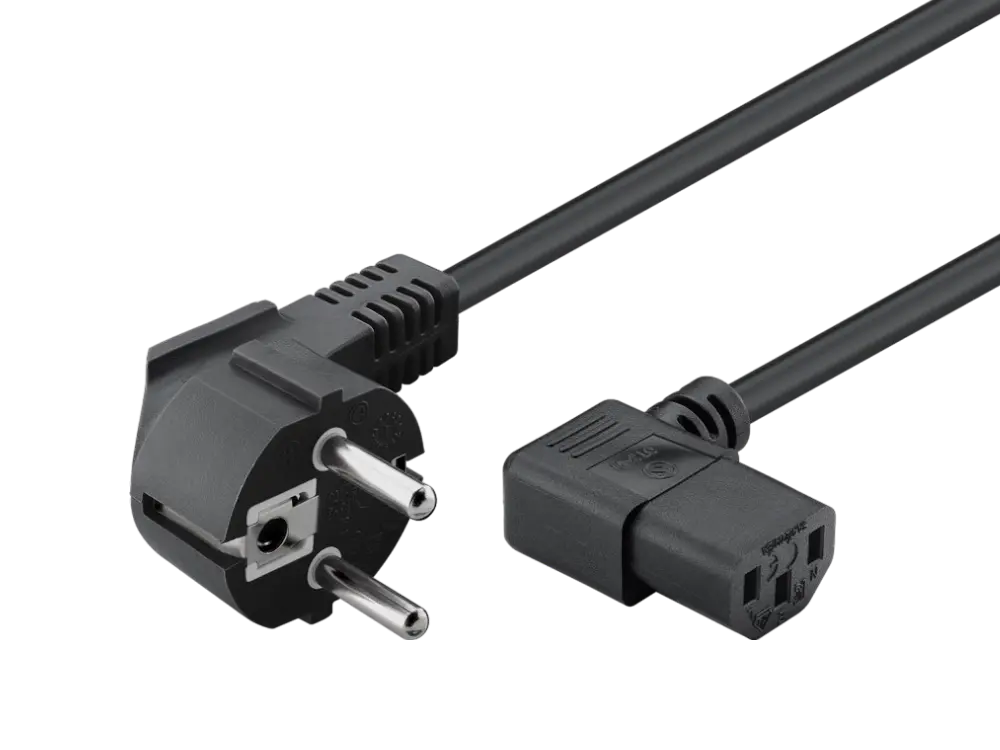

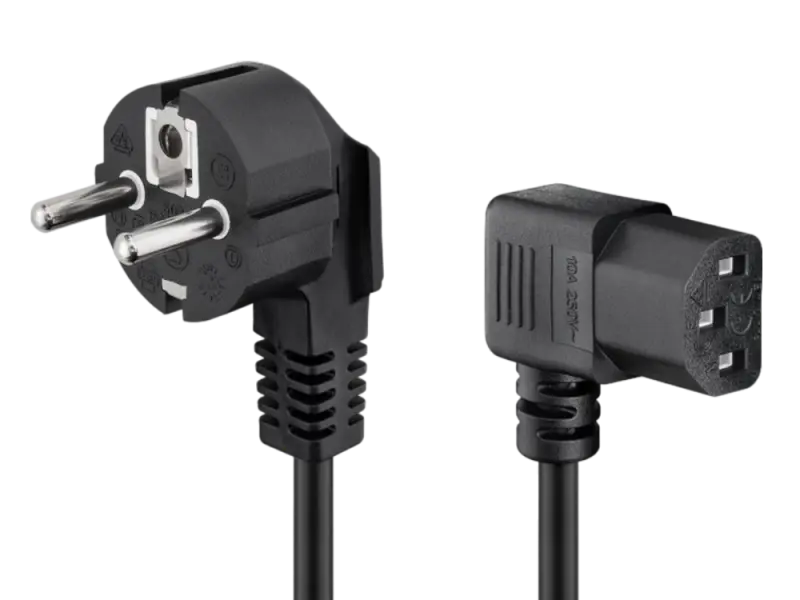

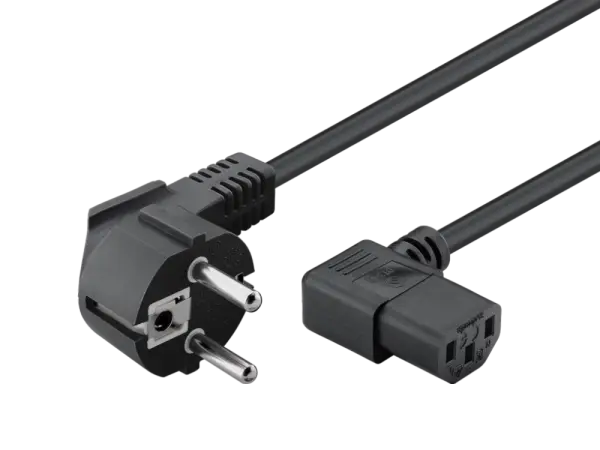

IEC Cord, 1.8 m, angled, black, (3 x 0.75 mm²)

Fender-Style Outputtransformer for 5E3, vertical mounting

• Pri.: 8000 Ohm C.T.
• Sec.: COM-4-8-16 Ohm
• Power: 25 Watt

Files:

• Datasheet

5E3 Powertransformer , laydown

• Pri.: 0-230V-240V (50Hz)
• Sec.1: 325-CT-325 V @ 85 mA DC
• Sec.2: 6,3V C.T. @ 2,5A
• Sec.3: 0-5V @ 2A
• Made in Europe

Powertransformer for:

• Bronco, AA764, AB764, Blackface, Silverface
• Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface
• Harvard, 6G10
• Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A
• Princeton, Brown, AA964, Blackface, Silverface
• Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface
• Fender Part Number 125P1B and 022772

Files:

• Datasheet

• Tube-Town EZ-Board 5E3
• Size: 230 x 71 mm
• Material: 2 mm FR, black
• Can be used as an eyelet board or can be equipped with turrets and used as turret board
• On-board connections already available
• Same board used for the TT-5E3 kits

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V @ 0,15 A

Fender® style lamp jewels

• Threading: 9/16 - 24
