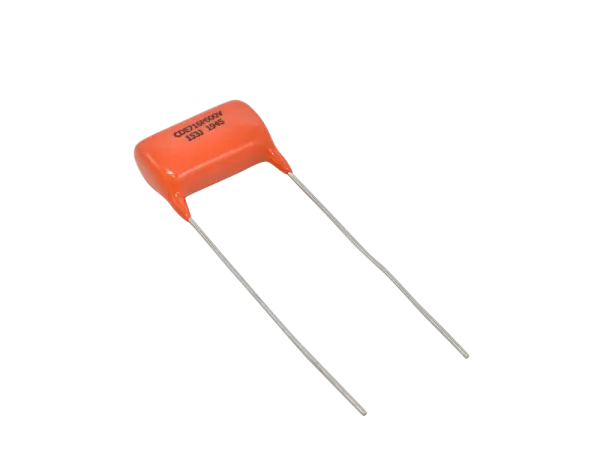

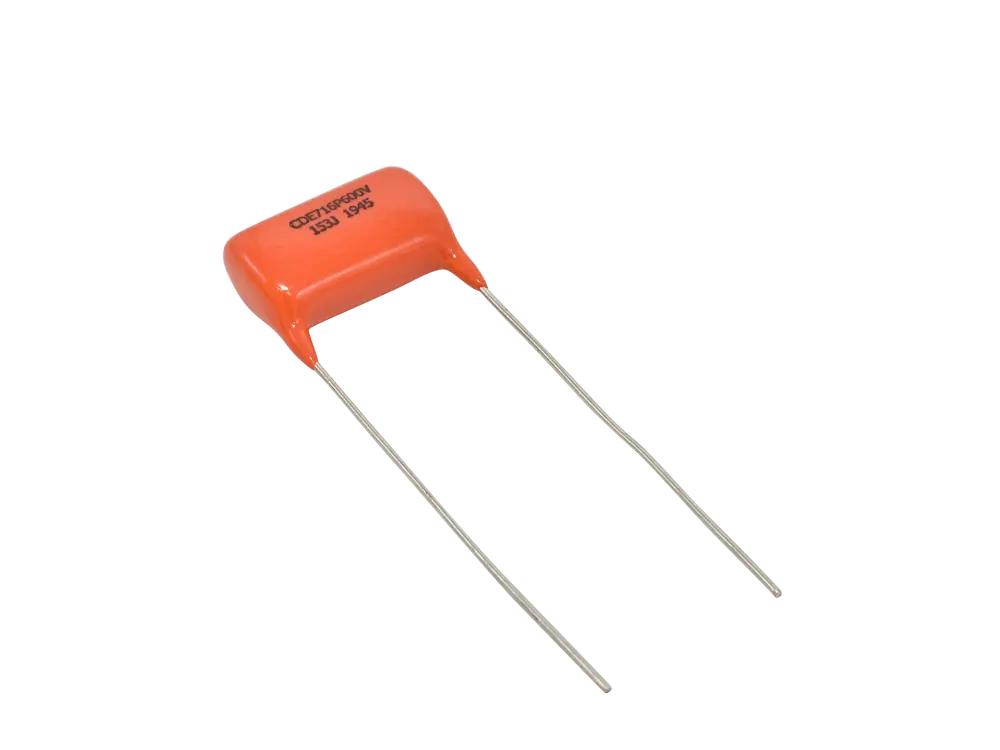

Orange Drop 716 0,047 µF @ 600 V

Description

ORANGE DROP®, 716 P Series

Polypropylene Film Capacitors, extended foil
Voltage Rating: 600 V
Operating Temperature Range: - 55°C / + 85 °C
Termination Style: radial, copper leads
