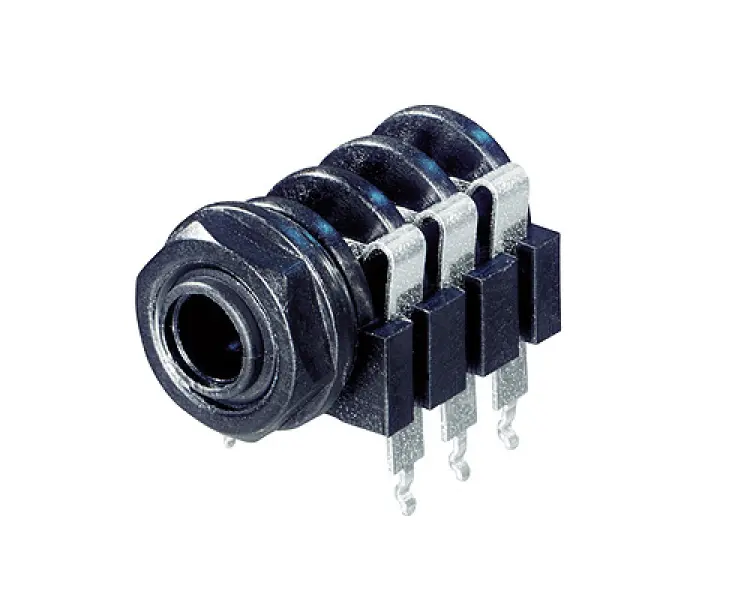

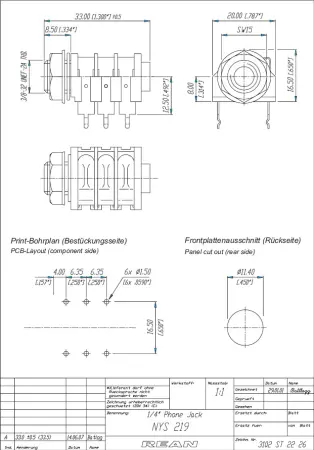

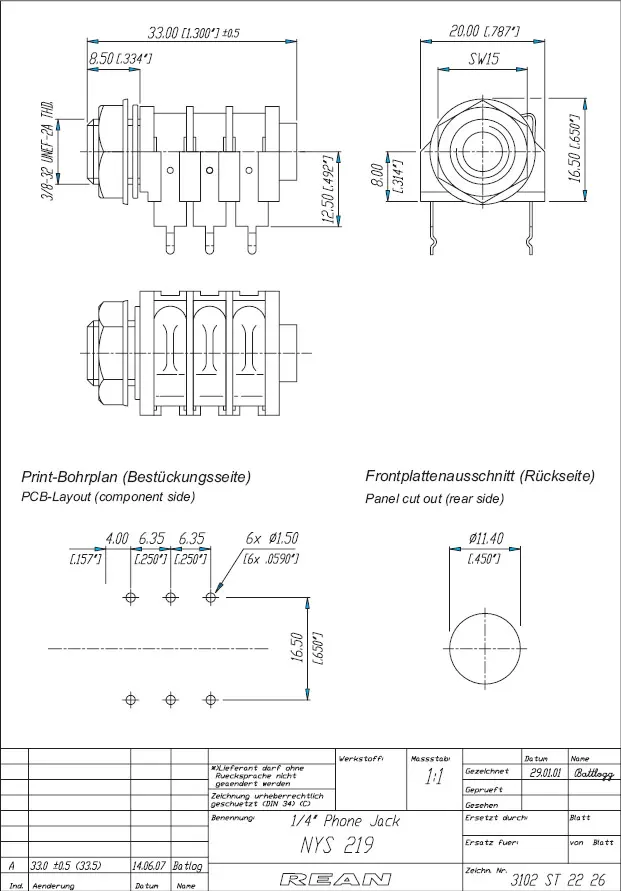

Rean NYS219 - 6,3 mm (1/4") stereo input jack

• Flat washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1029

Carbon Composition Resistors

• 1 watt
• -55° C to 125° C operating range
• ± 20% tolerance
• 350 V working, 700 V overload
• Low inductance
• Low capacitance

• Shoulder Washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1028

Carbon Composition Resistors

• 1 watt
• -55° C to 125° C operating range
• ± 20% tolerance
• 350 V working, 700 V overload
• Low inductance
• Low capacitance

Carbon Composition Resistors

• 1 watt
• -55° C to 125° C operating range
• ± 20% tolerance
• 350 V working, 700 V overload
• Low inductance
• Low capacitance

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
