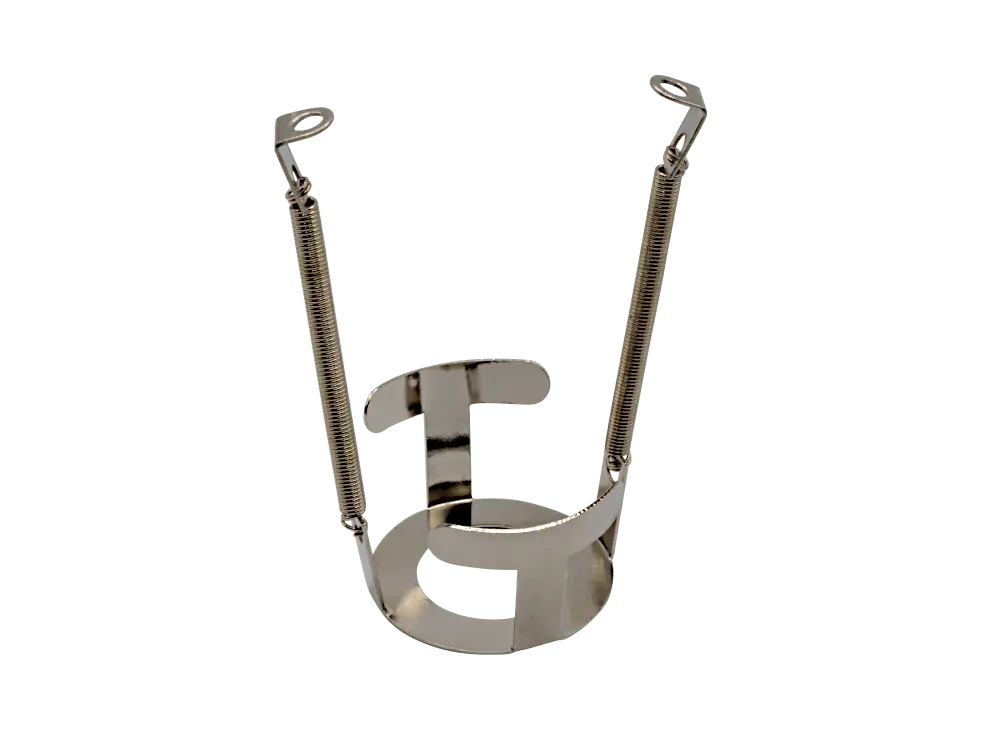

Retainer EL34 / 6L6

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Multisection Capacitor
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

Spring Retainer EL84 / ELL844 and tubes with a similar size

• Material: Steel
• Strength class: 8
• Surface: Zinc-plated
• DIN: 985
• ISO: 10511
• Price: Pack with 100 pcs.

• Type: Electrolytic can capacitor
• Capacitance: 10 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 13 mm x 25 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

• for noval sockets
• Color: black
• High: 55 mm
• Including Base and Shield

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm

This is a kit of the famous Dumbleator, can be used as standalone device or for installation in an existing amplifier.

When build as a stand-alone device, the kit can be powered with the TT-VPump, in an amplifier the kit must be supplied via the existing power supply of the amp.

The Dumbleator offers numerous configuration options which are shown in the appended schematics.

Input Levels:
InA: 10-15 Vpp
InB: guitar level - 5 Vpp

The kit includes all the parts needed to build the "standard version" incl. a 12AX7, potentiometers and leads.
It does not include components that are required for the building the extended versions,  as well as a power supply or casing.

The Dumbleator utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Schematics

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

Width ca. 125 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

PLEASE NOTE !
If you order more than 1 m of Tolex and choose German Postal Service / DHL or FedEx as the shipping method, then we will cut the tolex to a width of approx. 115 cm, as the maximum permissible parcel length for these parcel services is limited to 120 cm.
