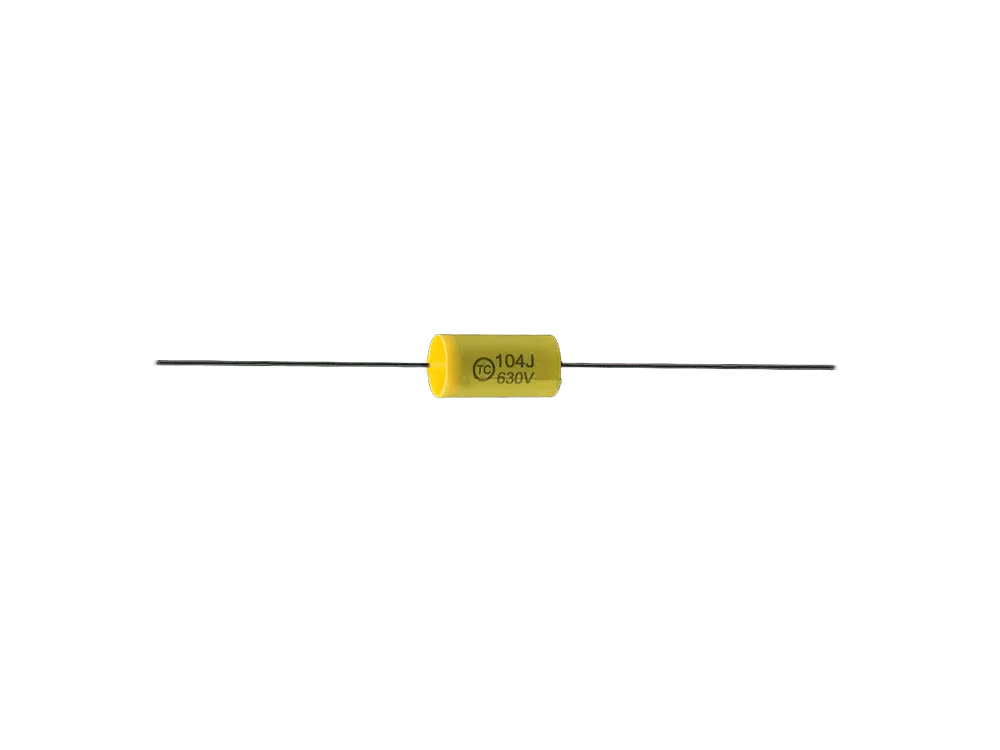

Tubular Film Capacitor 0,047 µF / 630 V

Outputtransformer for Tube-Town Low Projects with EL84 Single-Ended powerstage

• Pri: 5k Ohm
• Sec: 4-8-16 Ohm
• Power: 5 Watt
• Re (a-a) 150 Ohm +/- 5%
• Inductance Pri: 5,15 H @240V/50 Hz, open circuit
• Easy connection
• Large sheet metal package
• Tight bass, balanced mid - treble ratio

Files

• Datasheet

• Silver-plated Copper wire
• Wire diameter 0.8 mm
• Length: 7 m

TT EL84 7 6BQ5 #07 - VOX AC30 / AC15

• Slightly hotter than the #06 selection
• Selected and recommended for VOX AC 30 / 15  and similar amps.
• Price for one tube.

FAQ: If I order two or more of these tubes, are they all "the same"?
Yes, the tubes are all "matched" and selected for the in the description mentioned amplifiers.
FAQ: Can I replace the tubes myself or are adjustments needed?
Adjustments are not possible on the listed amplifier (unless a bias potentiometer has been added afterwards). The replacement can therefore be done without adjustments.

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

4 Tubes matched as quad
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

Signal lamp round, red

• Operating voltage: 230 V~
• Power: 0,05 W
• Light/housing color: red
• Connection: soldering lugs
• Installation Ø: 10 mm
• Installation depth: 35 mm
• Overall dimensions (ØxL): 12x42 mm
