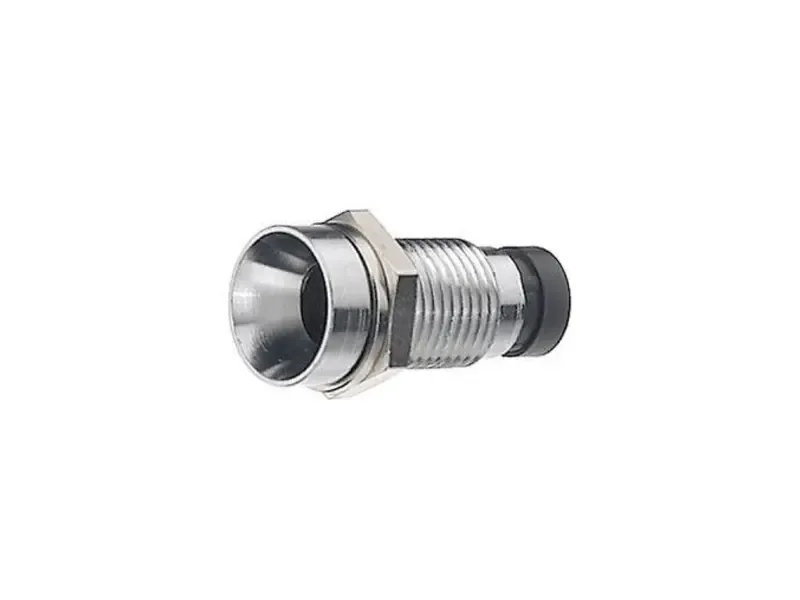

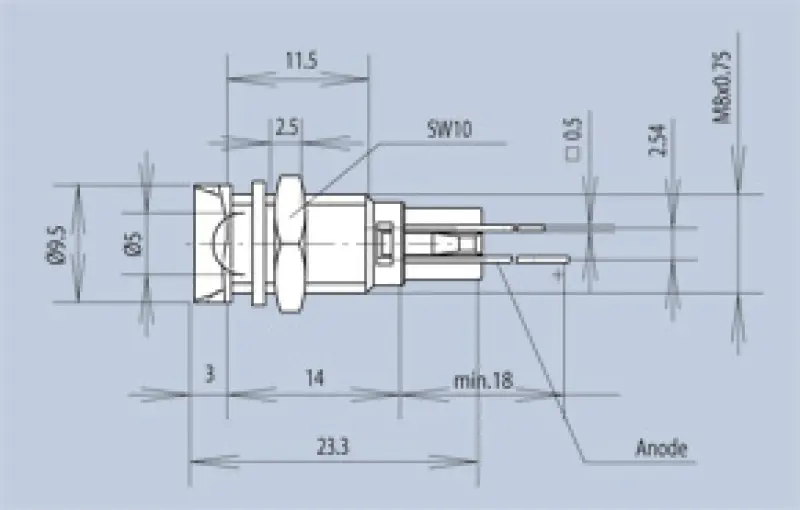

LED Ø5 mm Metal Holder, silver

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 22 mm
• Can not be used with JJ 12AX7 and other JJ preamp tubes with similar diameter and JJ EL84 and JJ EL844
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

DC Socket, Panel Mount 5.5 x 2.1 mm

• DC female, female, panel mount
• 0.5A 30 VDC, 3 pins
• Size 5.5 x 2.1mm
• Contact Resistance: < 0.03 Ohm
• Insulation Resistance: > 100 MOhm
• Pack of 5 pcs

• Type: Fender Blackface Style Knob
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 30 x 16,1 mm
• Mounting: Set-Screw

Carbonfilm Resistor - Pack of 5

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm
