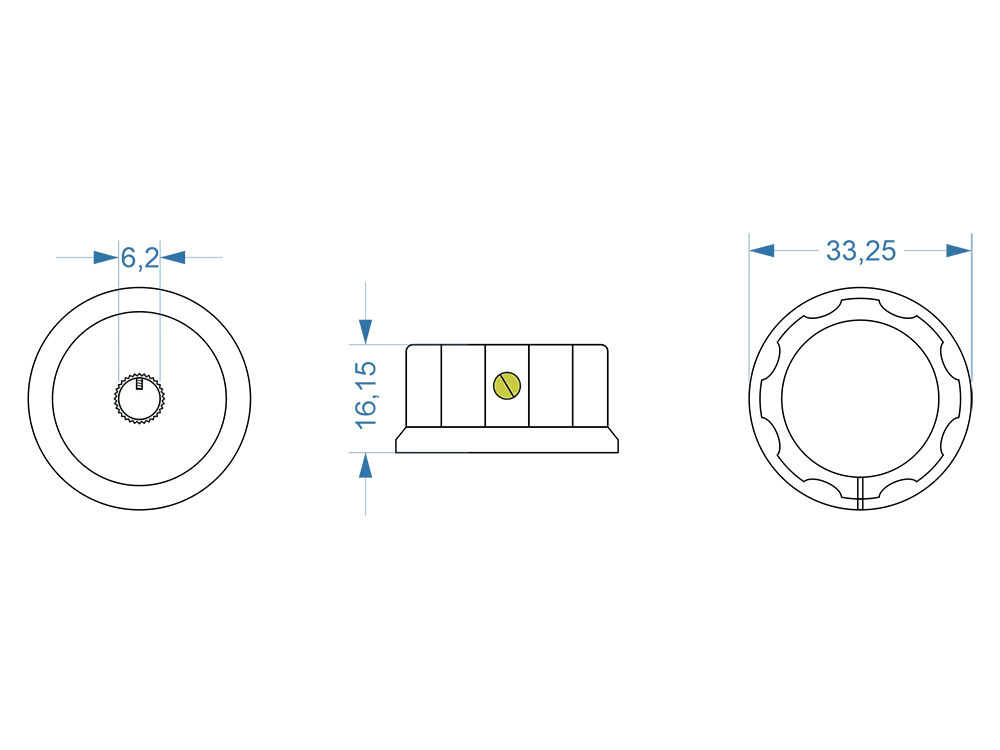

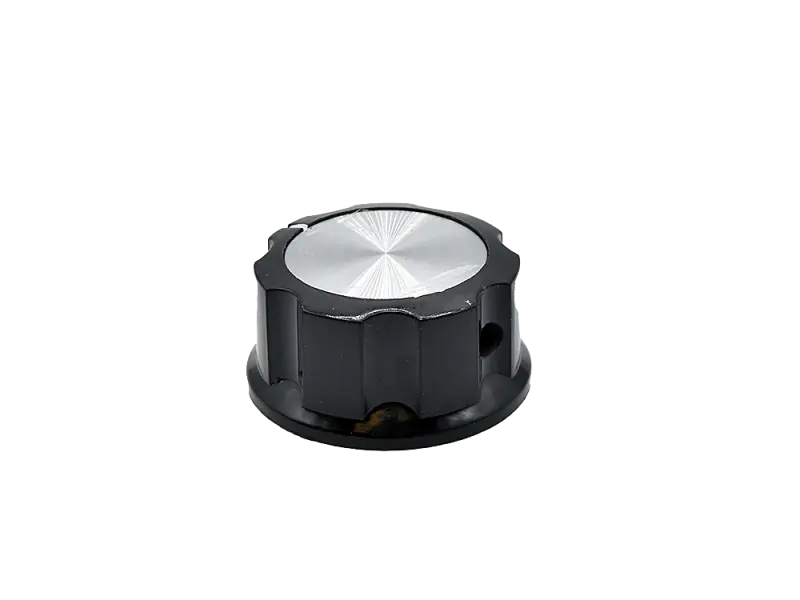

Knob Classic Fluted black/silver, large

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

• Type: Toggle Switch
• Version: SPDT, ON-ON
• Assembly Ø: 5 mm
• Rating: 1,5 A / 250VAC
• Termination Style: solder-lugs

• Size: 118,5 x 93,5 x 30 mm
• Color: Natural

Files:

• Datasheet

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

Panel Mount Potentiometer, angled

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 14,5 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

• UIO (kV~): 2.5
• RIO (O): 1010
• CIO (pF): 0.5
• Clim. Category: 40/ 70/ 04
• Crossreference: Vactrol VTL5C1, Moririca MCD 735

Files:

• Datasheet

Original VAC/TEC VTL5C1 Optocoppler, not RoHS-conform

• Type: Toggle Switch
• Version: DPDT  ON-ON
• Assembly Ø: 12.2 mm
• Switching current: 1,5 A
• Rating: 1,5 A / 250VAC, 3 A / 125VAC
• Insulation resistance: Min. 500 V/DC/100 MΩ
• Contact Resistance: Max. 50MΩ
• Termination Style: solder-lugs
