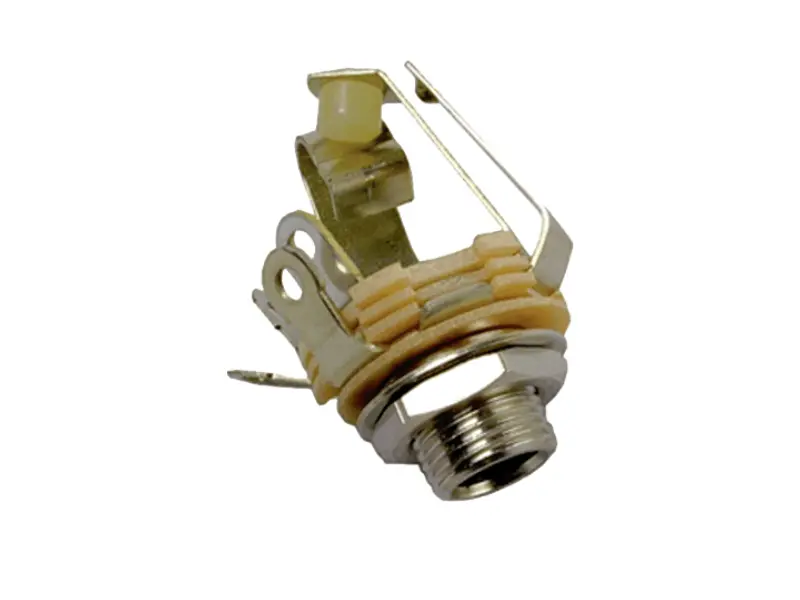

Switchcraft 13, 6,3 mm jack - Make Circut

• Shoulder Washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1028

• Flat washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1029

• Signal wire LiYDY 1 x 0,14 mm², shielded
• Diameter Outside: ca. 2,6 mm
• Voltage Rating max: 50 / 75 V AC / DC
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length 1 m

• Signal wire LiYDY 1 x 0,5 mm², shielded
• Diameter Outside: ca. 3,2 mm
• Voltage Rating max: 250 V
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length: 1 m

• Soft Recovery Ultrafast Rectifier
• Maximum repetitive peak reverse voltage: 1000V
• Maximum average forward rectified current: 3,0 A

Files:

• Datasheet

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 6 mm x 10 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 6 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial
