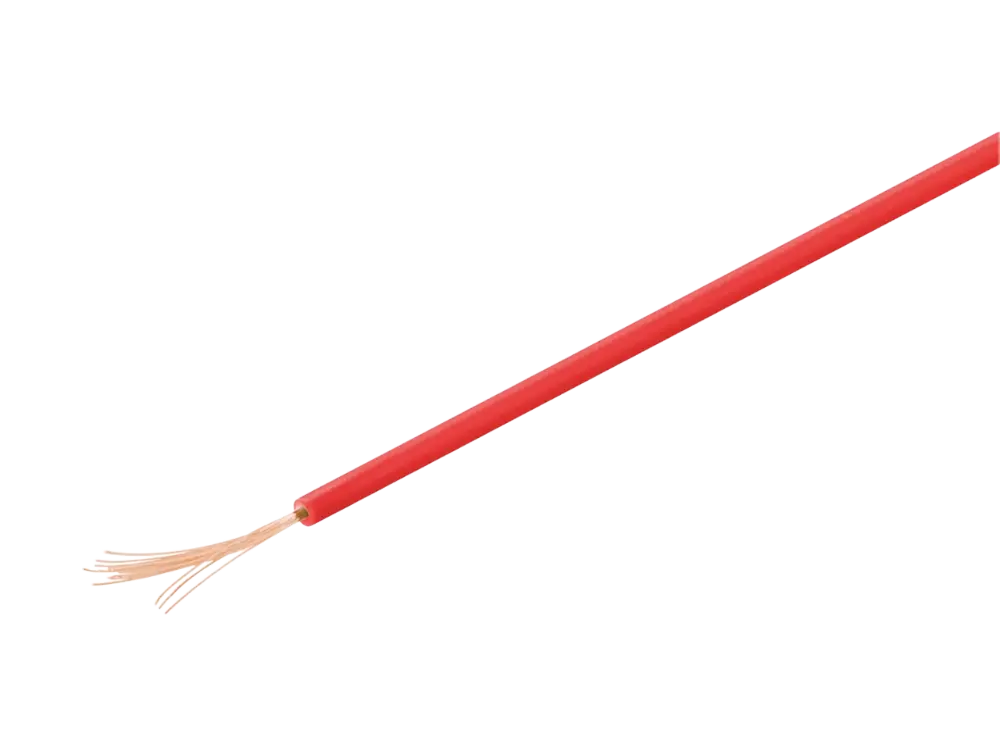

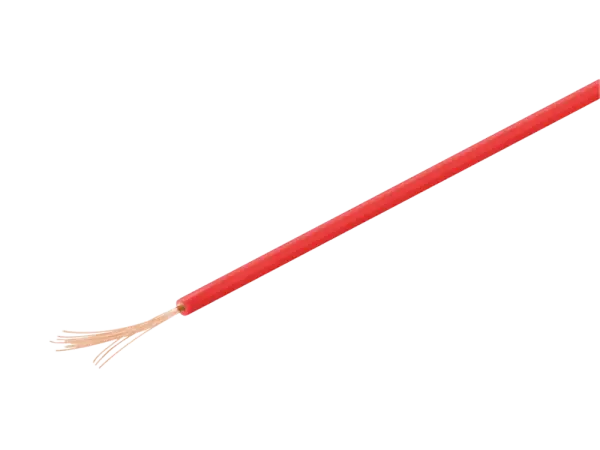

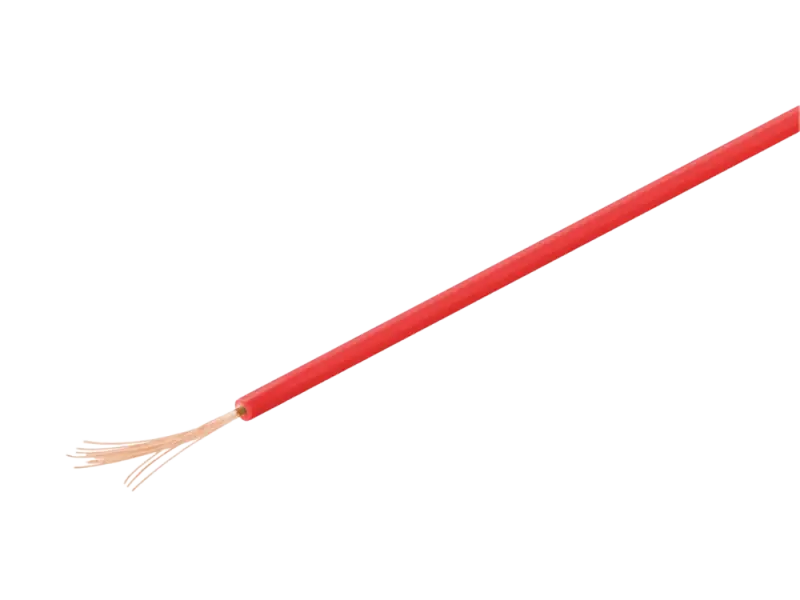

Hookup Wire 0,14 mm², flexible, red, 10 m

Single tube, not matched

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

• Type: Octal Socket Fender Style
• Version: Ceramic Chassis mount
•   w/mounting bracket
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550,
•   KT66/77/88 etc.

Socket Clamp / Tube Retainer fits for many octal base tubes.

Panel Mount Potentiometer

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 22.75 x 18.7 mm
• Mounting: Set-Screw

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel red

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

Copper Stranded Wire Insulated, 10m, green

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

Specifications

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Grommet 10 mm - Pack of 5

• Color: black
• Size:
  • A: 10 mm
  • B: 12 mm
  • D: 17,5 mm
  • H: 6,8 mm
  • h: 2 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• Color: black
• Size:
  • A: 8 mm
  • B: 11 mm
  • D: 15,9 mm
  • H: 6,8 mm
  • h: 1,6 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 6.0 mm
• Material: galvanised steel
• Length: 15 mm

Headroom, clarity, balanced response, power...
These terms have become synonymous with a vintage American design that is known and sought the world over.  WGS now pays tribute to this classic with our WGS12L. However like all of our designs, we didn't set out to make a clone.  With this model we paid extra special attention to the details, producing a speaker that delivers that same even response without sounding sterile and lifeless.  Boasting a cast frame, 2.5" voice coil and a 200 watt rating, and clocking in at 18 pounds, this beast is loaded for bear.  As a welcome addition to the WGS fleet, this speaker is definitely our battleship.

Note from the boss: "We compared both the EVM 12L and the WGS 12L in an 806 cabinet and it was almost impossible to tell them apart. The WGS 12L is a great alternative to the original and we recommend it without reservation as a perfect replacement for the EVM 12L."

Thiele-Small Parameters

• Resonant Frequency (Fs): 49.58 Hz
• DC Resistance (Re): 5.84 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 7.41
• Electromagnetic Q (Qes): 0.25
• Total Q (Qts): 0.24
• Compliance Equiv. Vol. (Vas): 50.51 cu ft
• Mech. Compliance of Susp. (Cms): 0.27 mm/N
• BL Product (BL): 16.74 T-M
• Diaphragm Mass Inc. Airload (Mms): 38.77 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.67 db
