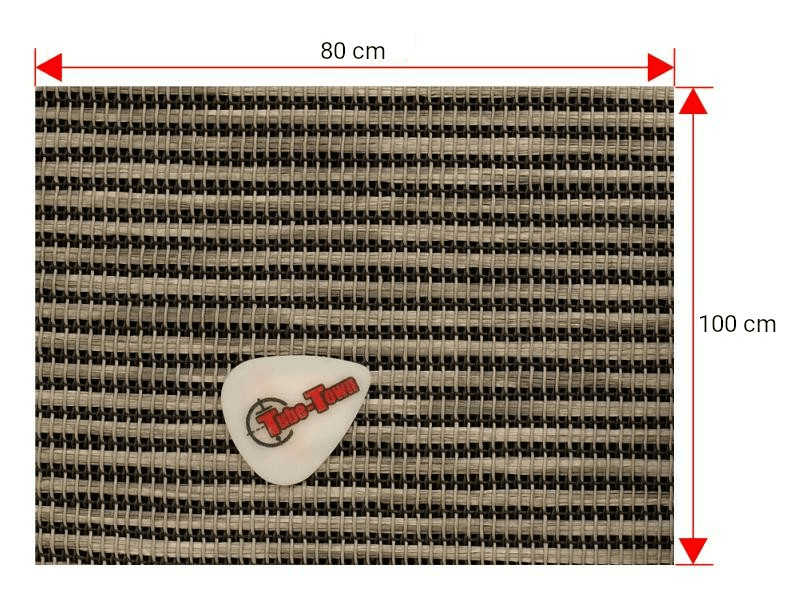

Grillcloth Marshall 1974x Hand wired series - 80 x 100 cm

Faceplate for TT Amp-Kit 18Watt combo version

• Color: #LG10 Gold GLOSSY lacquered
• Material: 1,5 mm Acryl Revers
• Frontpanel only
• for chassis tt-ch026

Files:

• Template

Very linear working 12AX7 / ECC83 with long anode plates and spiral heating, which makes the tube less sensitive to interference from AC heating.
We recommend this tube for audio and high-end amps as well as for "modern" Fender amps with more overdrive, but also as an input tube in old Marshall JCM800s.

Note: Tubes equipped with long plates are commonly associated with a "warmer" or "richer" sound, whereas those with shorter plates tend to deliver a "tighter sound". However, tubes featuring long plates exhibit increased sensitivity to vibrations and mechanical disturbances, rendering them less ideal for critical applications.

Files

• Datasheet

Spring Retainer EL84 / ELL844 and tubes with a similar size

Tube Shield Noval

• for noval sockets
• Color: black
• High: 55 mm
• Including Base and Shield

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

• 2+1 Solder lugs
• lugs brass, tinned

4 tubes, matched as quad

Premium power beam tetrode continuing in the Tung-Sol legacy. The ultimate in musical tone and smooth overdrive, STR delivers the sound that established Tung-Sol as the benchmark of quality.
Faithful re-issue of the original Tung-Sol STR, built to the same “Special Tube Request” specs of amp manufacturers of the 60s.

Files

• Datasheet

High-Power 5E3 transformer for the use of 6L6 tubes (or similar) with a 5E3

• Pri.: 0 - 230 - 240 V (50Hz)
• Sec.1: 320 - 0 - 320 V @ 300 mA DC
• Sec.2: 3,15 - 0 - 3,15 @ 5A
• Sec.3: 0 - 5V @ 3A
• Made in Europe

Files:

• Datasheet

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V @ 0,15 A
