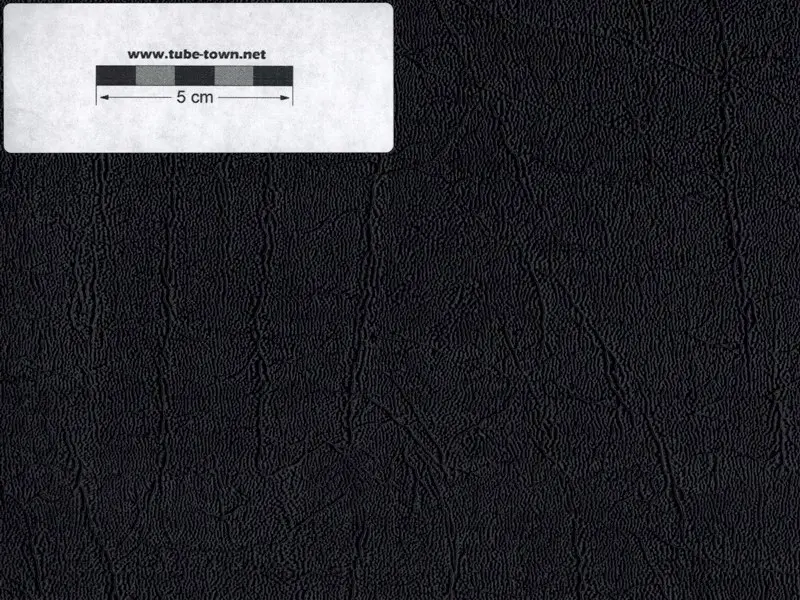

Tolex Tube-Town Black Taurus

• Ø 2.5 mm
• 2 m piece

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

• Total Resistance Tolerance: +/- 20%
• Rated Power
  • B/Lin Taper: 0,125 W
  • A/Log Taper: 0,1 W
• Max. Operating Voltage
  • B/Lin Taper: 150 V AC
  • A/Log Taper: 150V AC
• Noise: 47 mV max.
• Insulation Resistance: 500 V DC 1000MOhm
• Withstand Voltage: 1 minute 500 V AC
• Rotational Life: 15000 Cycles

• Shaft Diameter 6 mm
• Shaft Type: Split Shaft
• Shaft Length: ca. 9 mm
• Bushing Length: 6,5 mm
• Body Diameter: 16 mm
• Connectors: Solder Lugs
• Total Rotational Angle: 300° +/- 5°
• Rotational Torque: 30~200gf.cm
• Solder Heat Resistance: 300°C, 3 S

• Shaft: Cast Iron (Aluminium Zinc)
• Bushing Material: Cast Iron

• Type: Film capacitor
• Dielectric: polyethylene terephthalate foil
• Capacitance: 0,022 µF
• Voltage Rating: 250 VDC
• Tolerance: -20 % / +20 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 4 mm x 9 mm x 13 mm
• Termination Style: radial
• Grid: 10

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 1 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications
