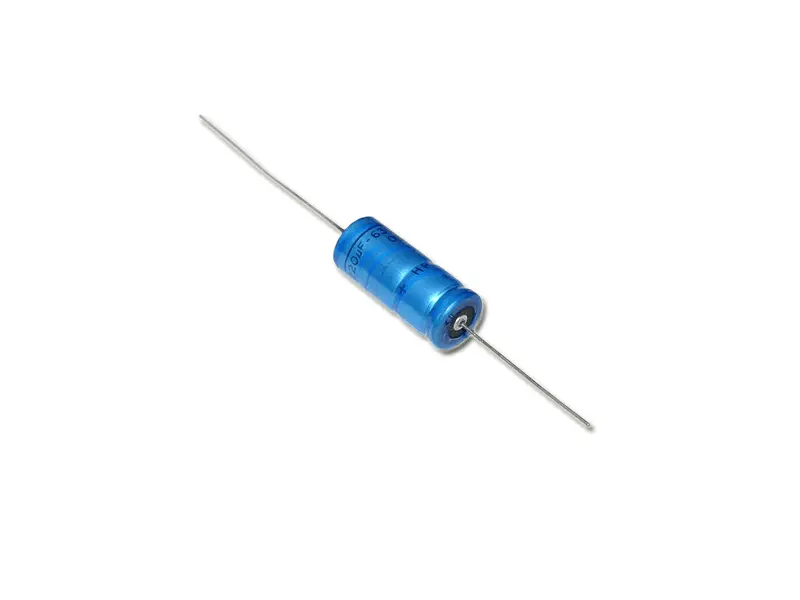

Elektrolyt 2200 µF @ 63 Volt

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 10 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 100 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 19 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Fender-Style Outputtransformer for 5E3, vertical mounting

• Pri.: 8000 Ohm C.T.
• Sec.: COM-4-8-16 Ohm
• Power: 25 Watt

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 1000 µF
• Voltage Rating: 63 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 39 mm
• Termination Style: axial
• Norm:  IEC 60384-4

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Electrolytic can capacitor
• Capacitance: 100 µF
• Voltage Rating: 35 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 55°C / + 105 °C
• Dimensions: Ø 6.3 mm x 11.5 mm
• Termination Style: radial
• Grid: 2,5

Images are for reference only. See Product Specifications

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

• Type: Electrolytic can capacitor
• Capacitance: 470 µF
• Voltage Rating: 63 V
• Tolerance: 20 %
• Operating Temperature Range: - 55°C / + 105 °C
• Dimensions: Ø 13 mm x 21 mm
• Termination Style: radial
• Grid: 5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 220 µF
• Voltage Rating: 35 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 12 mm
• Termination Style: radial
• Grid: 5

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 470 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

Images are for reference only. See Product Specifications
