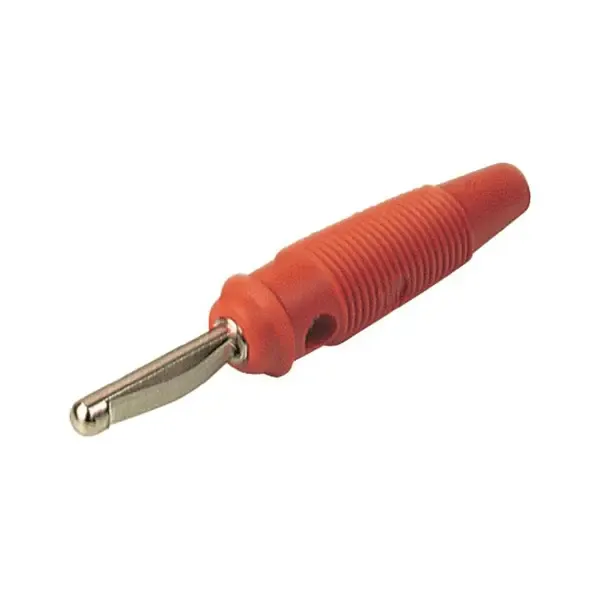

Fully mating connector, 4.0 mm, red
Fully mating connector, 4.0 mm, red
Fully mating connector, 4.0 mm, red

Fully mating connector, 4.0 mm, red

Product No.:
bk-von30-RT
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.005 kg per piece
1,20 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
with step-on proof, flexible in insulating sleeve.
  • Connection Type: solder connection
  • Wire Diameter: up to 2,5 mm2
  • Plug Diameter: 4 mm
  • Contact materal: nickel-plated brass
  • Rated voltage: 60 VDC
  • Rated current: max. 30 A
  • Contact resistance: 3.0 mOhm
Hint: to assemble the connector please pull the metal part out of the plastic part !
Manufacturer
Herstellerinformationen | Manufacturer Information
Hirschmann Automotive GmbH
Oberer Paspelsweg 6-8
6830 Rankweil, Austria
https://www.hirschmann-automotive.com
