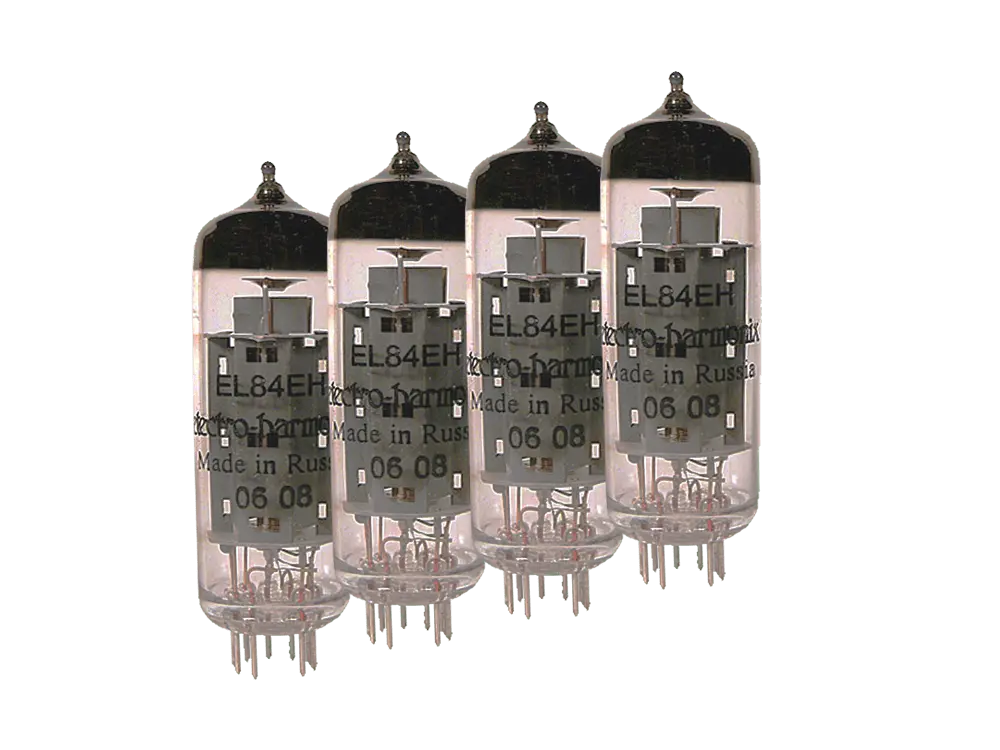

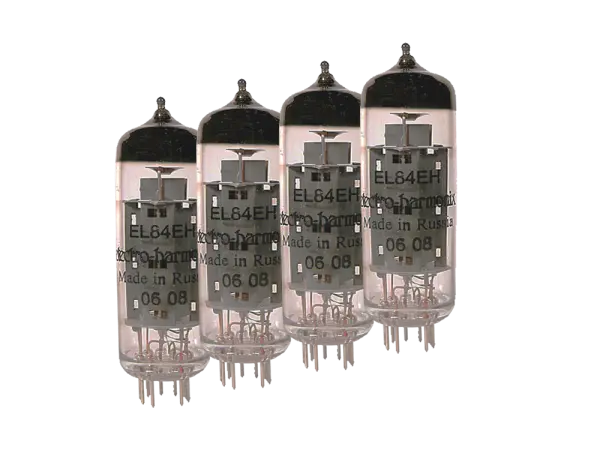

EH EL84 / 6BQ5 - QUAD

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The Ultimate 12AX7. Big, warm, and musical. High Gain, ultra-low microphonics, and superb linearity with a dynamic 3-D sound.

Medium-Mu twin triode driver tube. 3.5 watts dissipation per plate.

EH 12AX7 / ECC83

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

Typical Characteristics

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

Limiting Values

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial
