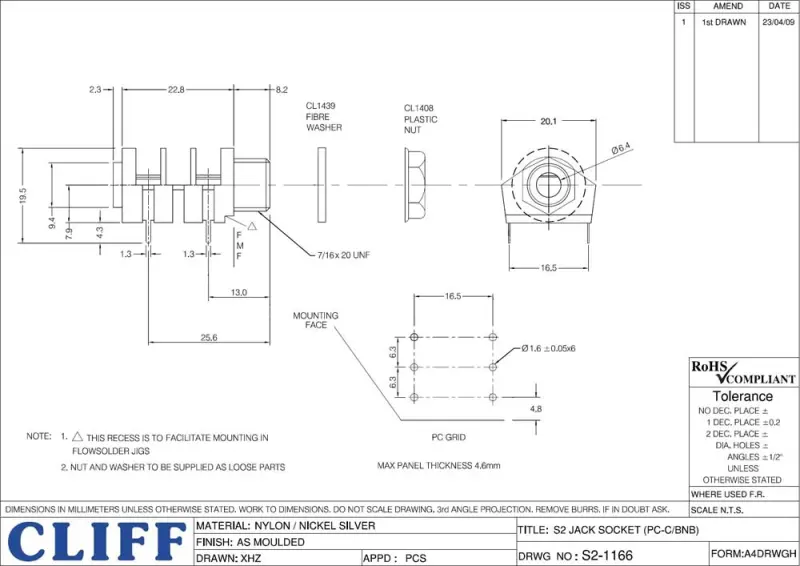

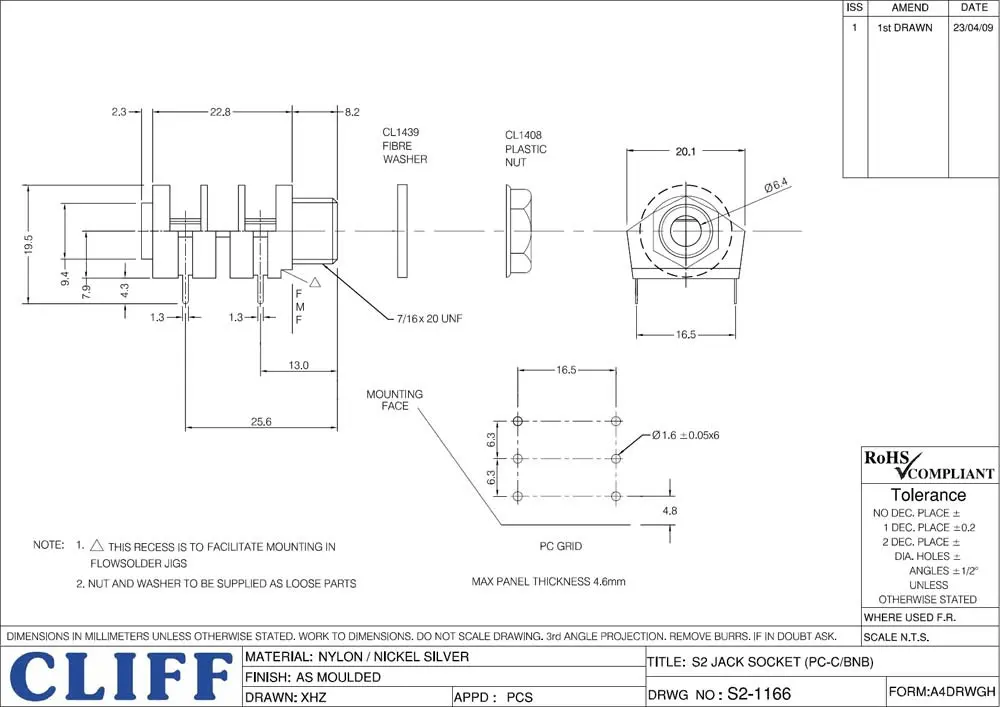

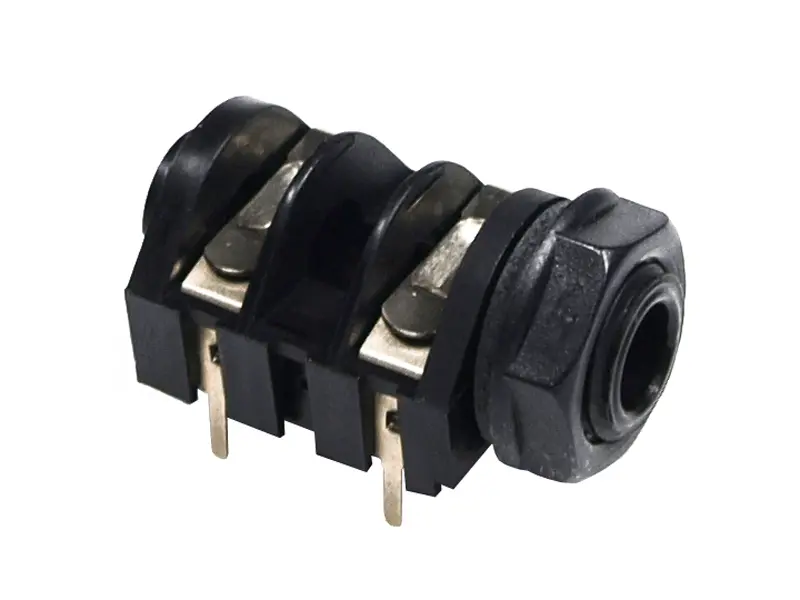

Cliff 1166 6,3 mm mono jack PCB

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!

Specification label. Self adhesive. 50 x 80 mm. Aluminium with satin black print. German text.

• Tube-Town universal basic pcb for stomp-boxes
• Size: 77,5 x 54 mm
• Material: 1,6 mm FR3, blue

• Größe: 51,7 x 29,2 mm
• Material: 1,6 mm FR, rot

• Transistor Polarity: N-Channel
• Drain-Source Breakdown Voltage: 500V
• Gate-Source Breakdown Voltage: +/- 20 V
• Continuous Drain Current: 30 mA
• Case: TO-92
• ROHS: Yes

Files:

• Datasheet

Texture and color just like the Marshall Cane and Orange Weaves, only slightly thinner and thus easier to handle.
Furthermore, the mesh size is a little wider, and therefore the damping of the highs is much less compared with the original fabrics.

• Size (W x L): ca. 70 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

• FAQ Grillcloth

• Rubber foot with steel insert
• Size: d = 38 mm, h = 15 mm
• Pack of 4
• Screws included

Universal size for 10" speakers
Dome diameter:  80 mm

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)
