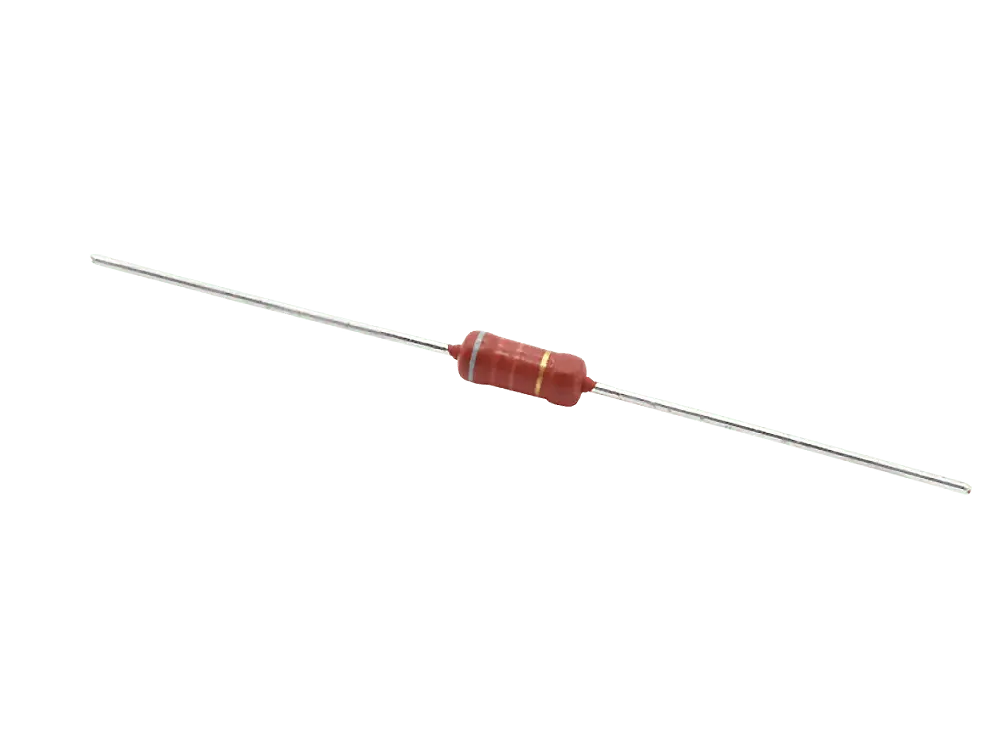

Resistor Metaloxide 2 Watts / 1,8 kOhms

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8,5 mm x 17 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Cover for sealing unneeded socket cutouts in the chassis.
• Standardsize for octal sockets
• Size 40 x 50 mm

•  Diameter: 5 mm
•  Color: Orange
•  If max: 40 mA
•  Forward Voltage : 1,9-2,1 V
•  Luminous Intensity: 1800 mcd

Drill Ø: 12 mm
Rated voltage: 250 VAC
Rated current: 10 A (VDE), 16 A (UL/CSA)

• 2+1 Solder lugs
• lugs brass, tinned

5+2 solder lugs

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 14 mm x 30 mm
• Termination Style: axial

• High Power Resistor
• 5W 5% High Ohm Cement Power Resistors
• Size: 22 x 10 x 9 mm
• RoHS Compliant

The product curing (polymerisation) is carried out under the exclusion of atmospheric oxygen (anaerobic) and the catalytic action of the metal (metal contact). The product is used to secure screws in the state as delivered, without cleaning. Fixates stud bolts, ball and antifriction bearings that typically do not have to be dismantled. Especially suited for highly stressed screw connections.

• Chemical characteristics: Methacrylic Anaerobic Resin
• Colour: Green / fluorescent
• Viscosity: 400 – 700 mPas 25°C Brookfield LV spindle 62; 30U/min
• Density: 1.07 – 1,11 g/ml
• Max. clearance: M20
• Flash point: > 100°C
• Working temperature: optimal at 23°C
• Storage: Cool and dry

• Safety-Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial
