TT E83CC (12AX7 / ECC83 / 7025) - V1
TT E83CC (12AX7 / ECC83 / 7025) - V1
TT E83CC (12AX7 / ECC83 / 7025) - V1
TOP

TT E83CC (12AX7 / ECC83 / 7025) - V1

Product No.:
tte83cc-v1
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.016 kg per piece
25,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

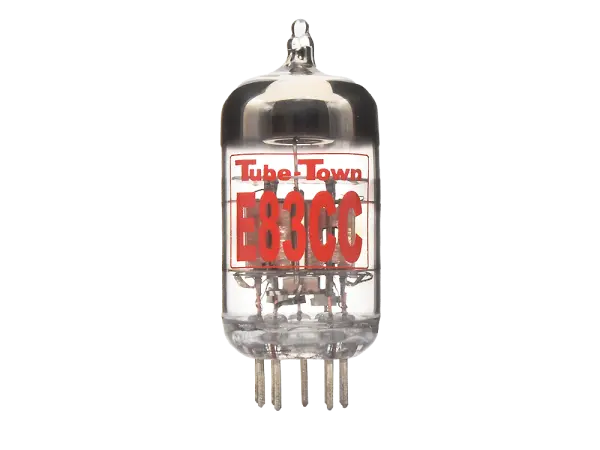

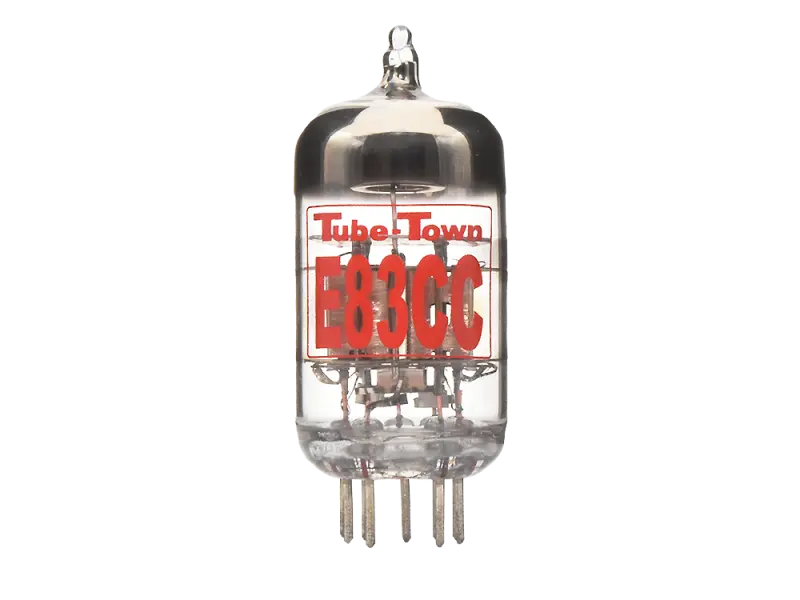

Tube-Town E83CC Preamp-Tube

High-quality 12AX7 / ECC83 / 7025 preamp tube with low background noise and reduced feedback tendency due to short anode plates, as well as a powerful bass and a dense sound. Very suitable for input stages with high amplification or amplifiers with generally high gain.
Dropin replacement for all 12AX7, ECC83, 7025, and E83CC tubes.

Electrical Characteristics

  • Heater voltage (Uf): 6.3V or 12.6V
  • Heater current (If): 300mA at 6.3V, 150mA at 12.6V
  • Anode voltage (Ua): Maximum 300V
  • Grid voltages (Ug1): -2V (typical)
  • Grid voltages: -50V to 0V
  • Anode current (Ia): 1.2mA (typical)
  • Anode power dissipation: Maximum 1W per triode
  • Anode resistance (ra): 62.5kΩ
  • Amplification factor (μ): 100
  • Transconductance (S): 1.6mA/V
  • Input capacitance (Cin): 1.6pF
  • Output capacitance (Cout): 1.6pF

Mechanical Characteristics

  • Socket: B9A (Noval)
  • Number of pins: 9

Pin Configuration

  • 1 Anode (Triode 1)
  • 2 Grid (Triode 1)
  • 3 Cathode (Triode 1)
  • 4 Heater (f)
  • 5 Heater (f)
  • 6 Anode (Triode 2)
  • 7 Grid (Triode 2)
  • 8 Cathode (Triode 2)
  • 9 Center Heater (f)

Application Notes

  • Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
  • Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
  • Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.
