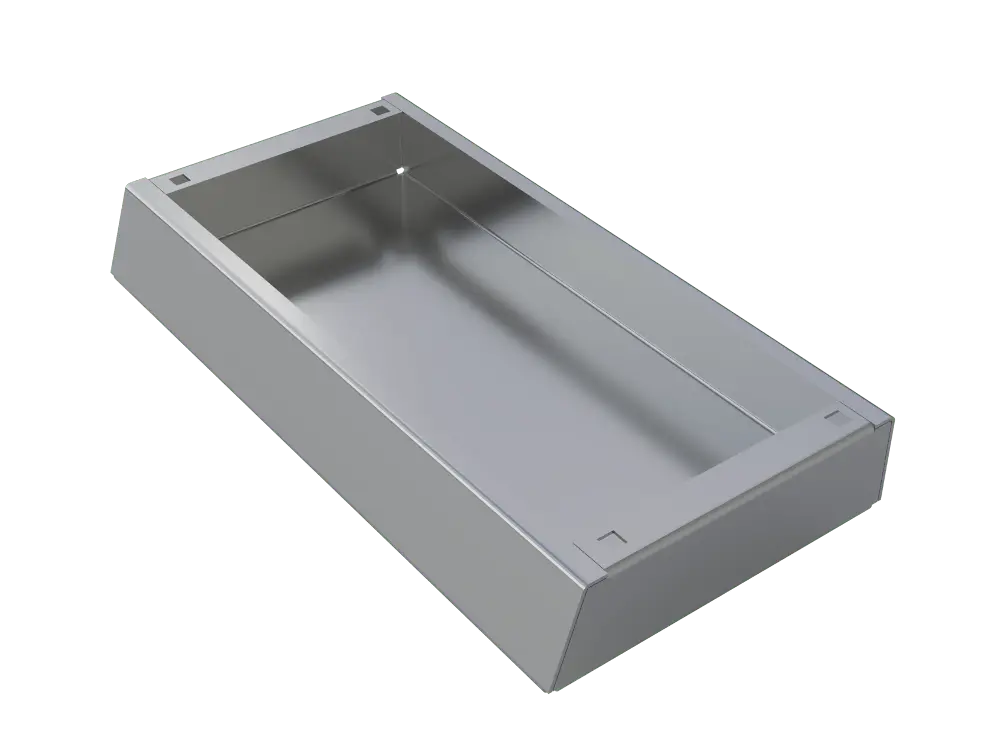

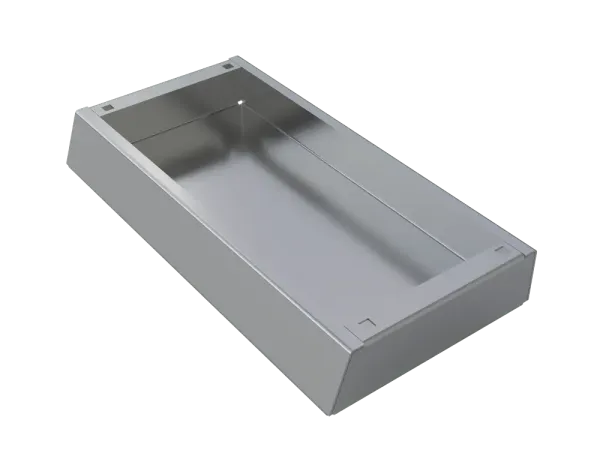

TT-Chassis 068 - Mesa Short Style, bare

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

Retainer for 12AX7 and tubes with a similar size

Retainer for EL84 / EL844Tubes

Tube Shield Noval

• for noval sockets
• Color: black
• High: 55 mm
• Including Base and Shield

Red Nylon Nut for Cliff S2 Jacks

• CL1160
• CL1166
• CL1220
• CL1239

Mounting set for case handles with 4 holes consisting of

•     4 x T-Nut M4
•     4 x Countersunk screw M4x25 mm, nickel-plated

Socket converter to mount Belton noval sockets in cutouts made for octal sockets
Material: 2 mm Aluminium

• Type: Multisection Capacitor
• Capacitance: 32 + 32 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

Kit of an active, serial tube-driven FX-Loop (with parallel option) for a subsequent installation in an existing tube amplifier
The FX-Loop works with one 6112 miniature tube in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

Heater:
6,3 V @ 300 mA

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation
• Documentation - OLD
