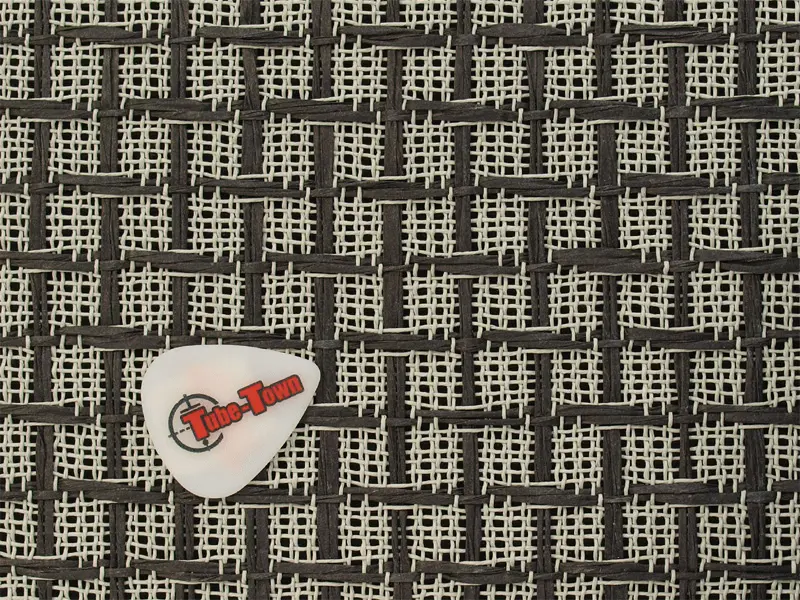

Grillcloth British Large Chequerboard - 80 x 90 cm

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.

Replacement potentiometer for Marshall JCM900, JCM600 and Valvestate 8XXX-Series
16 mm Body, Splitt Shaft, PCB

Replacement potentiometer for Marshall JCM900, JCM600 and Valvestate 8XXX-Series
16 mm Body, Splitt Shaft, PCB

Replacement potentiometer for Marshall JCM900, JCM600 and Valvestate 8XXX-Series
16 mm Body, Splitt Shaft, PCB

Replacement potentiometer for Marshall JCM900, JCM600 and Valvestate 8XXX-Series
16 mm Body, Splitt Shaft, PCB

Pointer Knob "Classic"

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

Files

• Datasheet



The 12” Veteran 30™ speaker from WGS is tonally superior to Celestion's™ Vintage 30™ speaker. The tonal improvement is in the upper-mids. The Veteran 30™ speaker has smoothed out the upper-mid "spike" notorious in the Vintage 30™ speaker.

Unit Weight:  10 pounds

Mounting Information

• Diameter:12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 94.84 Hz
• DC Resistance (Re): 7.99 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 12.15
• Electromagnetic Q (Qes): 0.78
• Total Q (Qts): 0.74
• Compliance Equiv. Vol. (Vas): 18.53 cu ft
• Mech. Compliance of Susp. (Cms): 0.10 mm/N
• BL Product (BL): 13.25 T-M
• Diaphragm Mass Inc. Airload (Mms): 28.88 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.84 db

• matches original "Marshall JTM30 Black + Tan Grillcloth", same manufacturer
• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.

The ET90 is our lastest addition to the ET65 lineage.  Taking its core sound from the ET65, the ET90 gives you more all the way around.  We went to larger motor and a beefier voice coil on this model.  The result is more headroom, more power handling and a bigger feel.  If you've been looking for classic British tone with an "open" feel and a lot of power, the ET90 is your new favorite.

Thiele-Small Parameters

• Resonant Frequency (Fs): 100.14 Hz
• DC Resistance (Re): 8.04 Ohm
• Coil Inductance (Le): 0.33 mH
• Mechanical Q (Qms): 6.08
• Electromagnetic Q (Qes): 0.78
• Total Q (Qts): 0.69
• Compliance Equiv. Vol. (Vas): 16.03 cu ft
• Mech. Compliance of Susp. (Cms): 0.08 mm/N
• BL Product (BL): 13.95 T-M
• Diaphragm Mass Inc. Airload (Mms): 29.95 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.94 db
