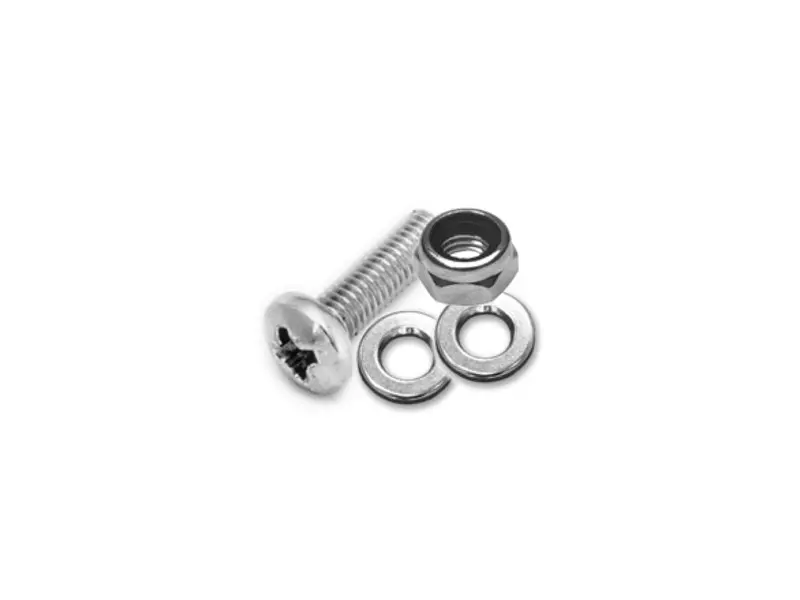

Fixing screw set for Torodial-Transformers, M5*60 mm

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1: 300-0-300 V @ 0,126 A (red-green/white-blue)
• Sec 2: 0-5-6,3V @ 2 / 1 A (orange-pink-gray)
• Sec 3: 3,15-0-3,15 V @ 3,25 A (black-brown-purple)
• long leads ca. 200 mm
• Size: 102 x 52 mm

A customer from Sweden has send us this info:
this PT can be used to replace the power transformer in an Egnator Tweaker 15. Please see:
http://www.rig-talk.com/forum/viewtopic.php?f=26&t=169993
and
http://www.thegearpage.net/board/index.php?threads/egnater-tweaker-15-mods-if-any.1184645/page-4
Tweaker 15 original PT

Primary windings
1; Brown - Black (117 VAC)
2; Blue - White (100VAC)
For 230 VAC use :
Blue and Black cables are connected together
and Brown and White cables connected to 230 VAC

Secondary windings
1; Red-Black-Red ( 290 VAC - Center Tap[ground] - 290 VAC)
   Connections on circuit board = QC8 -- QC10 -- QC9

2; Green-Black-Green ( 3.15 VAC - Center Tap - 3.15 VAC) Heater
    Connections on circuit board = QC23 -- QC3 -- QC20



• Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
• Sec 1: 250 V @ 0,12 A (red / rot)
• Sec 2: 6,3 V @ 3 A (green / grün)
• Sec 3: 12,6 V @ 1 A (purple / lila)
• freie Enden / long leads ca 200 mm
• h= ca.52 mm d= ca.102 mm
• 50/60 Hz EN 61558

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1: 150-0-150 V @ 0,4 A (Blue-white/green-red)
• Sec 2: 6,3 V @ 7,0 A (purple-black/CT: brown)
• Sec 3: 60 V @ 0,1 A (grey)
• Sec 4: 15 V @ 1,0 (orange)
• Größe/Size:118 x 60 mm
• ta40 / 50/60Hz EN 61558

• Pri: 0-230 V (yellow)
• Sec1: 260 - 0 - 260 V @ 0,1 A (red - green / white - blue)
• Sec2: 3,15 - 0 - 3,15 V @ 3 A (orange - brown - purple)
• Sec3: 5 V @ 2 A (black)
• long leads ca. 200 mm
• d = 92 mm h = 45 mm
• 50/60Hz EN 61558

• Self tap screw
• flange head
• 4.2 x 16 mm, black
• Extra Flat - ideal for the mounting of the corners
• Pack with 25 pcs.

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1: 300-0-300 V @ 0,126 A (red-green/white-blue)
• Sec 2: 0-5-6,3V @ 2 / 1 A (orange-pink-gray)
• Sec 3: 3,15-0-3,15 V @ 3,25 A (black-brown-purple)
• long leads ca. 200 mm
• Size: 102 x 52 mm

A customer from Sweden has send us this info:
this PT can be used to replace the power transformer in an Egnator Tweaker 15. Please see:
http://www.rig-talk.com/forum/viewtopic.php?f=26&t=169993
and
http://www.thegearpage.net/board/index.php?threads/egnater-tweaker-15-mods-if-any.1184645/page-4
Tweaker 15 original PT

Primary windings
1; Brown - Black (117 VAC)
2; Blue - White (100VAC)
For 230 VAC use :
Blue and Black cables are connected together
and Brown and White cables connected to 230 VAC

Secondary windings
1; Red-Black-Red ( 290 VAC - Center Tap[ground] - 290 VAC)
   Connections on circuit board = QC8 -- QC10 -- QC9

2; Green-Black-Green ( 3.15 VAC - Center Tap - 3.15 VAC) Heater
    Connections on circuit board = QC23 -- QC3 -- QC20



Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: Electrolytic capacitor
• Capacitance: 4700 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 49 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size
