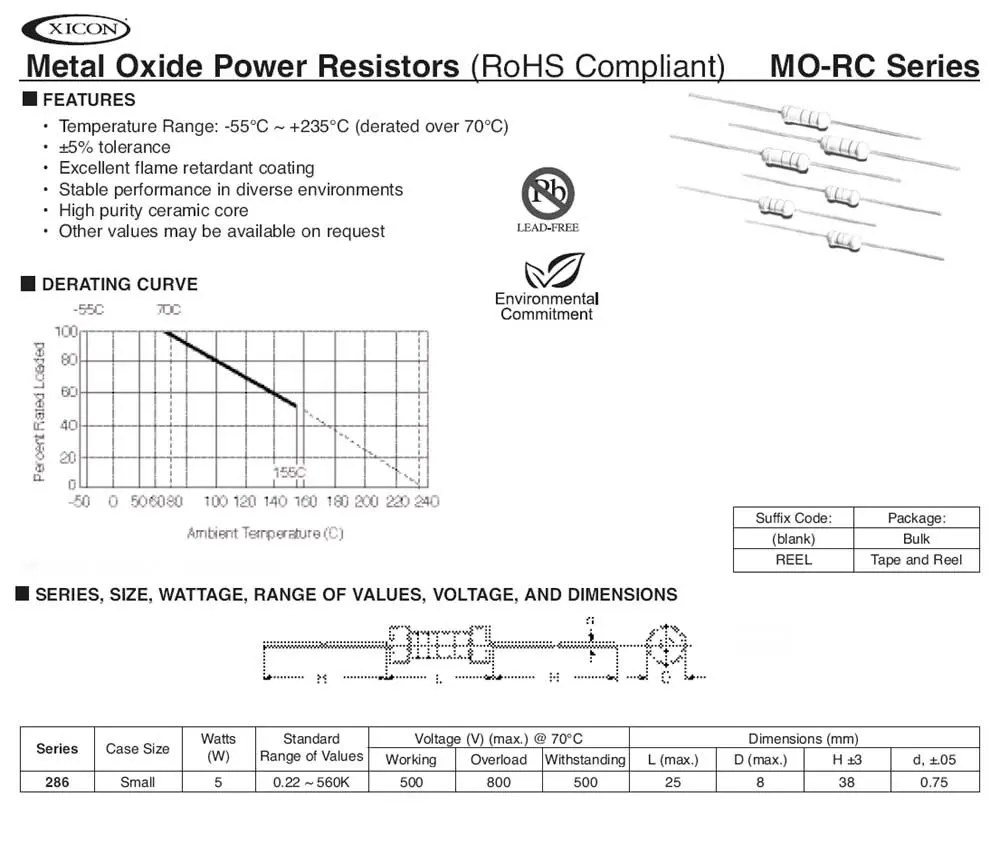

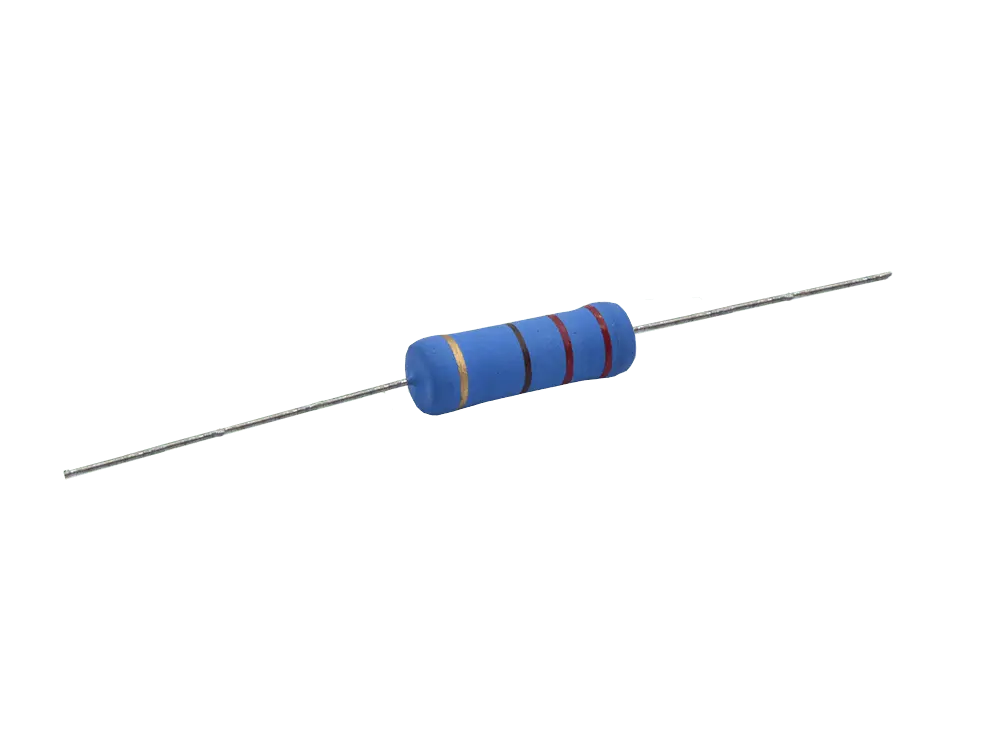

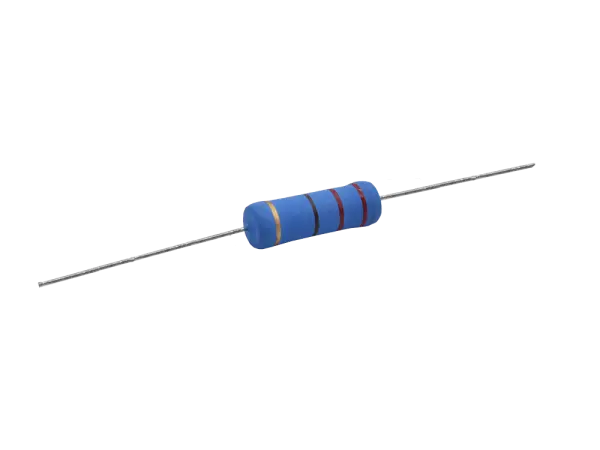

Resistor Metaloxide 5 Watts / 330 Ohms / Small Size

• Resistance: 50k Ohm
• Power: 0,25 W
• Max Voltage: 250 V
• Grid 12,5/10 mm
• Ø: 15,0 mm
• h: 7,0 mm

• Resistance: 25k Ohm
• Power: 0,25 W
• Max Voltage: 250 V
• Grid 12,5/10 mm
• Ø: 15,0 mm
• h: 7,0 mm

Kit TT PSU Mini Center Tap

Standard power supply for power transformers with center tap. NOT recommended for tube rectifiers because the first stage has a capacity of 100 µF which is too much for most tube rectifiers. Some capacitors need to get changed if it should be used with a tube rectifier (further informations in the datasheet).

The kit includes all components except a power transformer and a choke for building a PSU for tube amps. If you want to use a choke instead of the included 5 W resistor you must order the choke separately. The PSU is recommended for tube amps up to 50 Watt. The size of the PSU is only 97 x 55 mm and it has a height of ca. 40 mm (without spacer bolts).

Please refer to the attached schematic for more informations about the layout and design of the PSU.

Tip: use Duncanamps' PSU Designer to simulate and calculate power supplies.

Files:

• Datasheet

• Core M6
• Primary: 120-230V-240V @ 50Hz
• Secondary HT and bias, 300V-50V-0-300V @ 300mA
• Secondary Heater: 3.15V-0-3.15V @ 6A

Files:

• Datasheet

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 14 mm x 30 mm
• Termination Style: axial

MiL-C-17, type RG 187
heat resistant

• Insulation: PTFE, 1.6 mm D.
• Inner conductor: Staku stranded wire 7 x 0.10 mm, silver-plated
• Inner conductor diameter: 0.30 mm
• Outer conductor: silver-plated copper braid
• Outer insulation: PTFE. Outer diameter: 2.69 mm
• Wave impedance: 75 ±3 ohm
• Operating temperatures: –55 to +200 °C
• Capacitance: approx. 63 pF/m.
• Operating voltage: max. 1000 V
• Attenuation (100 m) at 200 MHz: approx. 34.4 dB
• Outer insulation: white
• Length: 1 m
