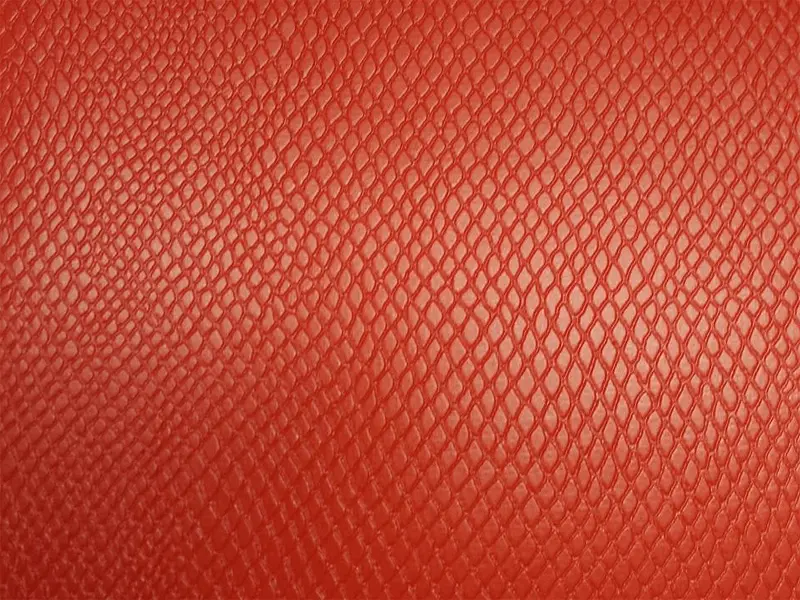

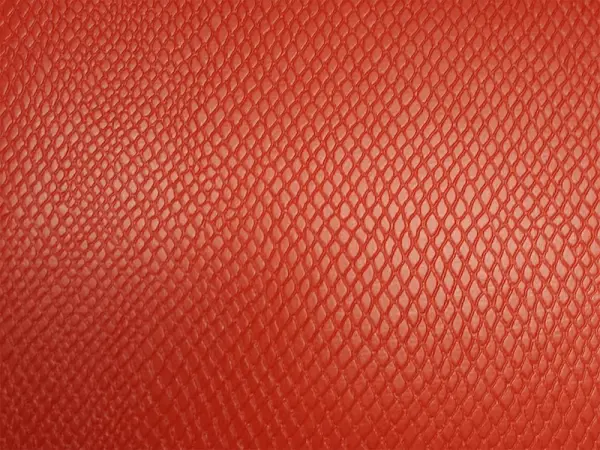

Tolex Tube-Town Snakeskin Red

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

With the Retro 10, we set out to build something with all the qualities we enjoy about our Retro 30 in a 10” speaker. It’s got a tight bottom, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.

Unit weight: 7.5 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 115.58 Hz
• DC Resistance (Re): 6.27 Ohm
• Coil Inductance (Le): 0.17 mH
• Mechanical Q (Qms): 6.72
• Electromagnetic Q (Qes): 0.66
• Total Q (Qts): 0.6
• Compliance Equiv. Vol. (Vas): 16.26 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 10.99 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.39 grams
• Surface Area of Cone (Sd): 324.29 cm squared
• Sound Pressure Level (spl): 100.62 db

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 mm Knurled Shaft
• Size: 22.75 x 18.7 mm

• Type: Skinny Pointer Knob
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 15 x 15,9 mm
• Mounting: Set-Screw

Strap Handle Heavy Duty

• Plastic covered with steel inner core
• Steel, black plated end plates
• Black
• Screws and t-nuts included

• Mesh, black
• Size: 660 x 150 mm
• Meshsize: 12 x 6 x 1 x 0,5 mm
• Net Weight: ca. 150 g

Cabinet corner metal w/ cutaway 3 leg, black
Internal radius: 12 mm

Set of metal corners for housing consisting of:

• 8 x Cabinet corner, 2 leg, black  (pe-c1835/40)
• Internal radius: 12 mm
• Steel, powder coated
• 16 x Screws with extra flat head, black

• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

Panel Mount Potentiometer

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

Panel Mount Potentiometer

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm
