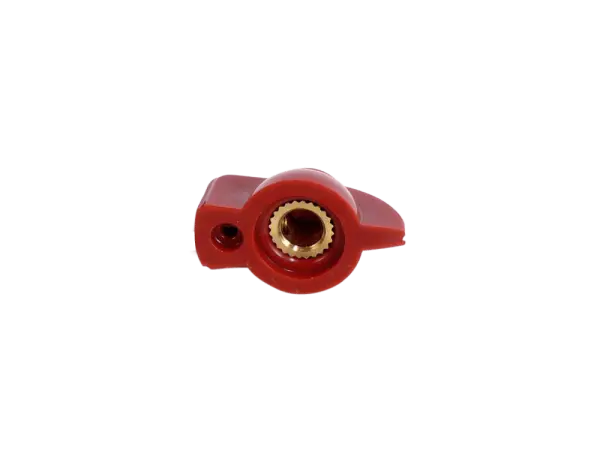

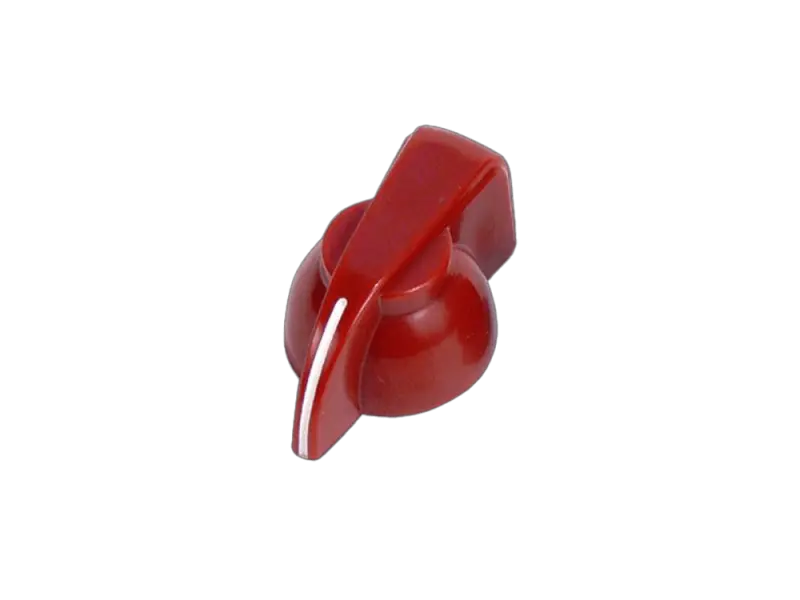

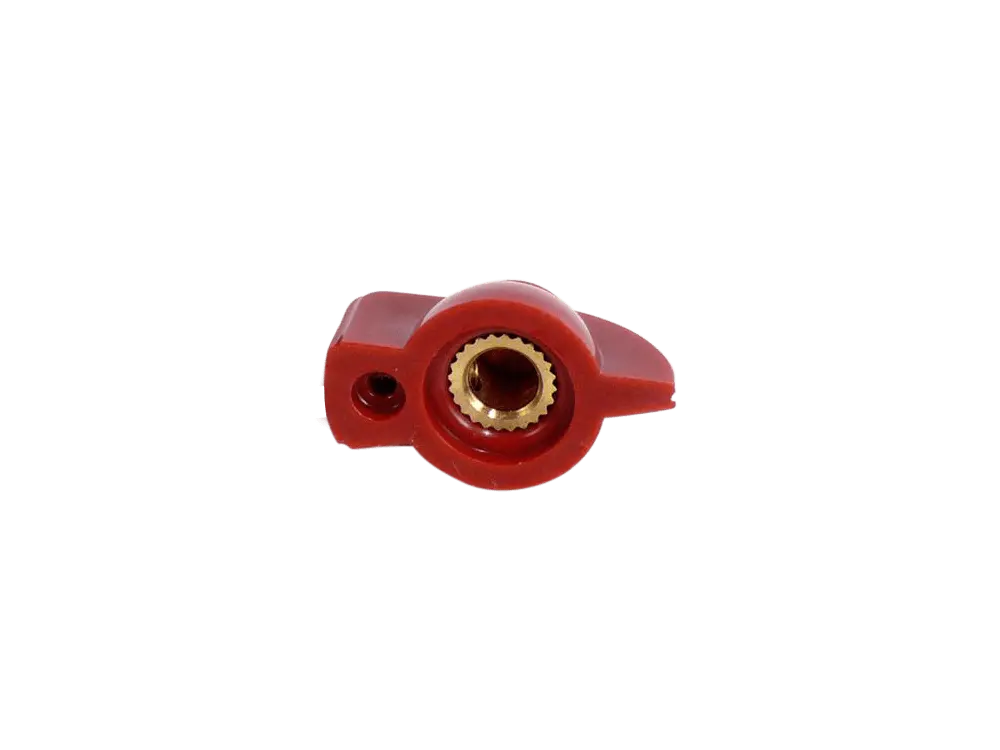

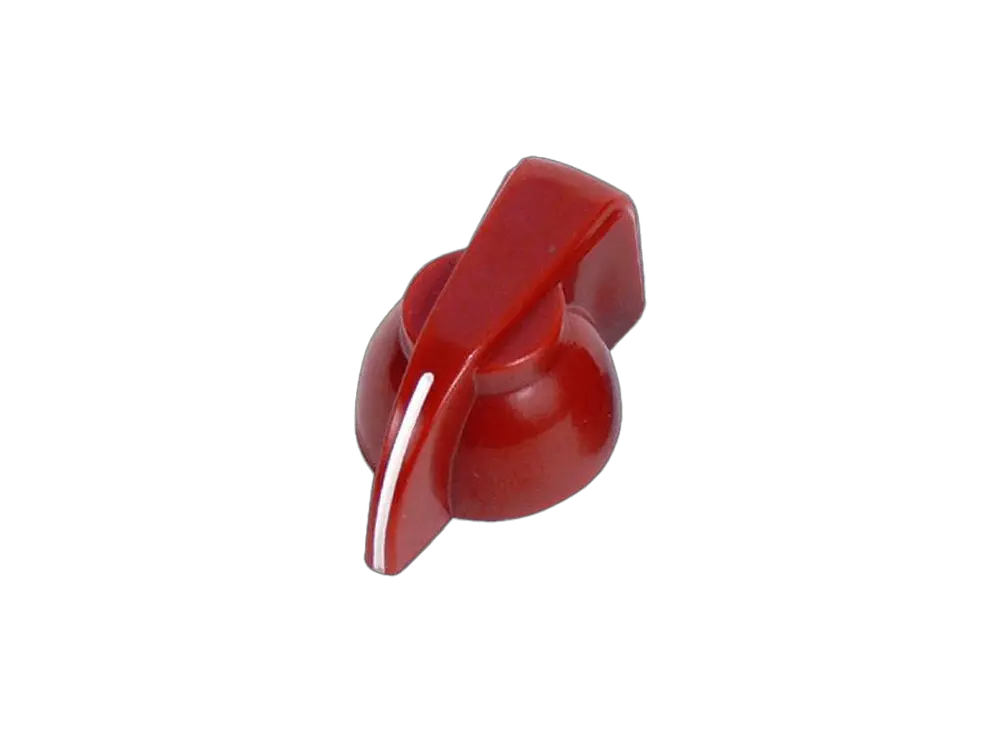

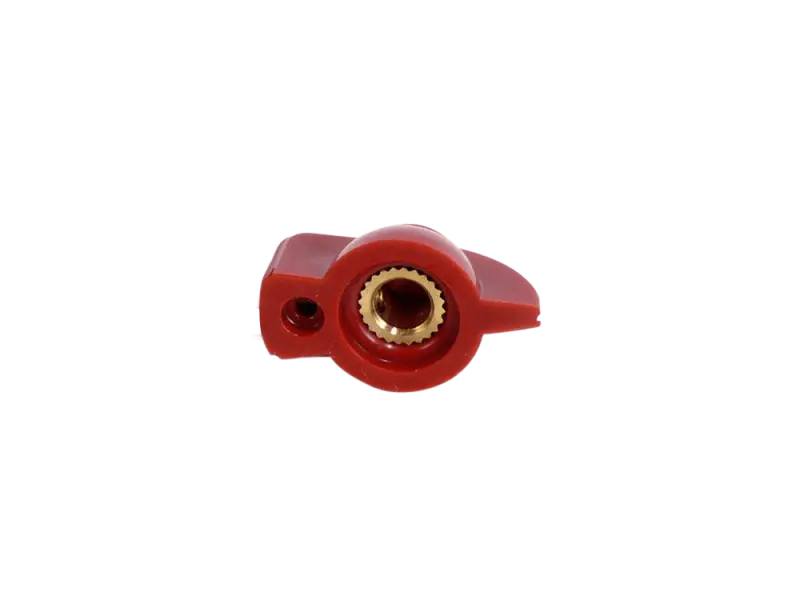

Knob Chickenhead Redwine

An AC30 / EF86 - One Channel all tube amp

Set of componentes for building the TT Spit F. Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.
Soundclip of the AC18, made by one of our customers: https://youtu.be/eZ-6LP3p5ns

INCLUDED:

• Outputtransformer Hammond 1750PA
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since batch 26. Feb. 2020)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Signal lamp round, orange

• Operating voltage: 230 V~
• Power: 0,05 W
• Light/housing color: orange
• Connection: soldering lugs
• Installation Ø: 10 mm
• Installation depth: 35 mm
• Overall dimensions (ØxL): 12x42 mm

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

• Faceplate for TT kit AC18
• Color: #C01 black / white
• Material: 1.5 mm Transply
• Front and rear panel

Files:

• Template

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
