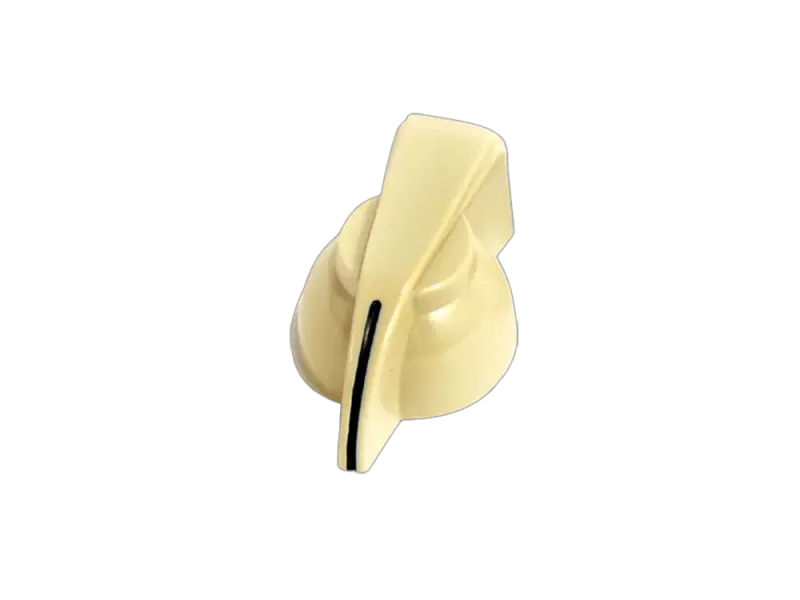

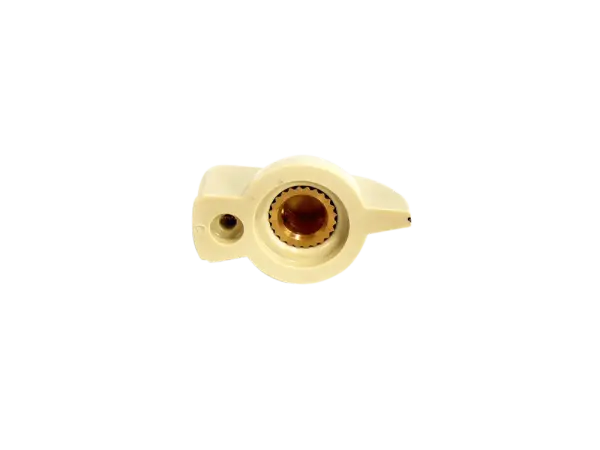

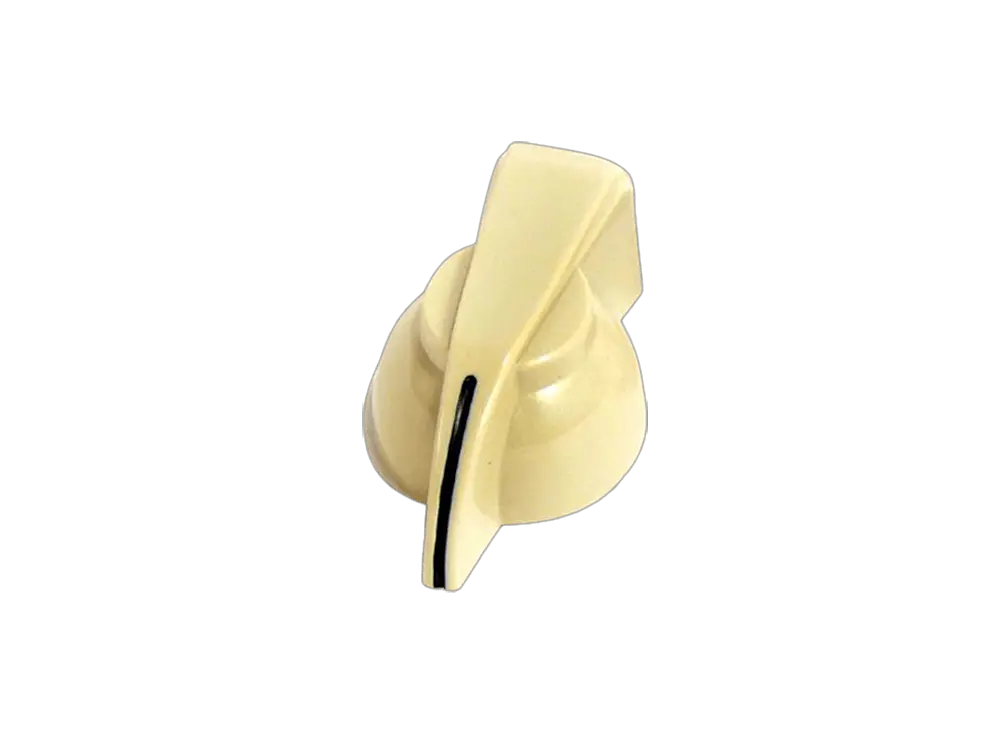

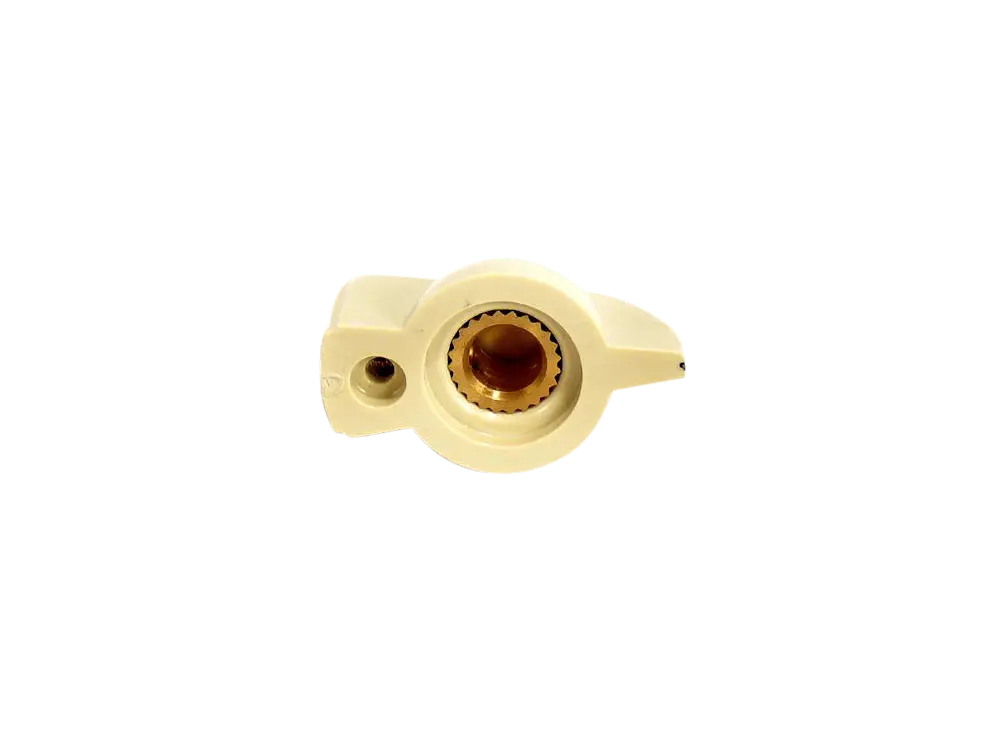

Knob Chickenhead creame

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size 30,5 x 16 mm
• Mounting: Set-Screw

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

• Datasheet

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

TT-Chassis Fender Style 5E3
Dimensions: 369 x  67 x 106 mm (W x H x D)
Lettering: Standby - Fuse - ON - Tone - Volume - Bright - Normal

Attention:
The Hammond Powertransformer 290AEX / 291AEX does not fit onto this chassis. Please use
290BEX/291BEX instead. The platevoltage of the 290BEX is 10V higher and it has a bias tap too, but that is
no problem!

Protective contact plug (Type F, CEE 7/7) > Loose cable ends.
The power cable with open ends and crimped wire end sleeves for confectioning. This power cable comes with a plug (angled) for connecting to electrical devices. The power cable can be creatively and versatilely used.

• Connection Type: Protective contact plug (Type F, CEE 7/7)
• Connection 2 Type: Loose cable ends
• Maximum Current Rating: 10 A
• Operating Voltage: 250 V (AC)
• Cable Length: 2m
• Conductor Cross-section: 0.75 mm²
• Cable Type: H05-VV-F3G
• Color: Black
• Markings: CE

This universal power cable is versatile and can be used for a variety of applications. It is perfect for replacing an old or damaged power cable.

• Connections: Schuko plug (Type F, CEE 7/7) and IEC C13 socket (cold device connection)
• Power: Max. current rating 10A, operating voltage 250V (AC)
• Cable: Cable type designation H05-VV-F3G, cable length 1.8m, conductor 0.75 mm²
• General: Color black, markings CE, WEEE, Packaging Type Retail Polybag

• Output Transformer 125A10B / 022923 Push-Pull
• for Princeton Reverb, Tweed Deluxe
• Pri: 8500 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 15 Watt

Files:

• Datasheet

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet
