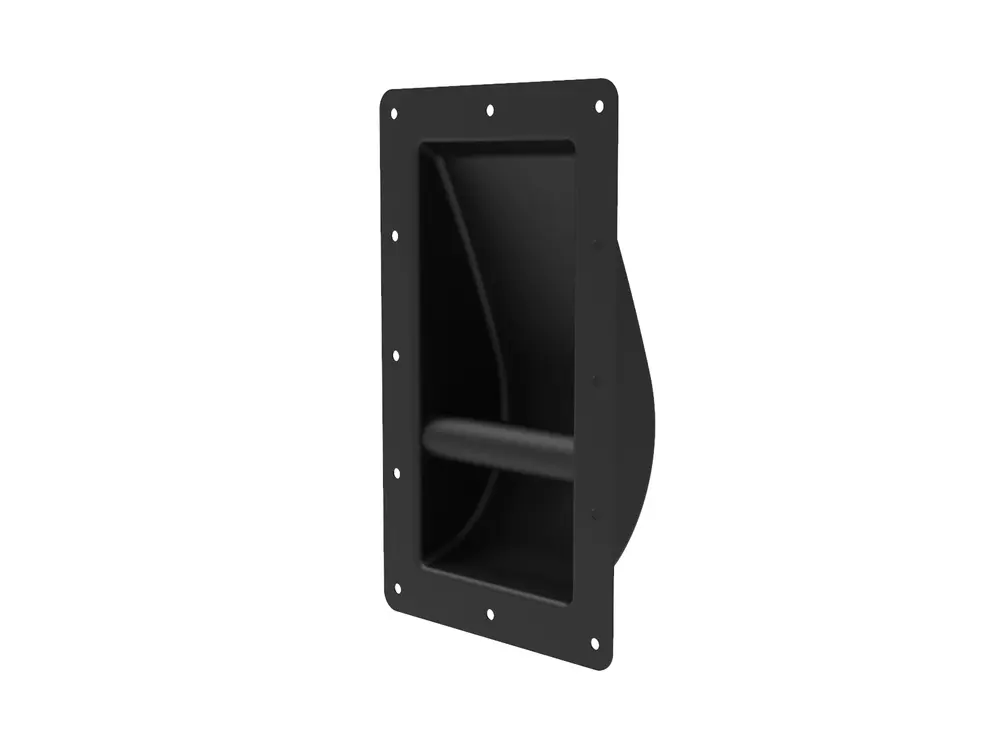

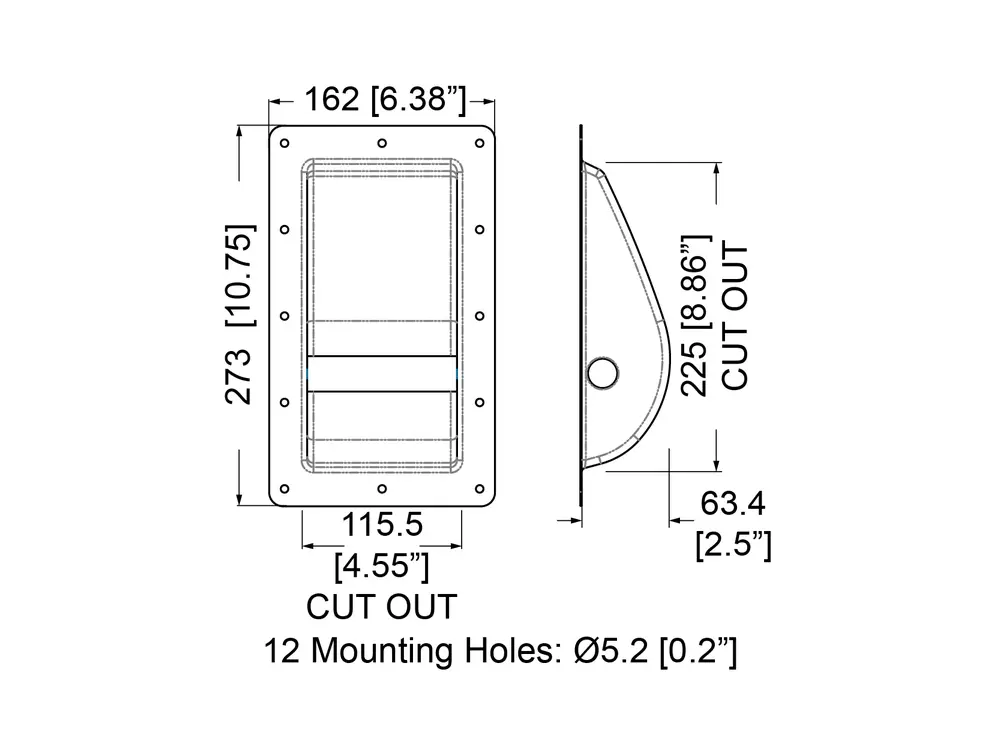

Steel bar handle black, large

Universal Mono/Stereo Terminal

for the use with two 8 Ohm speakers the following configurations are possible:

• 4 ohm mono
• 8 ohm left + 8 ohm right stereo
• 8 ohm left only mono
• 8 ohm right only mono
• 16 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

Colorcodes:

• black: L-
• red: L +
• green: R -
• white: R +

Files:

• Datasheet

Push In 50 mm / 2" Castor w. Metal Socket
Carry Weight per wheel: 20 kg / 44lb

Superflat 6.3 mm jack plug, massive pin with gold-plated tip, solder version, black metal housing, 90° angled, moisture-repellent insulation, cable Ø 4.0 - 6.4 mm, with clamping strain relief, ideal for space-saving cabling of effects pedal boards.

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: angled
• Connection type: solder connections
• Housing: metal, extra flat
• Color: silver
• Cable pickup: max 7 mm
• Manufacturer: HiCon

• Size: ca. 90 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824k)
• High Quality
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Outside Diameter: 13,35 mm
• Inside Diameter: 5,30 mm
• Pack with 12 pcs.
