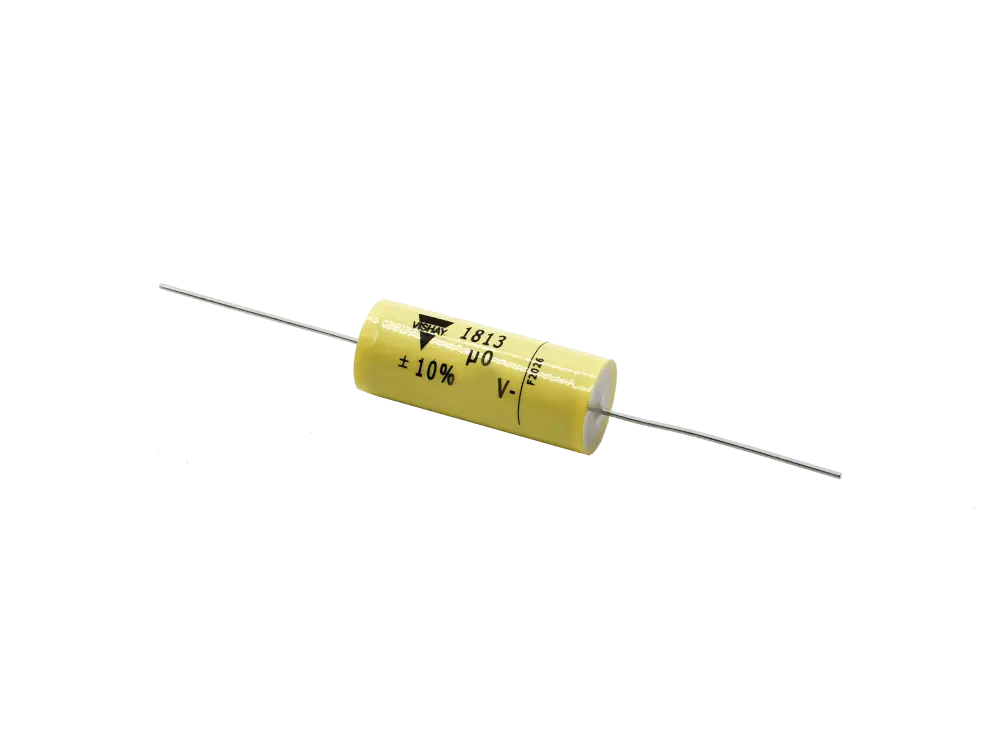

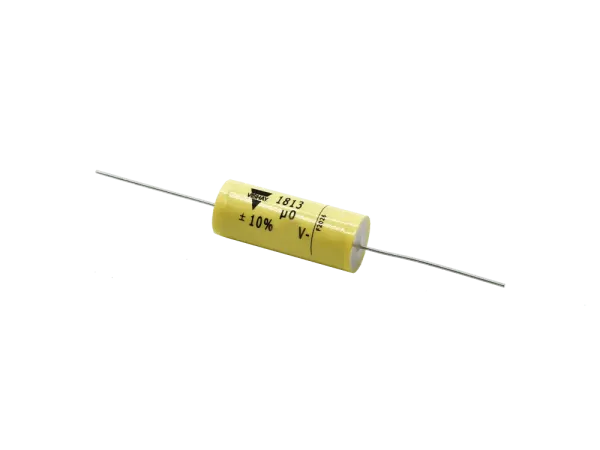

Roederstein MKT 1813 0,68µF / 250 V DC

Description

Type: Metalized Polyester Film Capacitors
Voltage Rating: 250 V
Tolerance: +/- 10%
Operating Temperature Range: - 40°C / + 85 °C
Termination Style: axial
