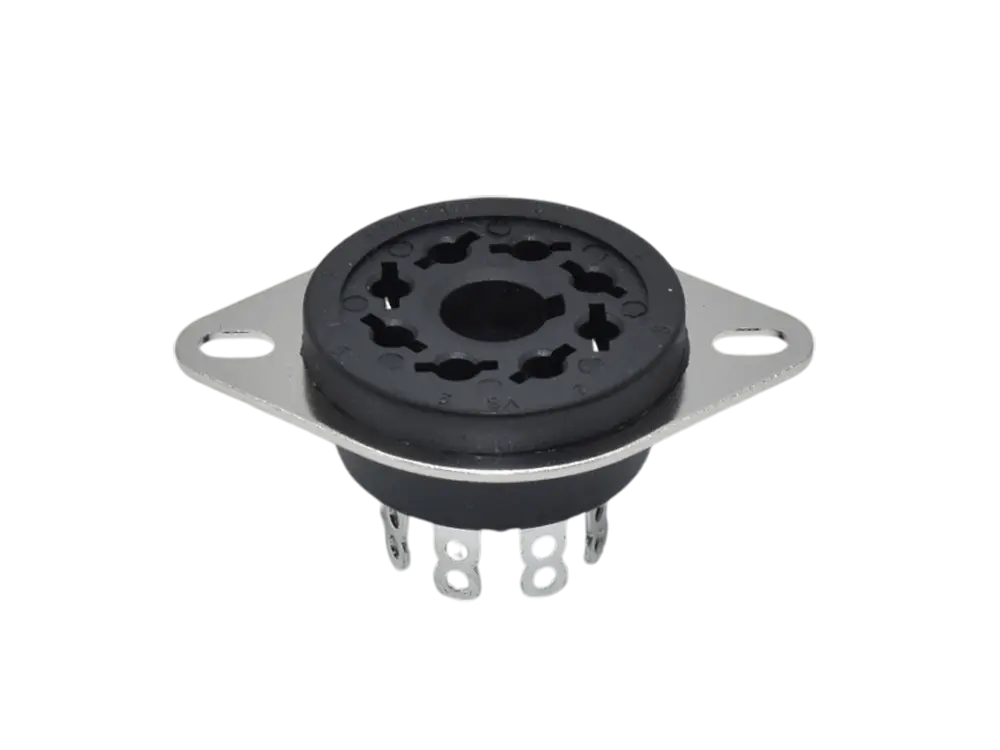

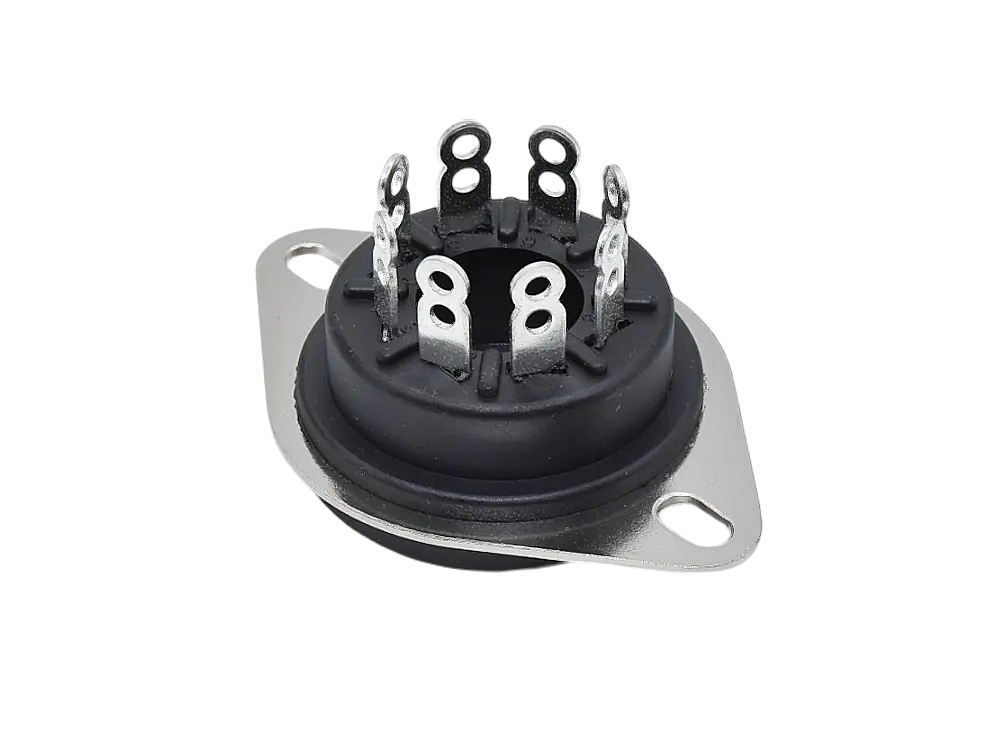

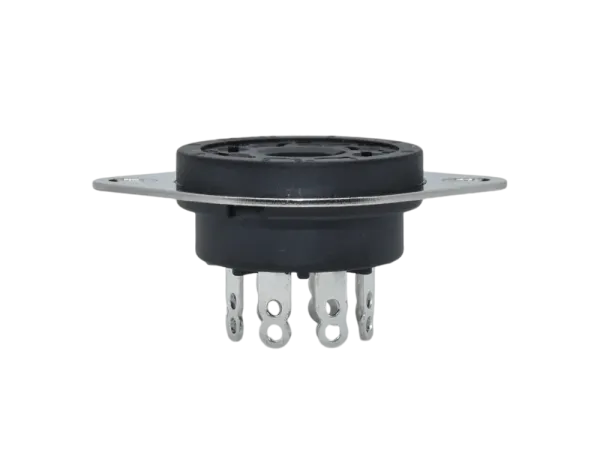

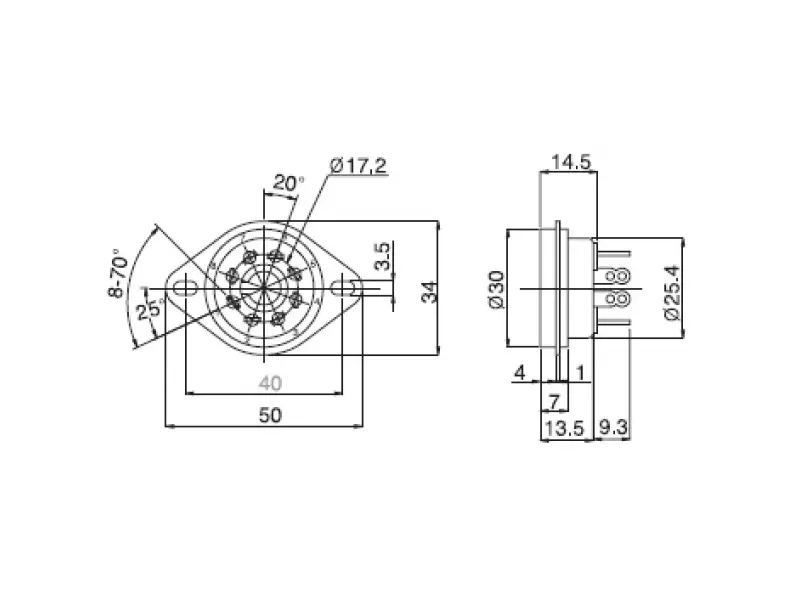

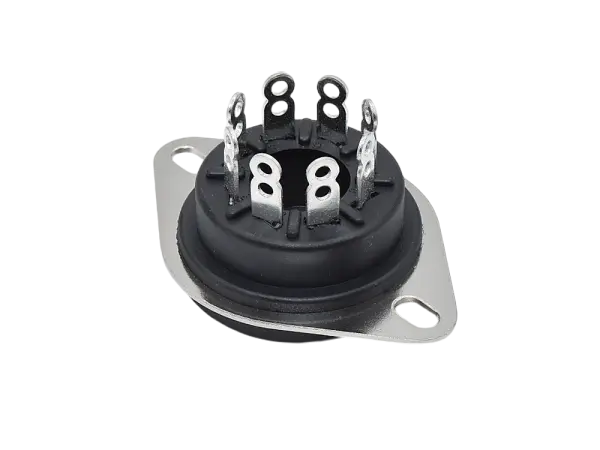

Socket Octal Belton, Chassis VTB8, black

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Type:Toggle Switch
• Version:SPST, ON-OFF
• Rating: 3A / 250V, 6A / 125V
• Insulation resistance: 100MΩ min.
• Dielectric strength: 1000V min.
• Operating Life: 25.000 cycles
• Drill Ø: 12 mm
• Termination Style: solder-lugs

6+1 solder lugs

• Length: 240 mm
• Width: 55 mm
• Solder Lugs: 2 x 30
• Distance between Solder Lugs: 8,3 mm
• Laminated Paper

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Output-Transformer Push-Pull
• for JCM800 / JMP 50 Watt
• Pri: 3200 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 50 Watt

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm
