Carbonfilm Resistor 22k / 1 Watt - Pack of 5

Mobile Preview: Carbonfilm Resistor 22k / 1 Watt - Pack of 5

Carbonfilm Resistor 22k / 1 Watt - Pack of 5

Product No.:: rcf-22k-5
: In stock. Delivery time depends on the destination country*
Stock:: Pack
RoHs:: conform
Weight:: 0.001 kg per Pack

0,80 €
0,16 € per Piece

incl. VAT excl. Shipping costs

Pack:

Quantity

Bookmark

Ask Question

Description

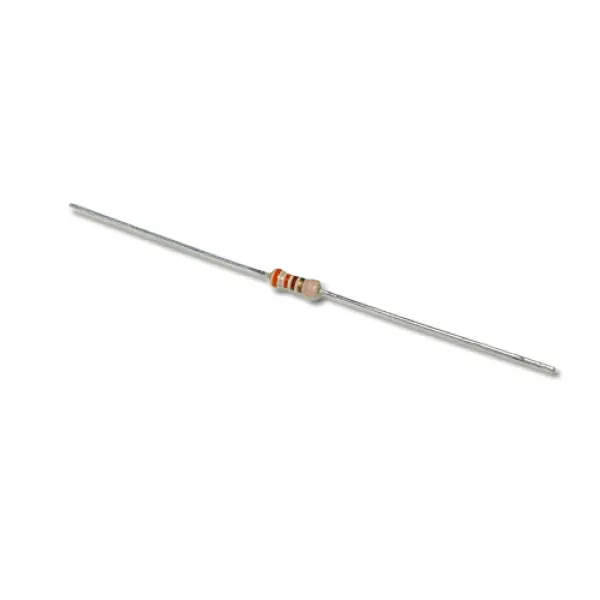

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS
