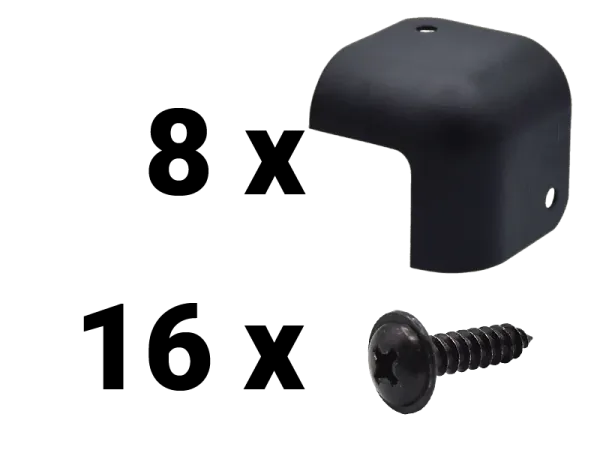

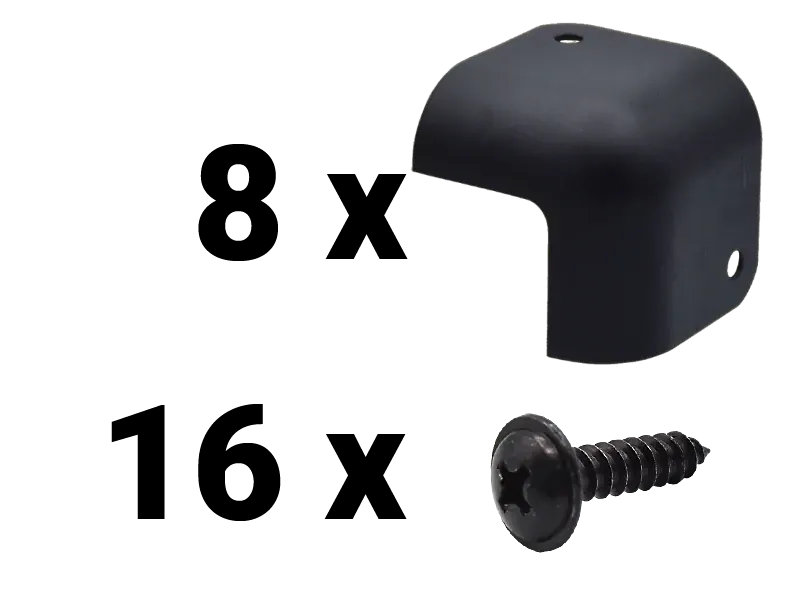

Set Corners - 2 leg, black incl. Screws

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.

Kontaktspray - 200 ml

The T6-Oszillin contact cleaner is specially formulated to clean both fine and coarse mechanical components. This 200 ml spray is designed to repel water and prevent moisture-related ignition issues in items such as batteries or motors. It improves the conductivity of switches, relays, and contacts, providing long-lasting protection. Additionally, it safeguards damaged precious metal layers from corrosion and removes old, hardened lubricants such as oils and greases without leaving any discoloration thanks to its colorless and odorless formula.

Specifications

• Volume: 200 ml

Attention: No shipping with FedEx possible.

Files:

• Safety Datasheet

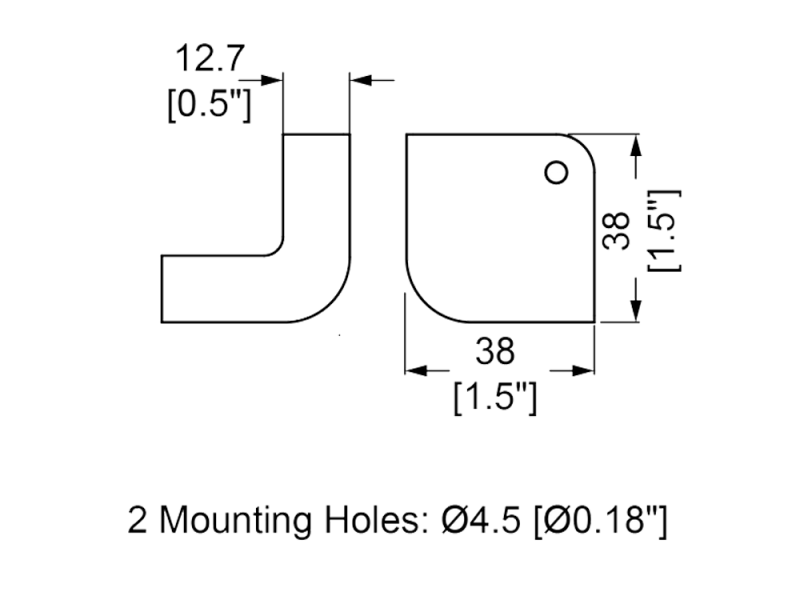

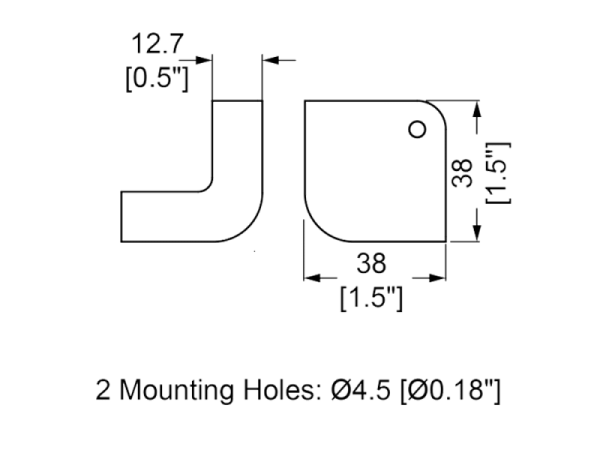

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824k)
• High Quality
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Size: ca. 75 x 100 cm (only available in this size)
• Similar to the Fender Black-White-Silver Grillcloth
• Material: 94 % Polypropylen, 6 % Acrylic
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

• Rubber foot with steel insert
• Size: d = 38 mm, h = 25 mm
• Pack of 4

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

With the Retro 10, we set out to build something with all the qualities we enjoy about our Retro 30 in a 10” speaker. It’s got a tight bottom, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.

Unit weight: 7.5 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 115.58 Hz
• DC Resistance (Re): 6.27 Ohm
• Coil Inductance (Le): 0.17 mH
• Mechanical Q (Qms): 6.72
• Electromagnetic Q (Qes): 0.66
• Total Q (Qts): 0.6
• Compliance Equiv. Vol. (Vas): 16.26 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 10.99 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.39 grams
• Surface Area of Cone (Sd): 324.29 cm squared
• Sound Pressure Level (spl): 100.62 db

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 mm Knurled Shaft
• Size: 22.75 x 18.7 mm

• Type: Skinny Pointer Knob
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 15 x 15,9 mm
• Mounting: Set-Screw
