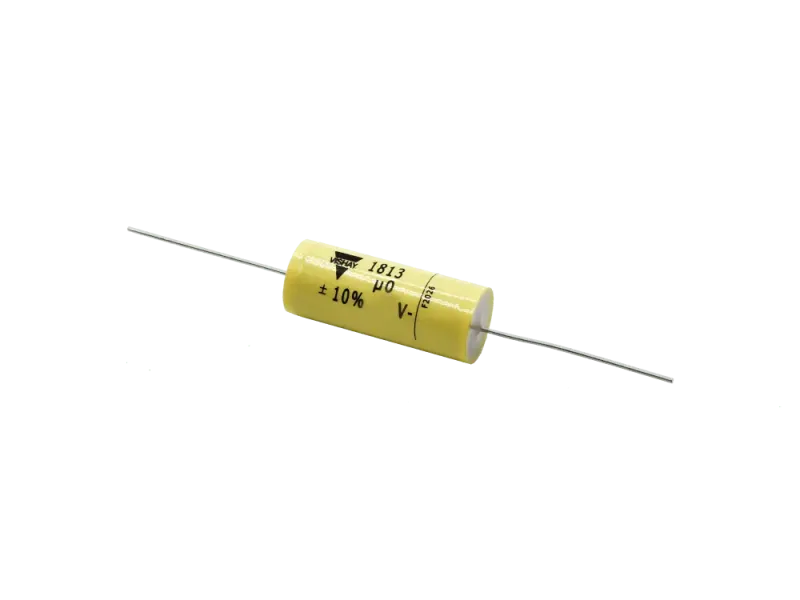

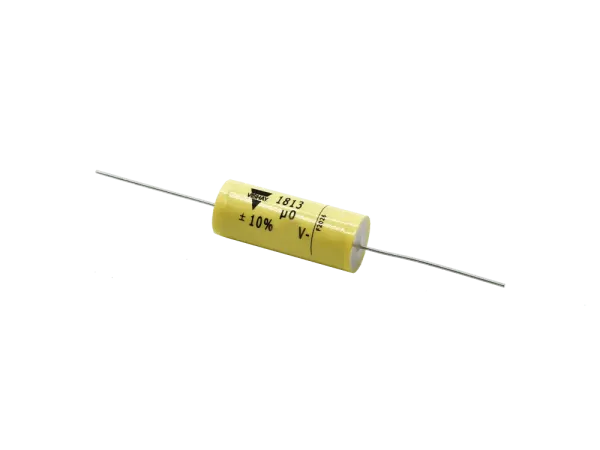

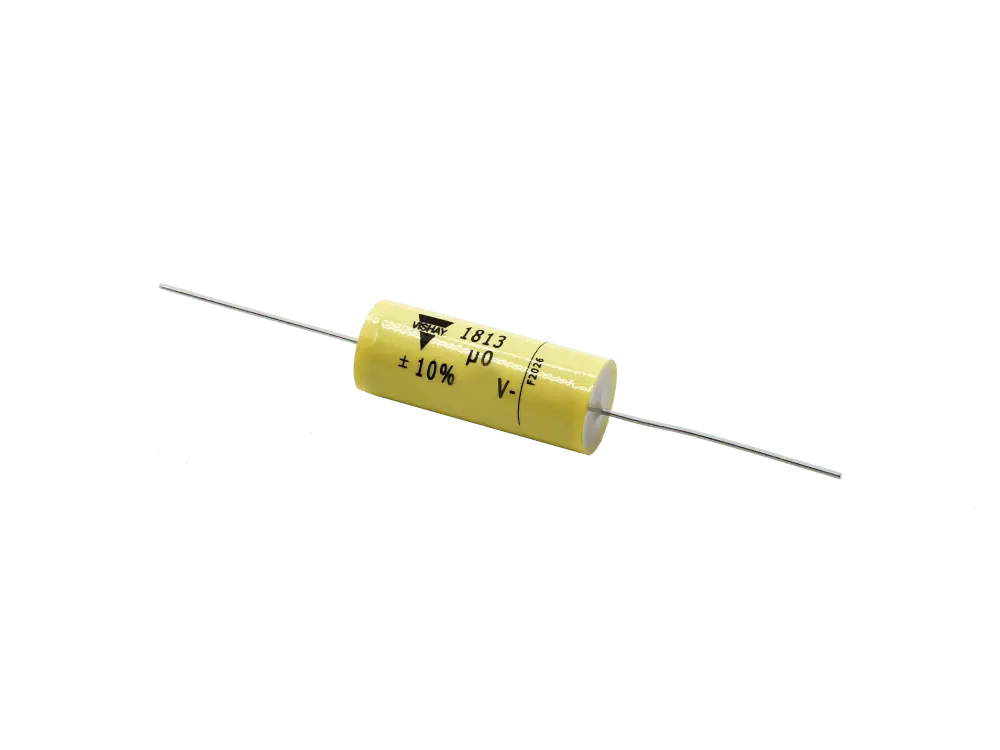

Roederstein MKT 1813 1µF / 250 V DC

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 250 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

Specification label. Self adhesive. 104 x 71 mm. Aluminium with satin black print. English text.

• Type: Rocker Switch
• Version: DPST  ON-OFF,Lighted red, labeled I/O
• Recess: 24 x 19,5 mm
• Chassis cut-out: 21,9 x 19,4 mm
• Mounting: Snap-in
• Rating: 250 V / 6 A
• Termination Style: solder lug / quick-connect terminals

• Potentiometer used in many Peavey amp and mixer models like Classic 30.
• Shaft diameter Ø: 4.6 mm
• Screw and washer not included


• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Tube-Town Black Weave has the same structure as the Marshall Cane grillcloth but in black.

Further information and notes on Grillcloth

• FAQ Grillcloth

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

Fast Avalanche Sinterglass Diode
