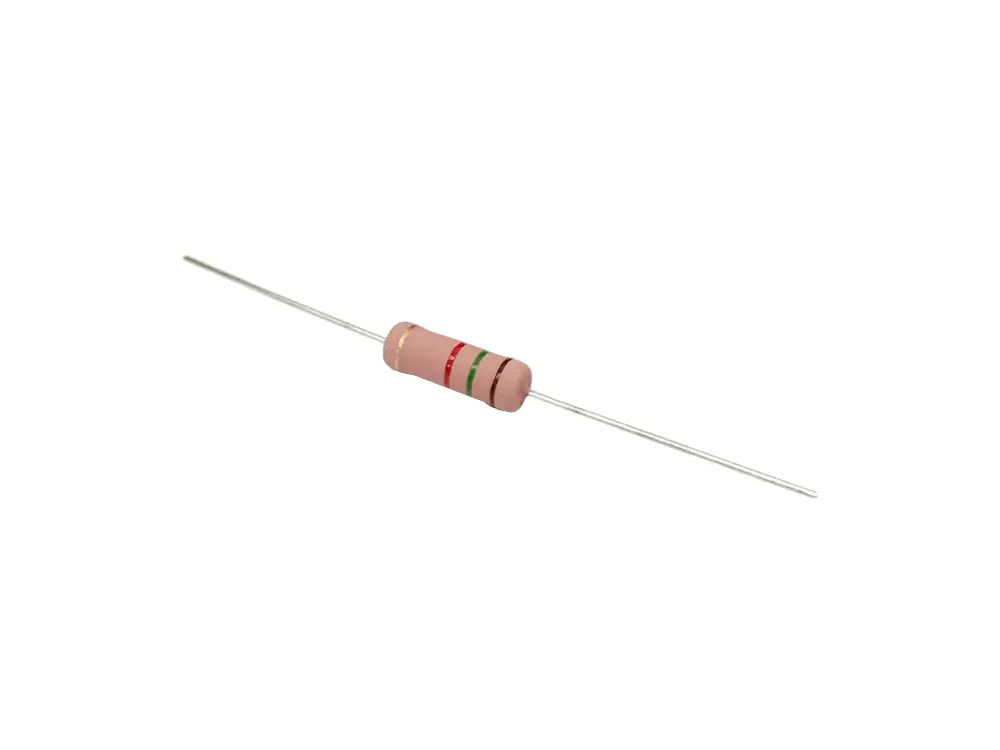

Resistor Metaloxide 5 Watts / 1,5 kOhms / Small Size

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Size: M4
• Toothed bottom
• Material: spring steel
• Pack of 10

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

• Material: Steel
• Strength class: 8
• Surface: Zinc-plated
• DIN: 985
• ISO: 10511
• Price: Pack with 100 pcs.

• Material: Steel
• Strength class: 8
• Surface: Zinc-plated
• DIN: 985
• ISO: 10511
• Price: Pack with 100 pcs.

Terminal lock washer lug for M4 screws.

• Material: Brass
• Contact Finish: Tin
• Pack of 10

• Size: M5
• Toothed bottom
• Material: spring steel
• Pack of 10

• Type: Electrolytic can capacitor
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 16 mm x 32 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 6 mm x 11 mm
• Termination Style: radial
• Grid: 2,5

Images are for reference only. See Product Specifications

• Termination Style: Axial
• Resistance: 100 Ohms
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:    –40 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,25 mm²
• Outer Diameter: 1.6 mm
• Stranded wire structure: tinned copper

Red Nylon Nut for Cliff S2 Jacks

• CL1160
• CL1166
• CL1220
• CL1239
