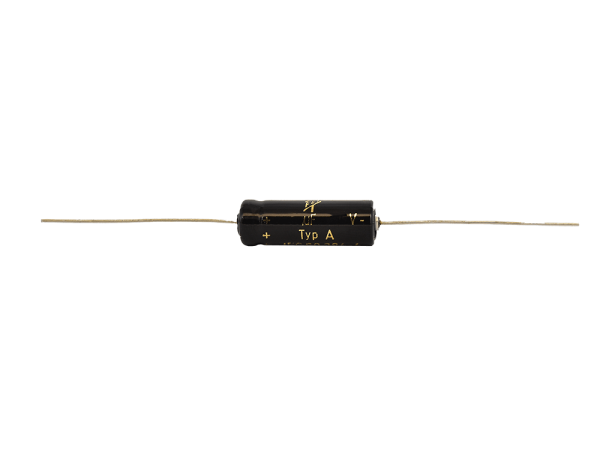

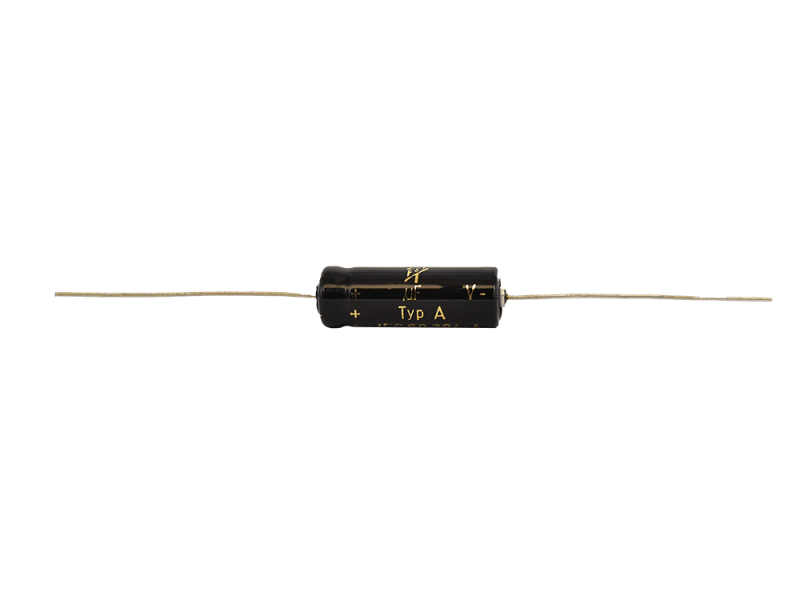

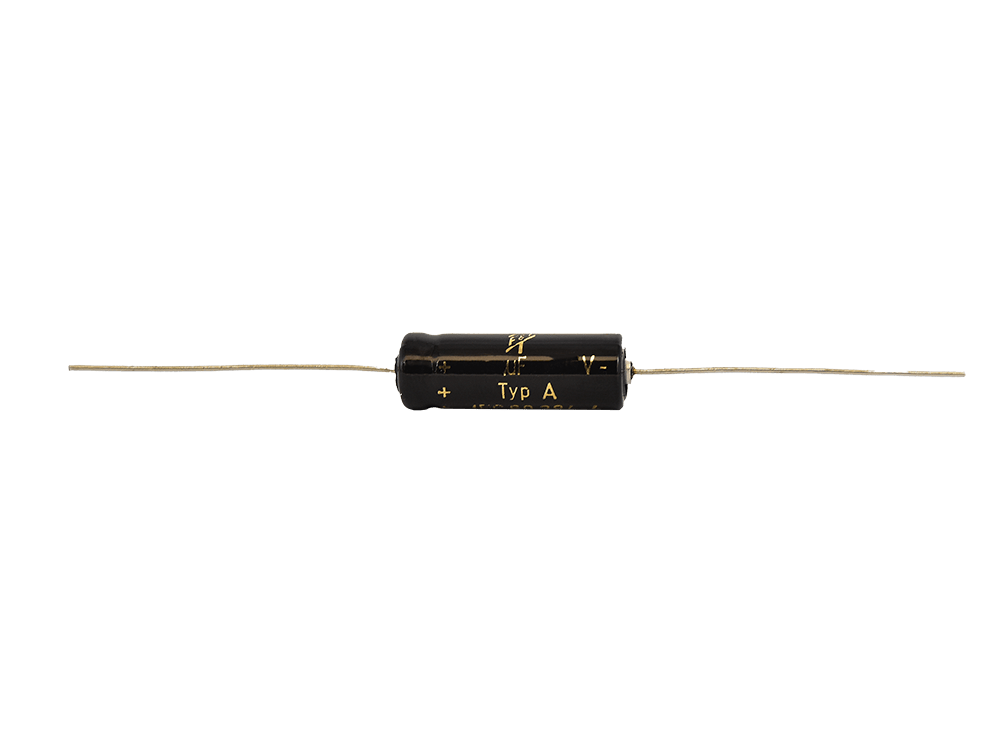

F+T 10 µF @ 100 Volt, axial

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

Mullard reincarnated. With the new EL34EH, Marshall amp owners can recreate the balanced tone, deep, tight bass, sweet mids, and well-defined highs of the original equipment Mullards. Innovative design and precision construction give the EL34EH exceptionally smooth and an ideal balance of pleasing even-order harmonics while virtually eliminating undesirable odd-order harmonics.

EH EL34 - #05

• Recommended for Mesa Amps
• Price for one tube

If you order more than one tube they will automatically be matched.

FAQ: If I order two or more of these tubes, are they all "matched"?
Yes, the tubes are all "matched" and selected for the above amplifiers.

FAQ: Can I change the tubes myself or does anything need to be adjusted?
Adjustment work is not possible on the above amplifiers (unless a bias adjustment has been retrofitted). The exchange can therefore be done without any adjustment or measurement work.

Files:

• Datasheet

Panel Mount Potentiometer - 3/8" - Stereo

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm
• >

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 16 mm x 25 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 8 mm x 11 mm
• Termination Style: radial
• Grid: 3,5

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 4700 µF
• Voltage Rating: 16 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 30 mm
• Termination Style: axial

Images are for reference only. See Product Specifications
