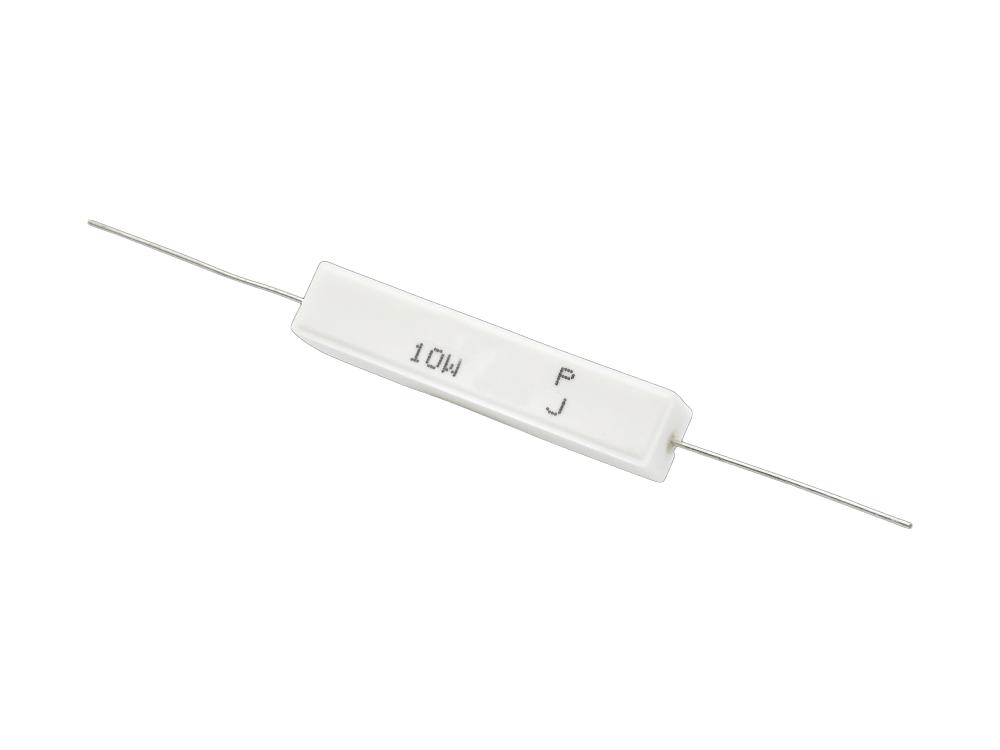

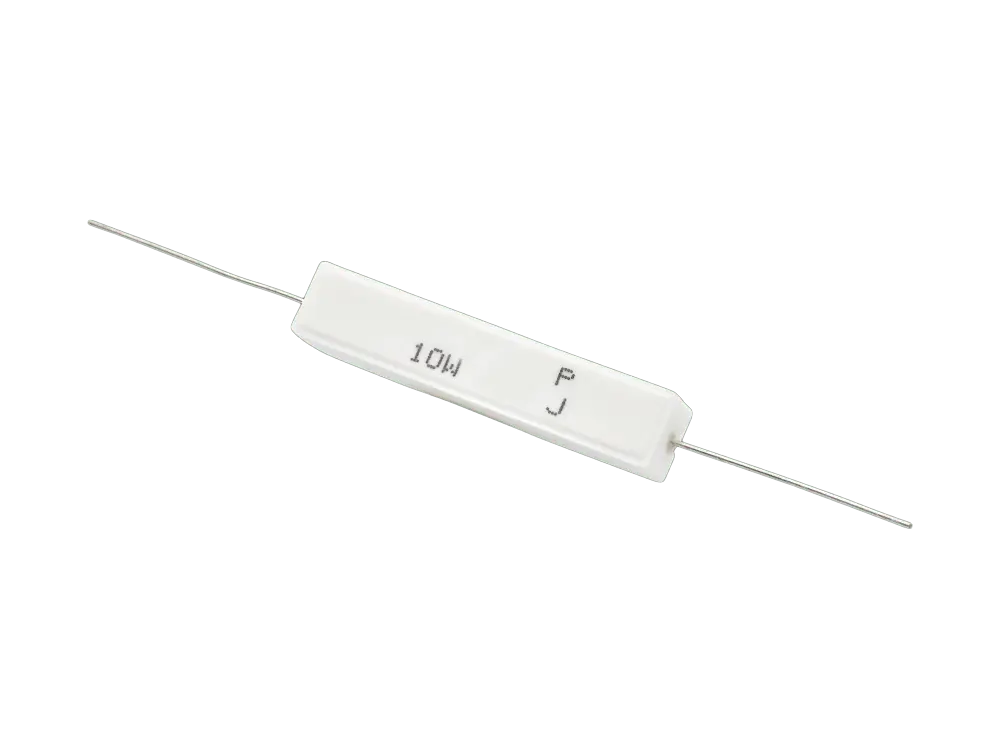

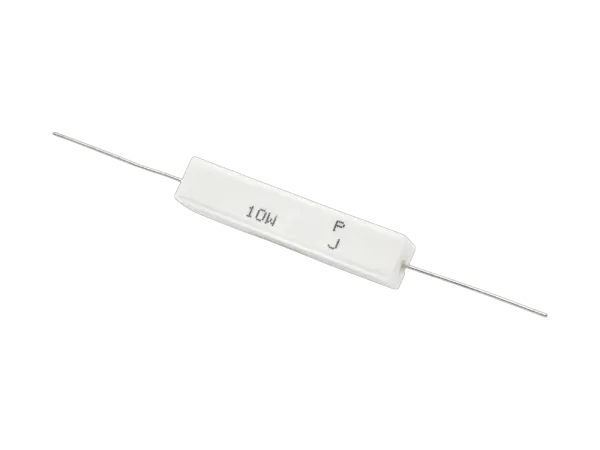

Powerresistor 100R / 10 Watt, axial

Product No.:: rxi-100R-10-a
: In stock. Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.01 kg per piece

0,75 €

incl. VAT excl. Shipping costs

piece:

Quantity

Bookmark

Ask Question

Description

High Power Resistor
10W 5% High Ohm Cement Power Resistors
Size: 49 x 10 x 9 mm
RoHS Compliant
