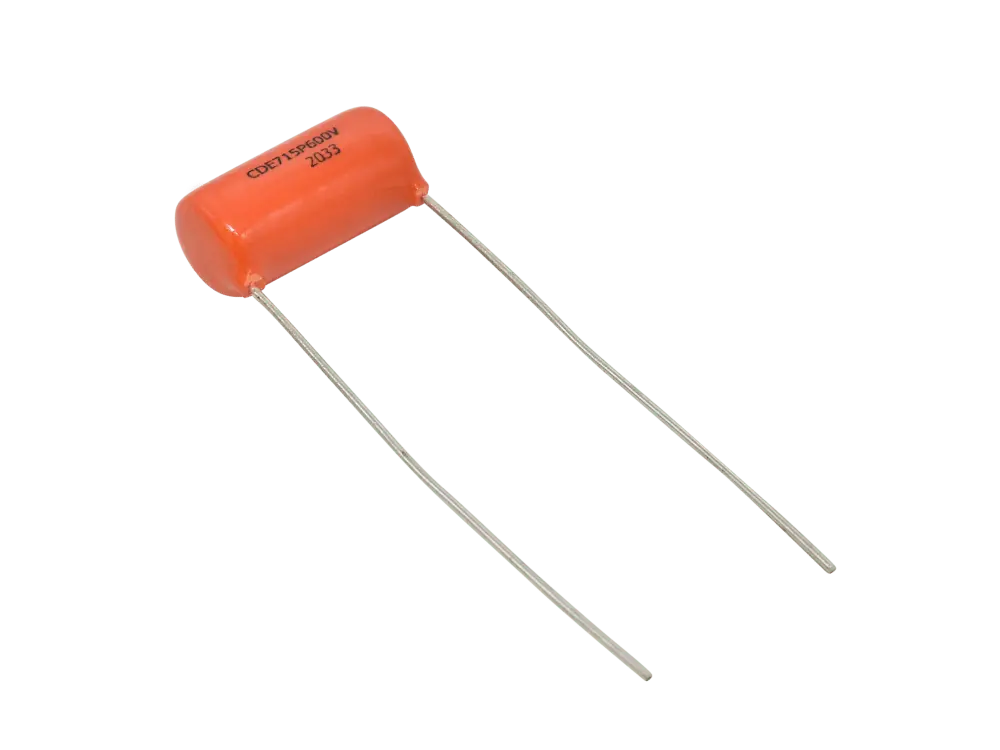

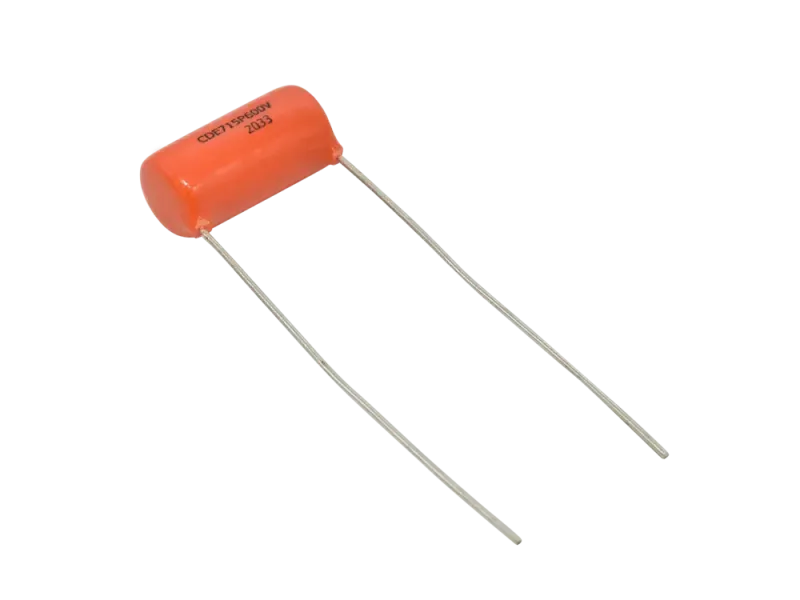

Orange Drop 0,0022 µF @ 600 V

Description

ORANGE DROP®, Low Loss

Type: Polypropylene Film Capacitors
Voltage Rating: 600 V
Tolerance: - 10 % / +10 %
Operating Temperature Range: - 55°C / + 85 °C
Termination Style: radial

Documents

Orange Drops 715 Series (143.88 KB)

Orange Drops 715P Serie Datasheet (456.1 KB)
