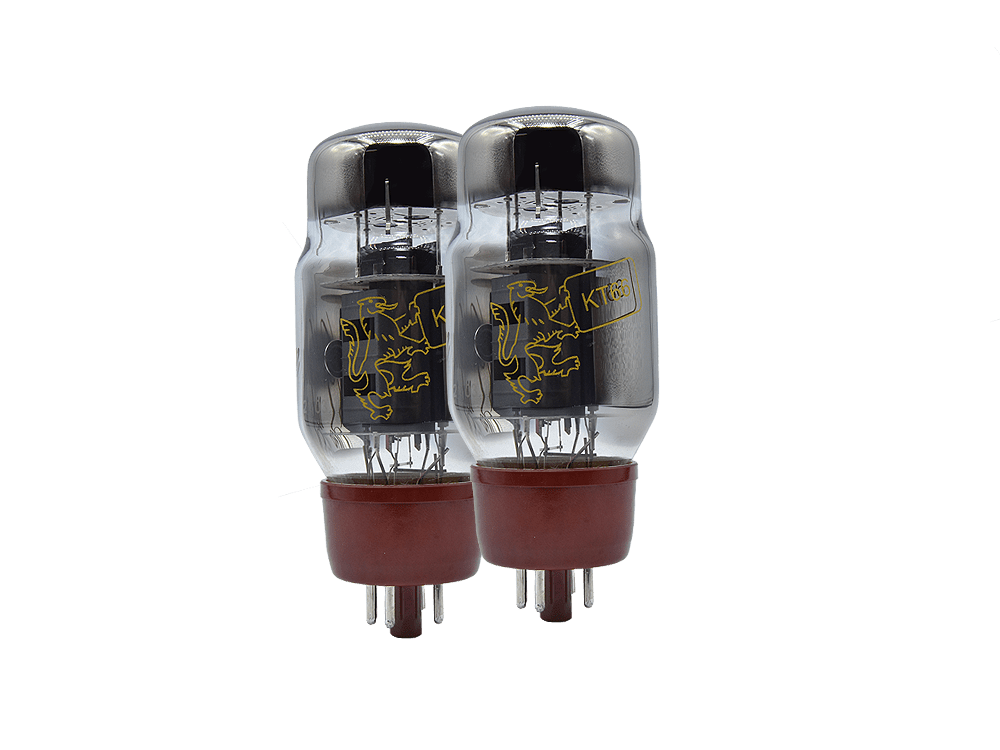

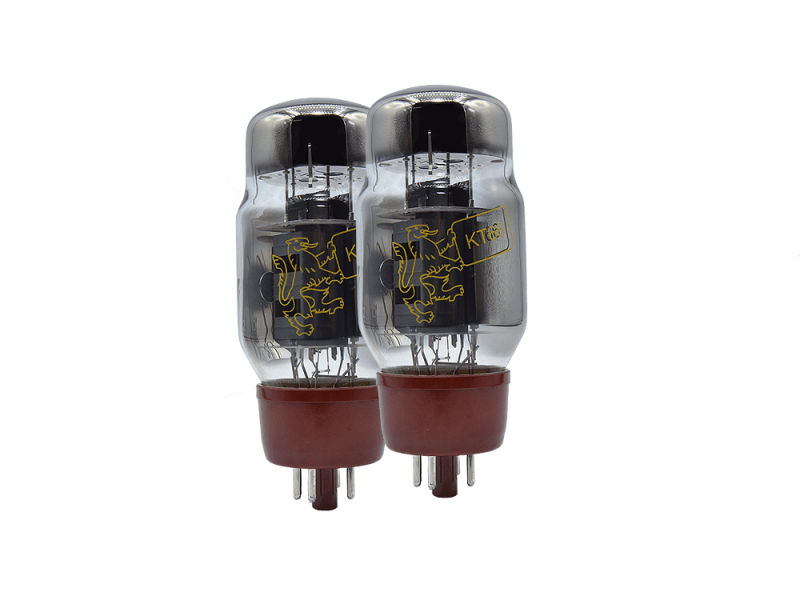

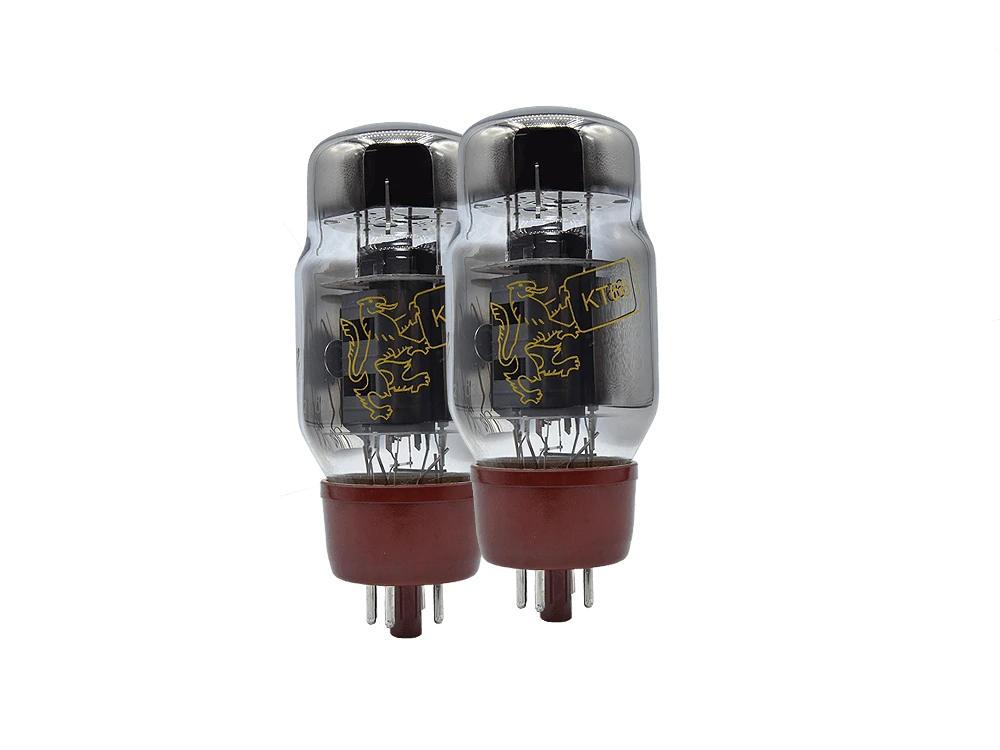

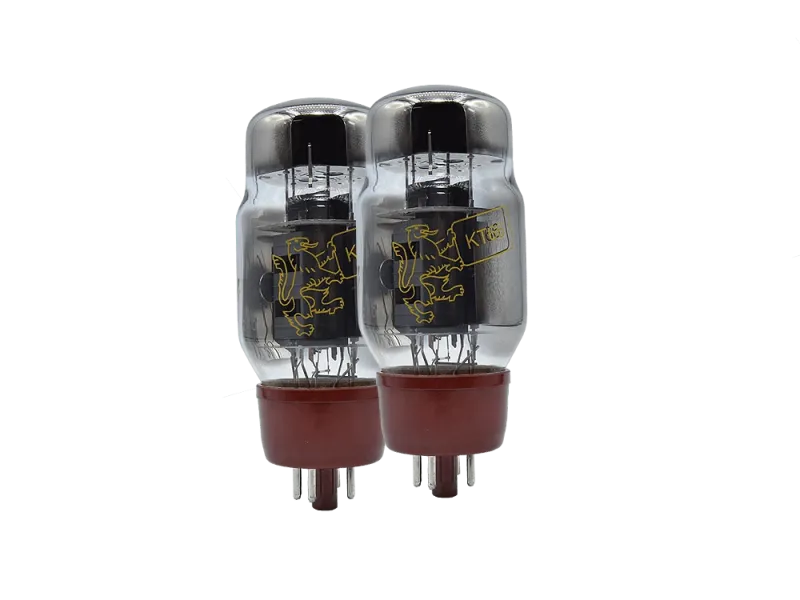

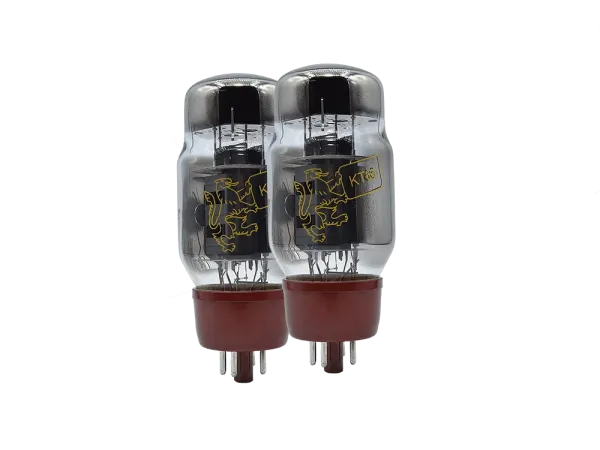

Genalex Gold Lion KT66 Reissue - PAIR

Product No.:: genkt66-pair
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: 2 Pair
RoHs:: conform
Weight:: 0.6 kg per Pair

109,00 €
54,50 € per Piece

incl. VAT excl. Shipping costs

Pair:

Quantity

Bookmark

Ask Question

Description

2 tubes, matched as pair

Super Premium power beam tetrode & exact copy of the original clear glass KT66, used in the early Marshall amps which created Eric Clapton’s “Bluesbreaker" Tone.” Full sound with improved bass response and shimmering top-end.

• Originally a British equivalent to 6L6 and a mainstay of the British hi-fi industry
• Used in 50’s-60’s hi-fi favorites such as the Heath W-5M and many Leak amplifiers

To be labeled Genalex Gold Lion, tubes must endure and pass the toughest testing the industry offers.

Manufacturer

Herstellerinformationen | Manufacturer Information

New Sensor Corporation, 32-33 47th Avenue, Long Island City, NY 11101, USA

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.

Customers who bought this product bought also the following products:

Bias-Probe Octal, KIT

Kit of a bias probe for indirect measurement of the quiescent bias current of a tube. The adapter is placed between the tube and the socket and is connected to a standard voltmeter (not included). Pay attention to the quality of the meter and to sufficiently charged batteries!

The quiescent current is measured indirectly via a precision resistor built into the adapter. The advantages of this measuring method are harmless voltages in the mV range at the measuring plugs as well as short ways for the current, since it does not have to be led through the measuring device (common practice with many measuring adapters of Far Eastern production). As a result, there is no risk of oscillation of the amplifier, which could damage the tubes or the amplifier itself.

Note: This adapter cannot be used when additional tube brackets are installed. These must be removed before using the measurement adapter and reattached after the measurement is complete.

Measurement procedure
Determine the resistance of the adapter, including the test leads. Connect the adapter to the meter, but do not connect it between the tubes and the amplifier. Select the ohms range on the meter and note the reading, e.g. 1.1 ohms.
For the final measurement, insert the adapter between the tube and the de-energized amplifier, connect it to the meter, select the mV range and switch on the amplifier. When the amplifier has reached a stable operating condition, read the value in mV from the meter and calculate the quiescent current using Ohm's law.

Example
Measured voltage = 47 mV, adapter resistance = 1.1 ohms.
Formula (I = V / R) or in this case
Bias Current (in A) = Measured Value (Voltage in V) / Measured Value (Resistance in Ohm)
0.047V / 1.1 Ohm = 0.042A or 42mA

For the calculation of the correct bias current as well as further information on bias measurement please refer to further documents or the bias setting instructions in the info section as well as the manual of the amplifier itself.
This adapter is suitable for all EL34, 6L6, 6550, KT88, 6V6, 6CA7 and other tubes with the same pinout.

Attention HIGH VOLTAGE ! Measurements and work on tube amplifiers should only be done by qualified personnel.

Files:

Datasheet

15,10 €
