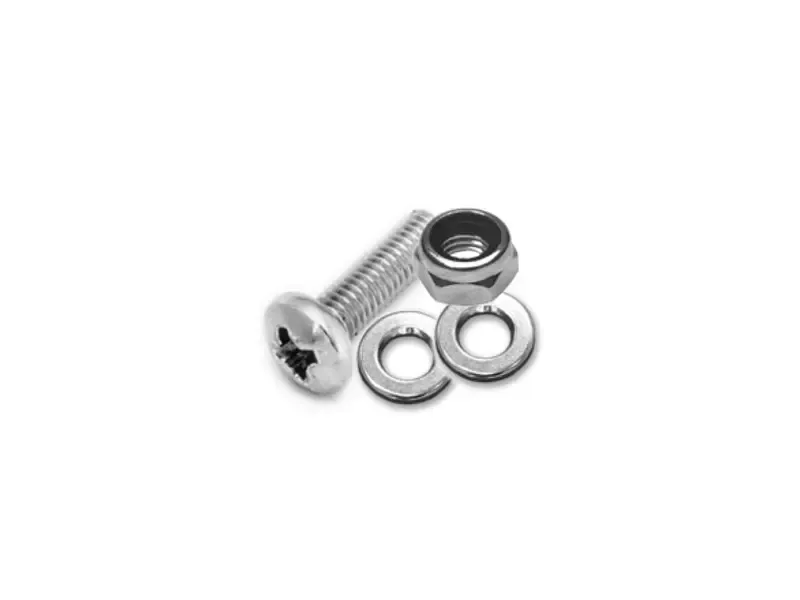

Fixing screw set for Torodial-Transformers, M5*50 mm

• Pri: 0-115-220-230-240 V (schwarz-grün-gelb-lila-rot / black-green-yellow-purple-red)
• Sec1: 300 V @ 0,1 A (rot / red)
• Sec2: 6,3 V @ 2 A (grün / green)
• Sec3: 12,6 V @ 1 A (blau / blue)
• long leads ca 200 mm
• Size ca. h=38mm d=90mm
• 50/60 Hz EN 61558

This transformer has the same spec as the Marshall Plexi/JCM800 50 Watts Powertransformer but as torodial version.

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1: 345-0-345 V @ 0,15 A (red-green/white-blue)
• Sec 2: 3,15-0-3,15 V @ 5 A (black-black/purple-purple)
• long leads ca. 200 mm
• Size: 105 x 55 mm
• Possible Connections:
  • 0-345 V (parallel): red@white - green|blue
  • 0-690 V (series): red-green|white-blue
  • 345-0-345 (with Centertab): red-CT:green|white-blue

• Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
• Sec 1: 0 - 300 V @ 0,15 A (grün-rot / green-red)
• Sec 2: 0 - 300 V @ 0,15 A (weiß-blau / white-blue)
• Sec 3: 50 V @ 0,05 A (orange)
• Sec 4: 5 V @ 3 A (braun/brown)
• Sec 5: 6,3 V @ 5 A (schwarz/black)
• freie Enden / long leads 250 mm
• Größe / Size: 115 * 45 mm
• EN 61558 50/60 Hz

• Pri: 0-220-230-240 (yellow-blue-brown-black)
• Sec 1: 360 V @ 0,3 A (red)
• Sec 2: 100 V @ 0,05 A (orange)
• Sec 3: 6,3 V @ 7 A (black)
• Sec 4: 15 V @ 1 A (green)
• long leads
• Size: 115 x 55 mm
• ta 40  50/60Hz
• EN 61558

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 6 mm x 10 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 470 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 4,7 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 100 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 19 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

JJ 6L6 - #16 - Mesa RED

• Corresponds to Mesa Color Code RED
• Price for one tube

FAQ: If I order two or more of these tubes, are they all "matched"?
Yes, the tubes are all "matched" and selected for the above amplifiers.

FAQ: Can I change the tubes myself or does anything need to be adjusted?
Adjustment work is not possible on the above amplifiers (unless a bias adjustment has been retrofitted). The exchange can therefore be done without any adjustment or measurement work.

Files:

• Datasheet

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm
