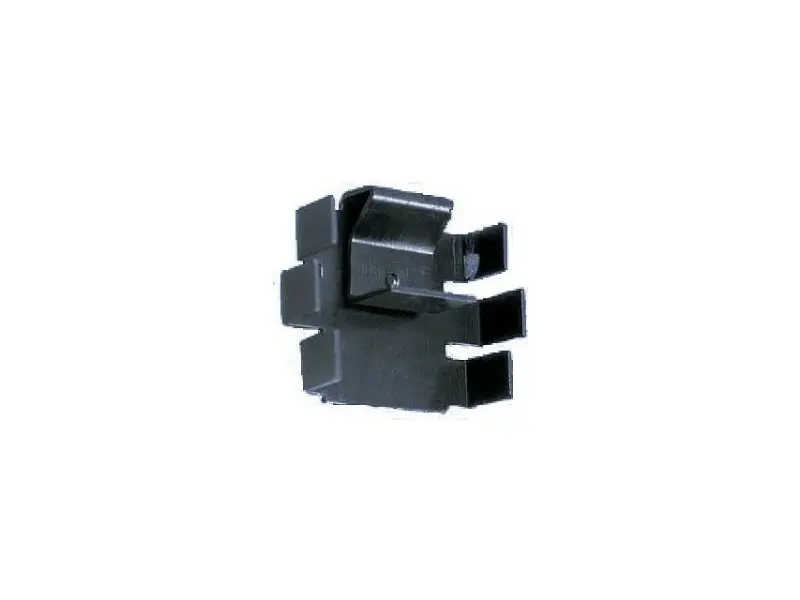

Heat Sink TO220, black 27 K/Wm

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm

Copper Stranded Wire Insulated, 10m, Black

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Power Supply chassis Socket,  with break contact and solder eyes, for front side mounting

• Diameter opening: 6,3 mm
• Diameter center pin: 1,9 mm
• Rated current: 0,5 A @ 12 V DC
• Isulation resistance: > 100 M Ohm

Universal kit for a small extra power supply which can be used i.e. for switching tasks, relays, optocoupler, LEDs, etc.

• Input Voltage: 230 VAC
• Output Voltage: 6 VDC
• Maximum Output Current: 333 mA

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm
