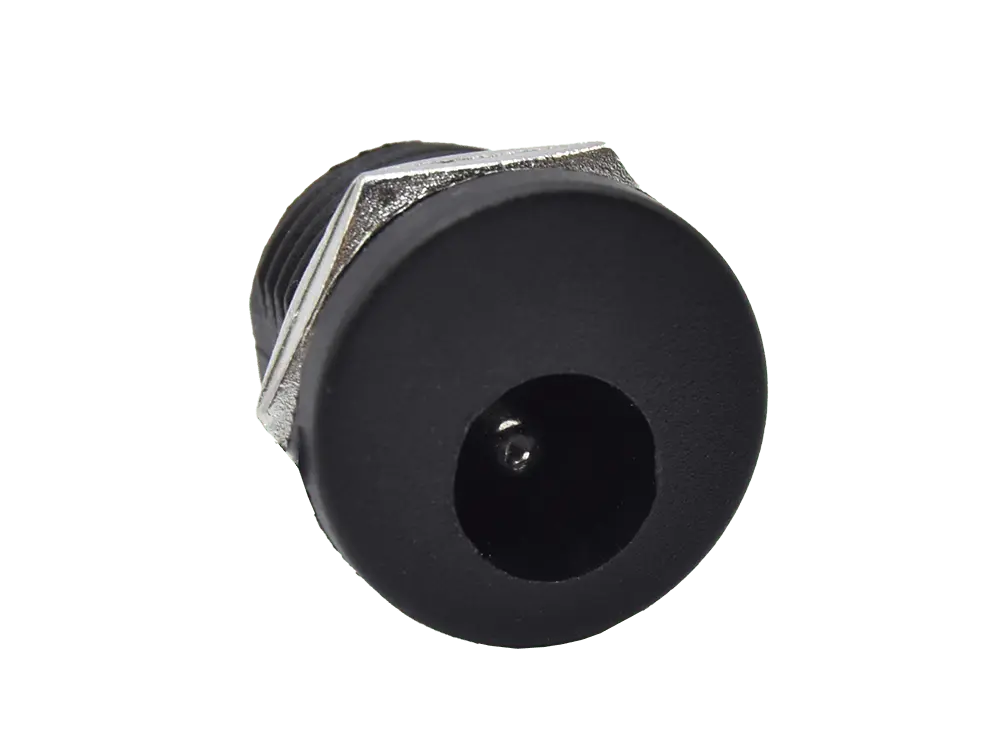

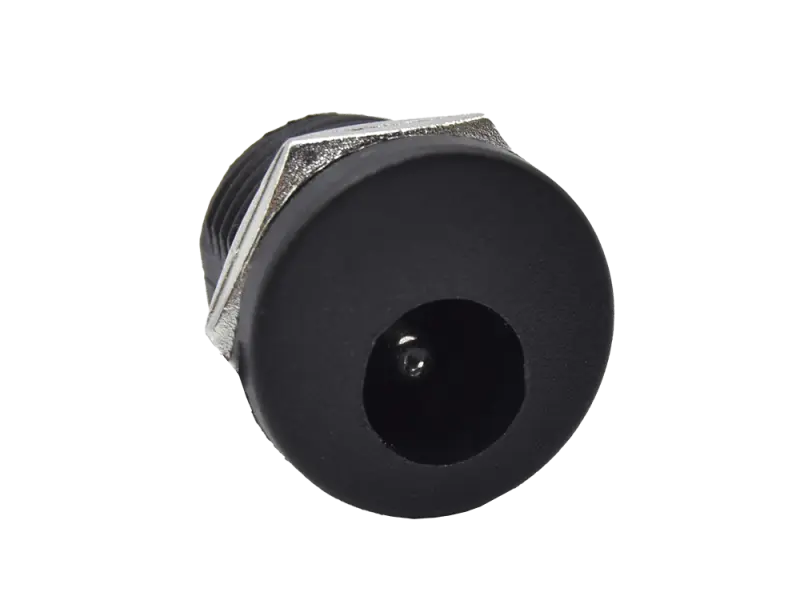

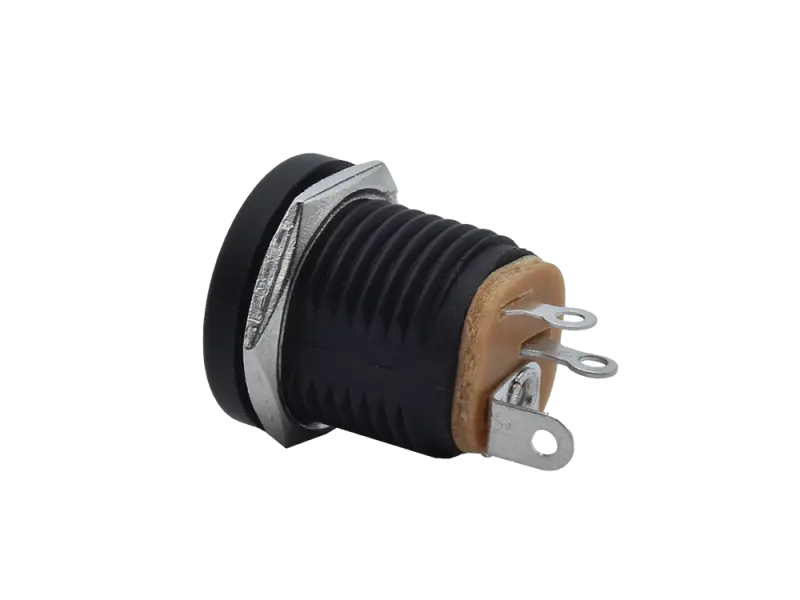

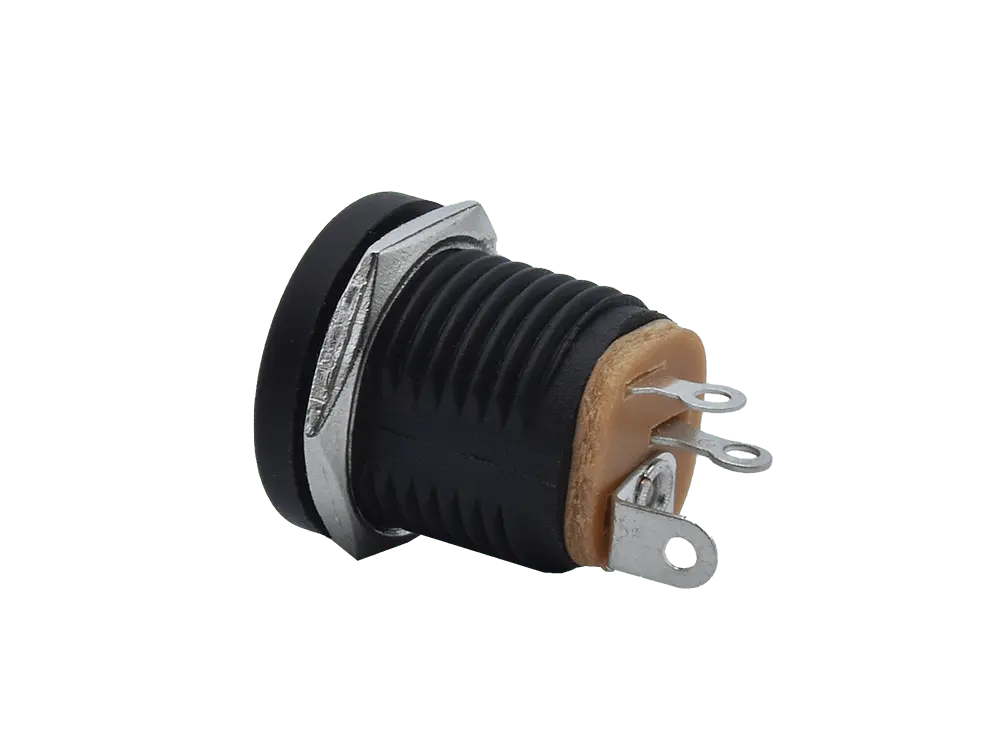

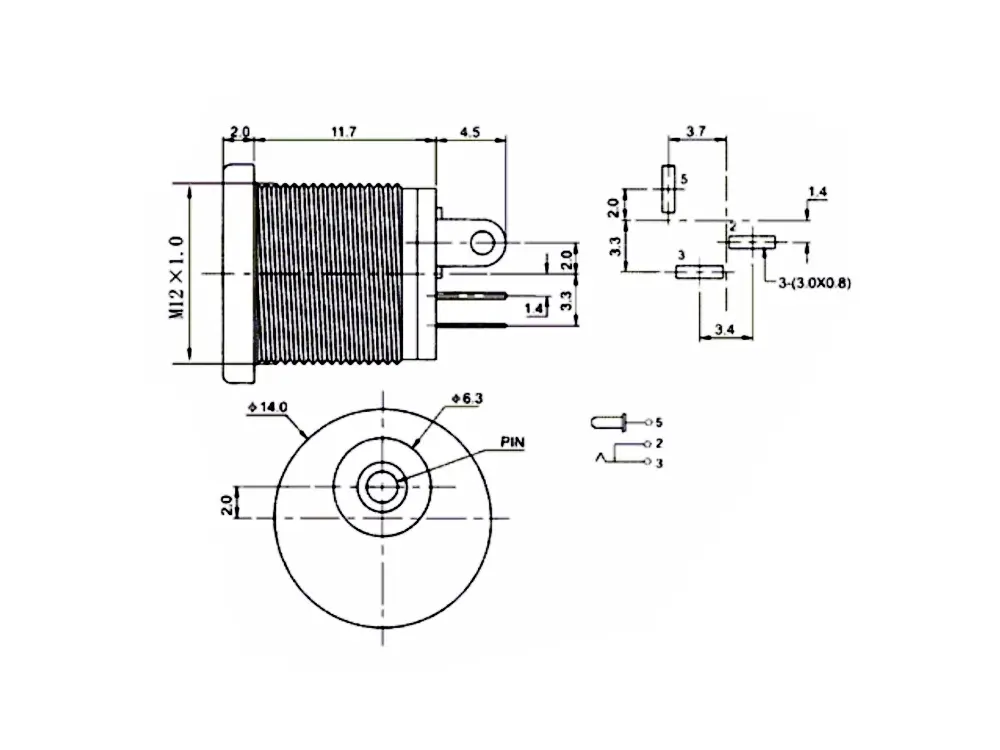

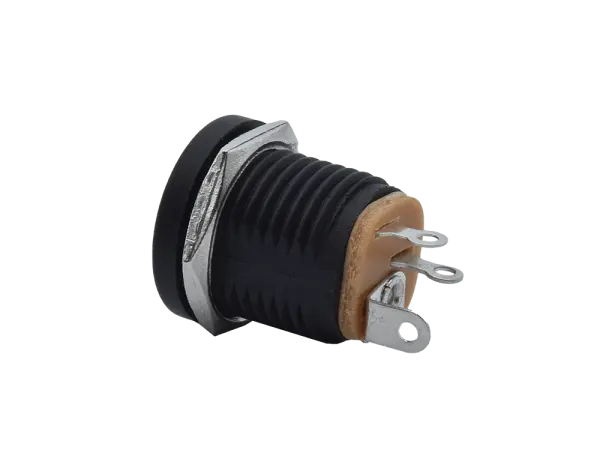

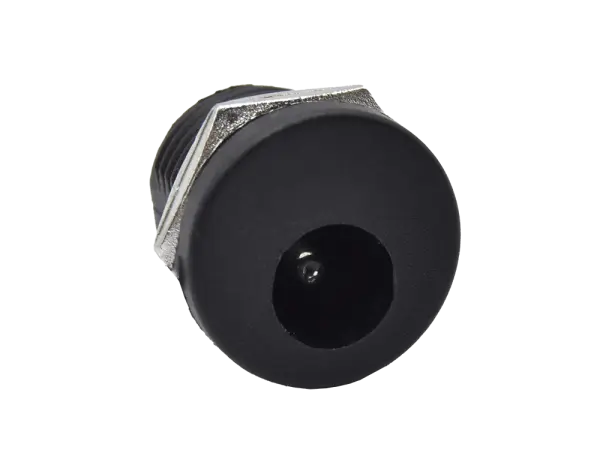

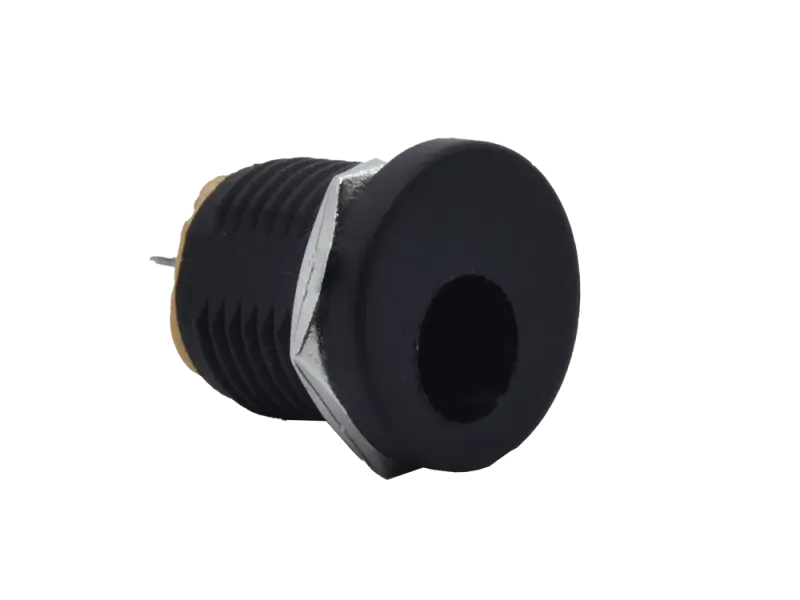

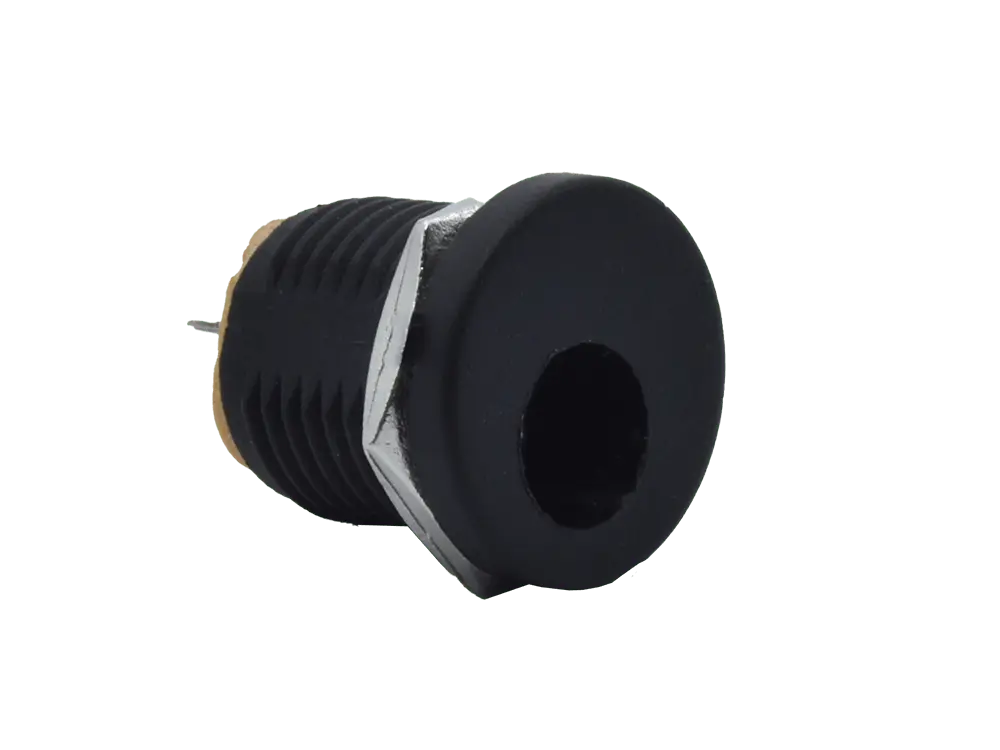

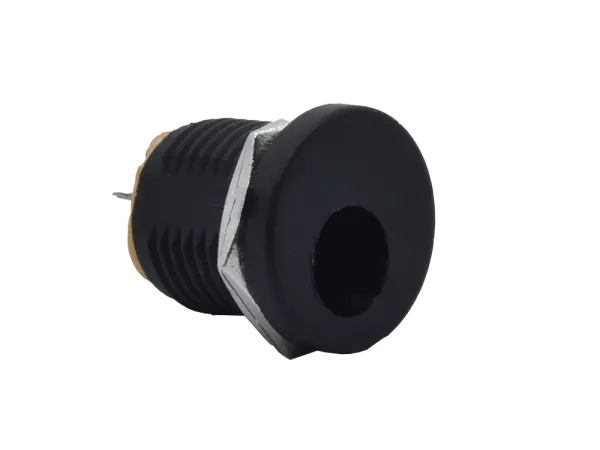

DC Power Jack, Frontpanel mount, 5,5 x 2,1 mm

A classic treble booster for guitar in the style of the Rangemaster.

The booster is build on our universal STOMP-board, it is simple and easy for beginners, too.
Please visit the >>STOMP-Project Pages for more information about this kit.

The kit includes all basic parts needed to build the booster like resistors, capacitors, potentiometers, wire, PCB board.

The partes listed below are NOT INCLUDED and you need to order them separately if you do not have them already:

• knob
• chassis
• footswitch
• faceplate or lables

Please check the tab "recommended accesoires" for matching components

• Operation Voltage: 5 V
• Angle of radiation: 60 °
• Current: 13 mA
• Luminous intensity: 30 mcd
• Wavelength: 625 nm
• Size: 5 mm
• Color: red
• Lens: red

Mixed sizes and colors, length 10 cm / ea

• 30 x 1,5mm Ø
• 30 x 2,5mm Ø
• 20 x 4mm Ø
• 10 x 6mm Ø
• 6 x 10mm Ø
• 4 x 13mm Ø

In plastic box

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Total Resistance Tolerance: +/- 20%
• Rated Power
  • B/Lin Taper: 0,125 W
  • A/Log Taper: 0,1 W
• Max. Operating Voltage
  • B/Lin Taper: 150 V AC
  • A/Log Taper: 150V AC
• Noise: 47 mV max.
• Insulation Resistance: 500 V DC 1000MOhm
• Withstand Voltage: 1 minute 500 V AC
• Rotational Life: 15000 Cycles

• Shaft Diameter 6 mm
• Shaft Type: Split Shaft
• Shaft Length: ca. 9 mm
• Bushing Length: 6,5 mm
• Body Diameter: 16 mm
• Connectors: Solder Lugs
• Total Rotational Angle: 300° +/- 5°
• Rotational Torque: 30~200gf.cm
• Solder Heat Resistance: 300°C, 3 S

• Shaft: Cast Iron (Aluminium Zinc)
• Bushing Material: Cast Iron

• For 5 mm LED
• Chassis cut-out: Ø 8 mm
• Material: Polycarbonat
• Colour: black

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS
