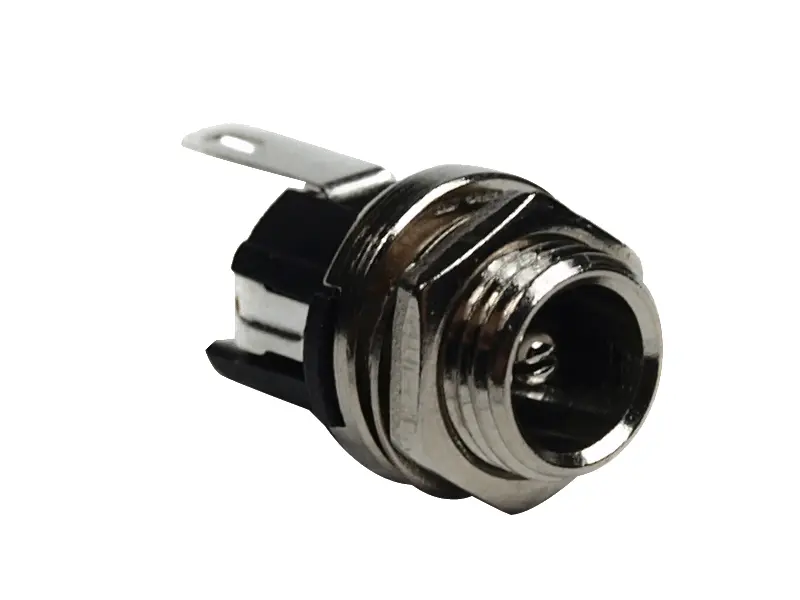

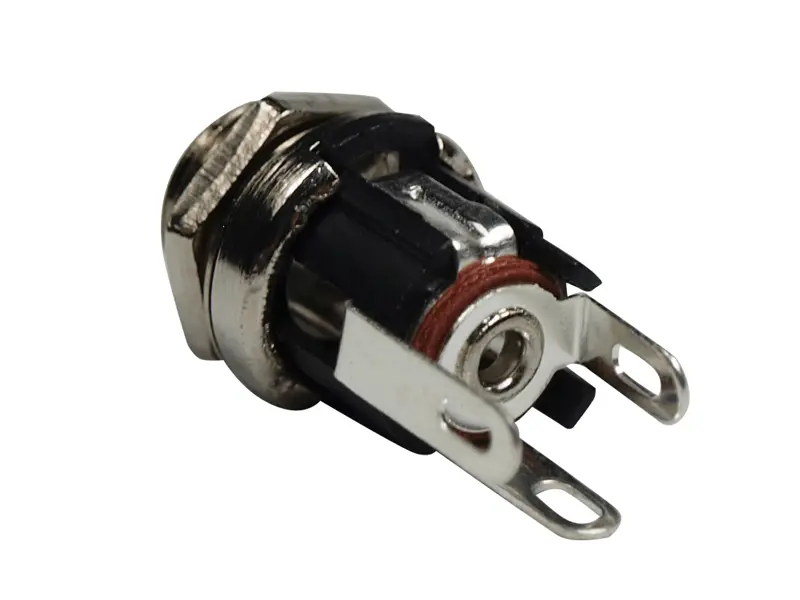

DC Jack 2.1 mm

Fender® HotRod Deluxe Potentiometer
Fender# 004-1510-000

65 Twin Reverb Potentiometer
Fender®  Part # 003-7599-000

Fender® HotRod Deluxe Potentiometer
Fender#  004-7540-000

Fender® HotRod Deluxe Potentiometer
Fender®  Part # 003-7597-000

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

4 tubes, matched as quad

The Sovtek EL84 series produces an unbeatable smooth, warm distortion sound. Excellent replacements in vintage VOX AC-30's and the like, very popular in Fender, Crate and Peavey amps.
