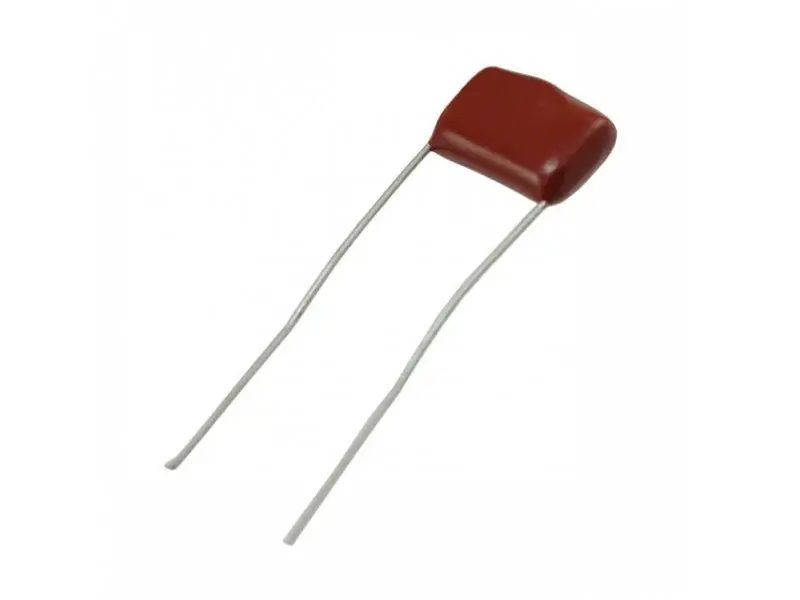

CD DME Polyester Film 0,0022 µF / 630 V

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Dissimilar twin triode preamplifier tube used in vintage Ampeg amplifiers. This tube is 1/2 12AX7 and 1/2 12AU7.

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Technical Data:

• Primary Imp.: 4.4 kOhm
• Primary Ind.: 44 H
• Secondary: 4,8 and 16 Ohm
• Power: 50 Watt

Files:

• Datasheet

• Primary: 115, 220, 230 & 240 V @ 50/60 Hz
• Sec. 1: 720 V C.T. @ 200 mA, 60 V Bias Tap
• Sec. 2: 6,3 V C.T. @ 6 A
• Sec. 3: 6,3 V C.T. @ 3 A

Files:

• Datasheet

• Inductance (+/- 15%): 7 H
• Resistance (+/- 15%): 100 Ohm
• max Current DC: 150 mA
• max Voltage DC: 500 V
• Leads: min 12 cm
• Hipot tested (100%) mit 1500 VAC

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

Retainer for EL34 / 6L6 Tubes
