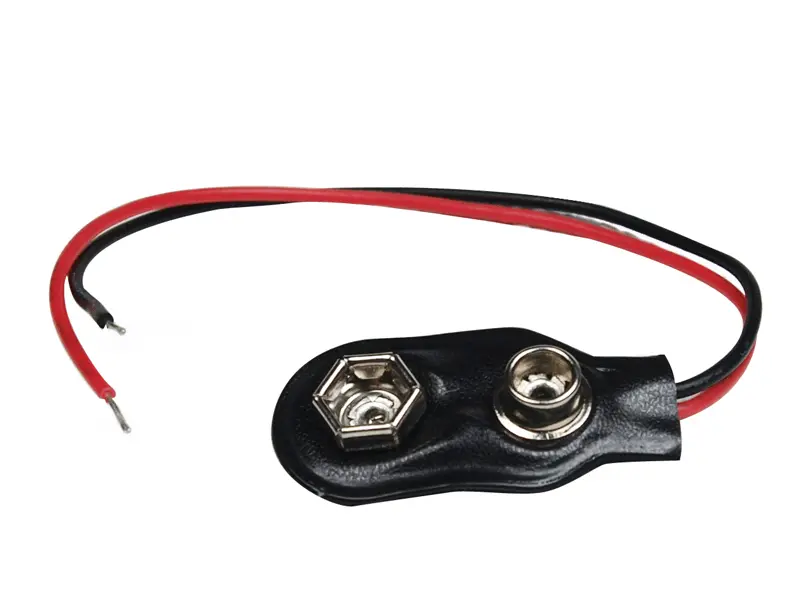

Battery Clip 9 V

A classic treble booster for guitar in the style of the Rangemaster.

The booster is build on our universal STOMP-board, it is simple and easy for beginners, too.
Please visit the >>STOMP-Project Pages for more information about this kit.

The kit includes all basic parts needed to build the booster like resistors, capacitors, potentiometers, wire, PCB board.

The partes listed below are NOT INCLUDED and you need to order them separately if you do not have them already:

• knob
• chassis
• footswitch
• faceplate or lables

Please check the tab "recommended accesoires" for matching components

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Total Resistance Tolerance: +/- 20%
• Rated Power
  • B/Lin Taper: 0,125 W
  • A/Log Taper: 0,1 W
• Max. Operating Voltage
  • B/Lin Taper: 150 V AC
  • A/Log Taper: 150V AC
• Noise: 47 mV max.
• Insulation Resistance: 500 V DC 1000MOhm
• Withstand Voltage: 1 minute 500 V AC
• Rotational Life: 15000 Cycles

• Shaft Diameter 6 mm
• Shaft Type: Split Shaft
• Shaft Length: ca. 9 mm
• Bushing Length: 6,5 mm
• Body Diameter: 16 mm
• Connectors: Solder Lugs
• Total Rotational Angle: 300° +/- 5°
• Rotational Torque: 30~200gf.cm
• Solder Heat Resistance: 300°C, 3 S

• Shaft: Cast Iron (Aluminium Zinc)
• Bushing Material: Cast Iron

Vishay ORANGE DROP® 225P

• Type:  Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Size: 6.3 mm 1/4"
• Poles: 3-pole, stereo
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 6,3 mm x 32 mm
• Pack of 10

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years
